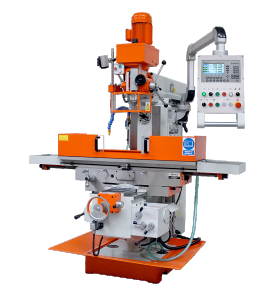

EUROMET FW40S production milling and drilling machine

81 033,75 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

EUROMET FW40S production milling and drilling machine, semi-automatic, equipped with a vertical torsion spindle with an extendable quill, smoothly adjustable vertical spindle speed, horizontal spindle speed regulated by a gear gear. A table with dimensions of 1650x660 [mm].

Quantity
Add to cart

EUROMET FW40S production milling and drilling machine, semi-automatic, equipped with a vertical torsion spindle with an extendable quill, smoothly adjustable vertical spindle speed, horizontal spindle speed regulated by a gear gear. A table with dimensions of 1650x660 [mm]. Table feeds in 3 axes provided by a servomotor made by the Japanese company Yakasawa. The control panel allows you to easily adjust the feeds, rotational speed of the vertical spindle and read the current position of the table through digital readings in 3 axes. The semi-automatic milling machine eliminates the need for mechanical setting of the feed ratios, which makes the operator's work more pleasant and faster, and thus more economical. The simplified transfer system makes the machine more reliable, and its possible repairs are faster, cheaper and easier.

Standard equipment:
  • worktable 1650 x 360mm
  • X / Y / Z axis travels - 1300 x 300 x 420mm
  • Yaskawa servo driven axes
  • stepless adjustment of the rotational speed of the vertical spindle
  • retractable quill for vertical spindle
  • digital readouts in 3 axes

Technical data Unit Value
Table dimensions (length) [mm] 1650
Table dimensions (width) [mm] 360
Table load capacity [kg] 400
Spindle taper [-] ISO 40/50
Accelerated feed X [mm/min] 3000
Accelerated feed Y [mm/min] 3000
Accelerated feed Z [mm/min] 1500
T-slots (No. x width x spacing) [mm] 3x14x95
Feed rate (X / Y / Z) [mm/min] 10-1000
Headstock motor power [kW] 3,7 / 7,5
Servo motor power (X / Y / Z) [mm] 1,8, 11.5N/m
Distance between the axis of rotation of the headstock to the column surface [mm] 150-550
The range of the rotation speed of the horizontal spindle [rpm/min] 58 - 1800
Rotational speed range of the vertical spindle [rpm/min] 58 - 4200
The tilt of the vertical spindle [°] +/- 45
Quill slide out [mm] 120
The distance from the surface of the working table to the ground [mm] 0-420
Device dimensions [mm] 2070x1930x2250
Machine weight [kg] 2800
