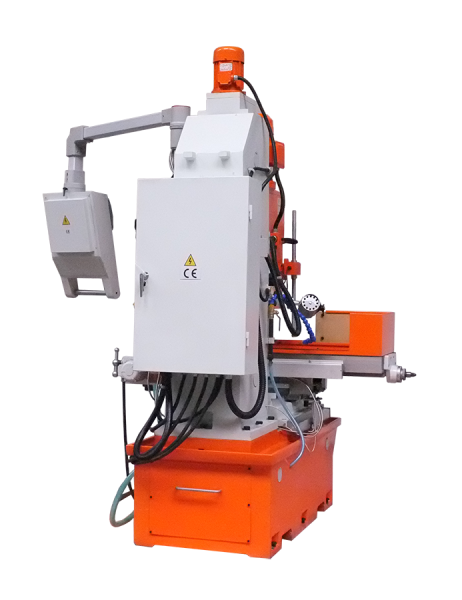

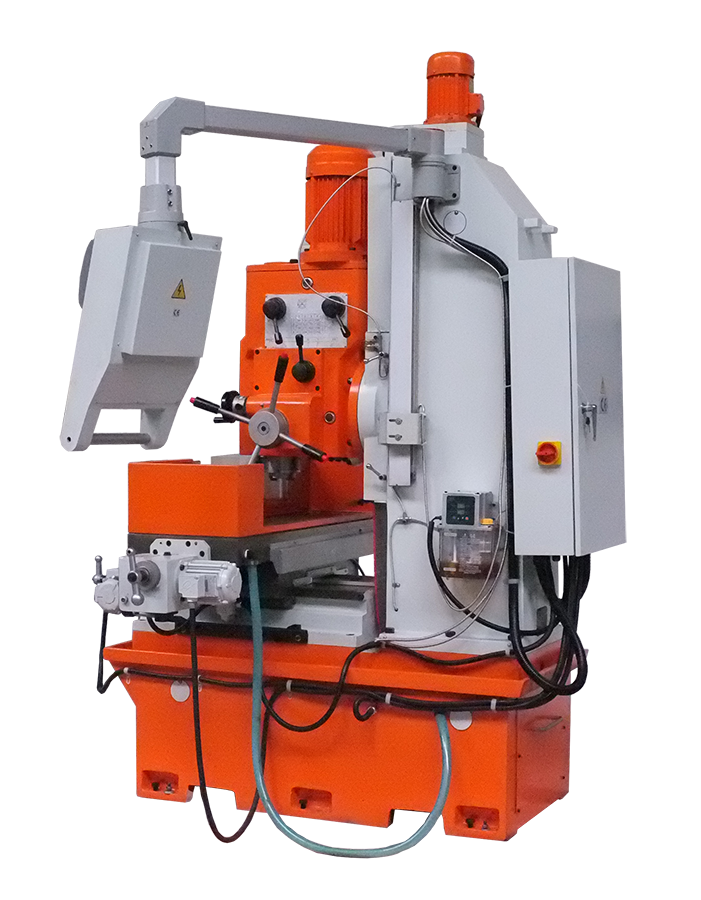

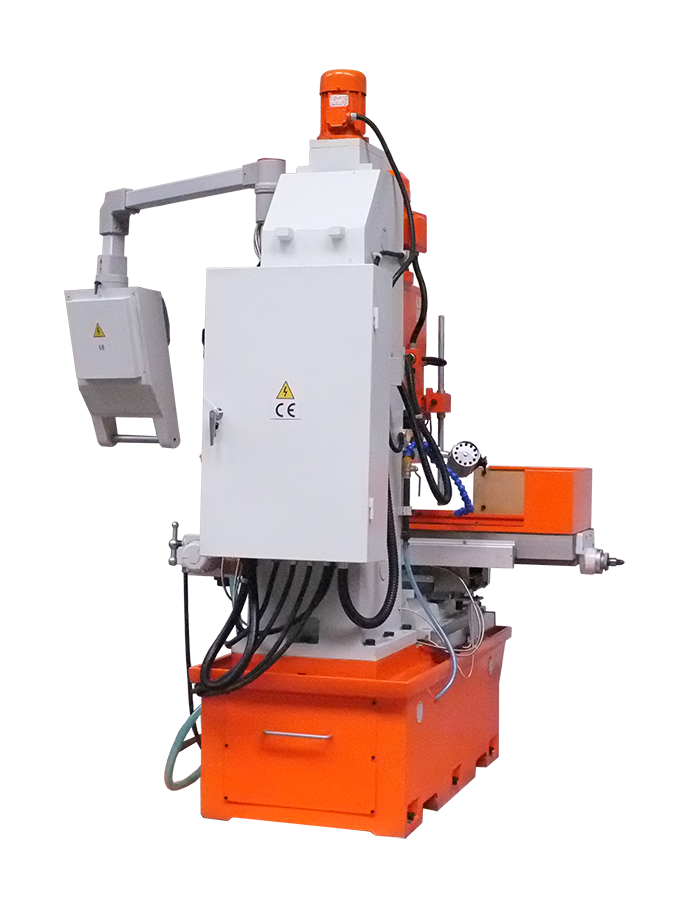

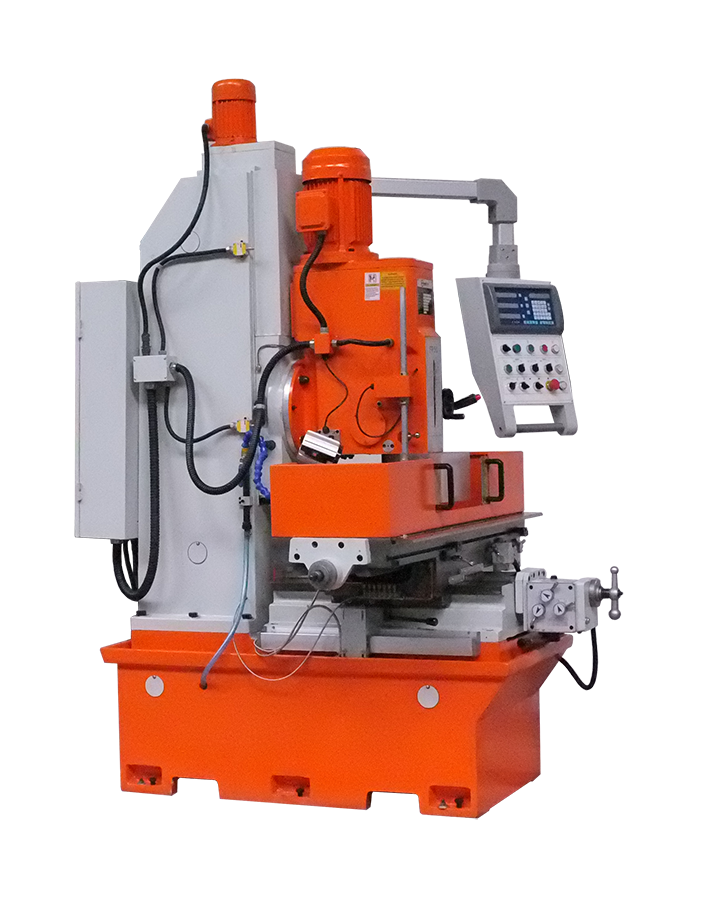

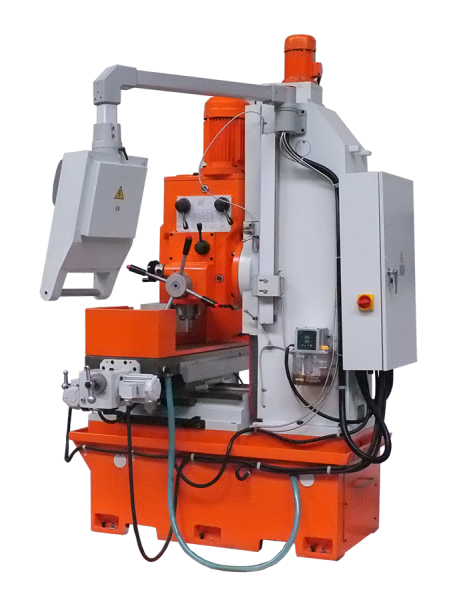

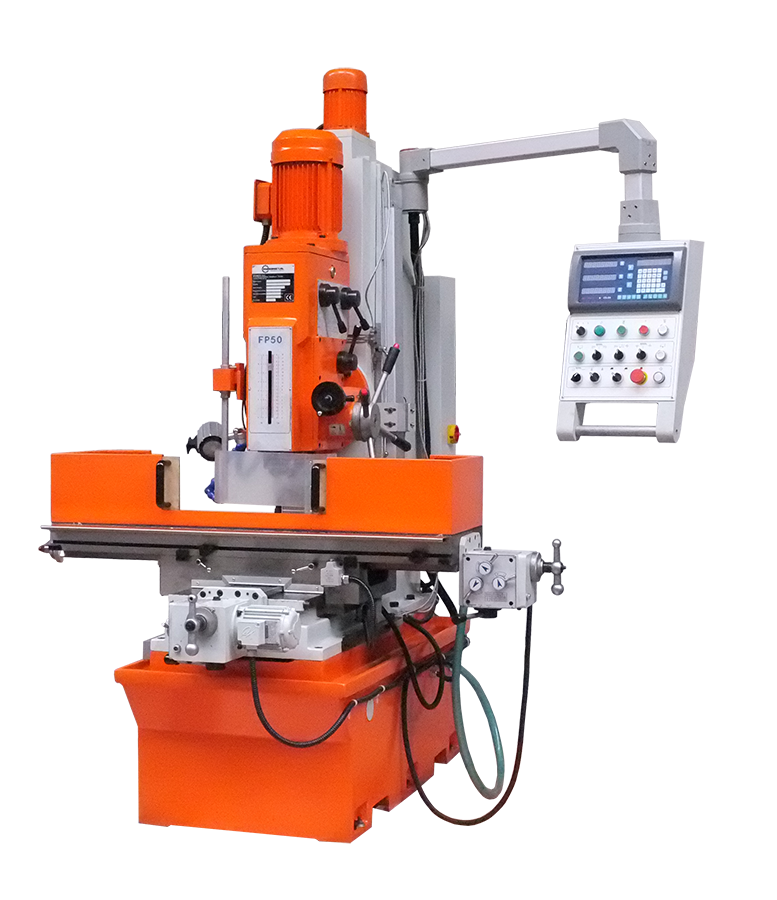

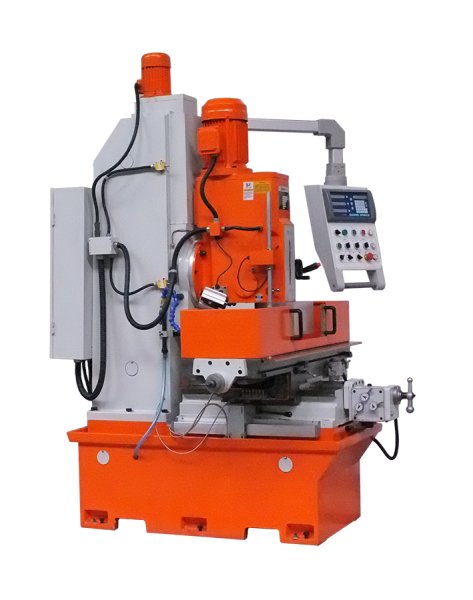

EUROMET FP50 milling and drilling machine
67 386,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
EUROMET FP50 milling and drilling machine equipped with a sliding headstock, tilting head and an extendable spindle quill. The machine is designed for milling, drilling, countersinking, boring, threading in production plants or tool shops.
Quantity
Add to cart
EUROMET FP50 milling and drilling machine equipped with a sliding headstock, tilting head and an extendable spindle quill. The machine is designed for milling, drilling, countersinking, boring, threading in production plants or tool shops. Prepared for machining heavy elements with high cutting parameters. The modern, proven design with wide rectangular guides of the table and the headstock ensure high rigidity and precision of work.
Standard equipment:
- X,Y automatic feed
- Automatic spindle feeds

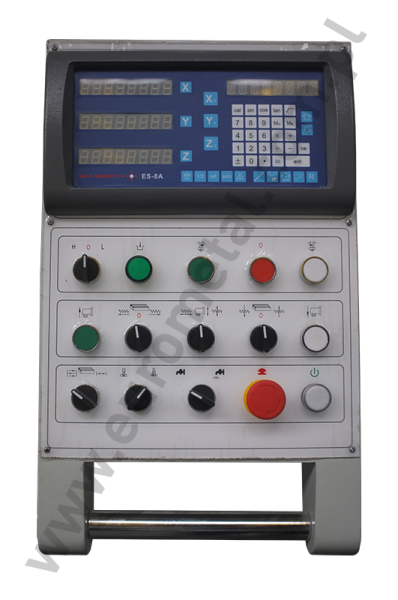

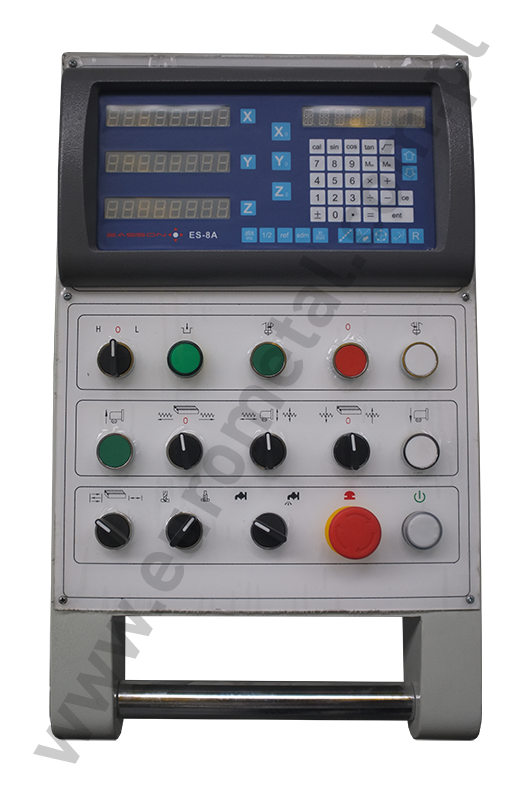

- Digital readings for 3 axes
- Automatic lubrication pump
- Electrically positioned headstock
- 45° swivel head
- Work lights
- Cooling system
- 16mm drill chuck
- ISO40/B18 reducer bush
- Reducing sleeve ISO40/O32
- Reducing sleeve ISO40/MT4/MT3/MT2
- A set of holders for end mills
- Factory set of service keys
- English user manual
- CE Declaration of Conformity
Optional equipment (additionally payable):
- Dividing
- Rotary table
- Machine vice
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 1220 |
| Table dimensions (width) | [mm] | 360 |
| Spindle speed range | [rpm/min] | 94 - 2256 |
| Spindle taper | [-] | 7:24 ISO 40 |
| T-slots (No. x width x spacing) | [mm] | 3x14x95 |
| Headstock motor power | [kW] | 1,5/2,4 |
| Distance between the vertical spindle and the center of the table | [mm] | 80-580 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 400 |
| X Y Z table travel | [mm] | 600, 360 |
| Automatic X Y Z table travel | [mm] | 24-720 |
| Cooling pump motor power | [W] | 0,04 |
| Drilling diameter | [mm] | 50 żeliwo |
| Milling diameter | [mm] | 32 żeliwo |
| Number of gears | [-] | 16 |
| The value of the automatic spindle feeds | [mm/rpm] | 0,1 / 0,15 / 0,3 |
| X, Y feed motor power | [kW] | 0,37 |
| Vertical engine | [W] | 550 |
| Spindle extension | [mm/rpm] | 180 |
| Threading | [-] | M16 |
| Device dimensions | [mm] | 1710x1720x2330 |
| Machine weight | [kg] | 1750 |
