EUROMET FW30 production milling and drilling machine
50 000,00 zł net
No rating
12 months of warranty
A medium-sized EUROMET FW30 production milling and drilling machine equipped with a horizontal spindle and a vertical milling head. The vertical headstock can be rotated together with the upper beam, and it is possible to support the horizontal spindle on the beam (after installing the eyepiece). The vertical headstock can be tilted and has an automatic spindle extension.
Quantity
Add to cart

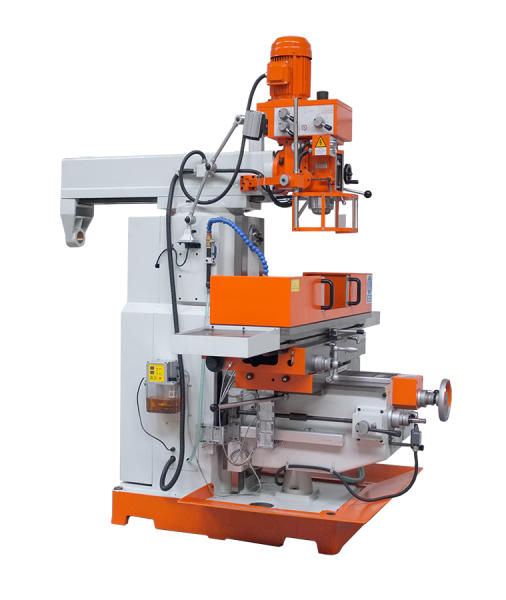

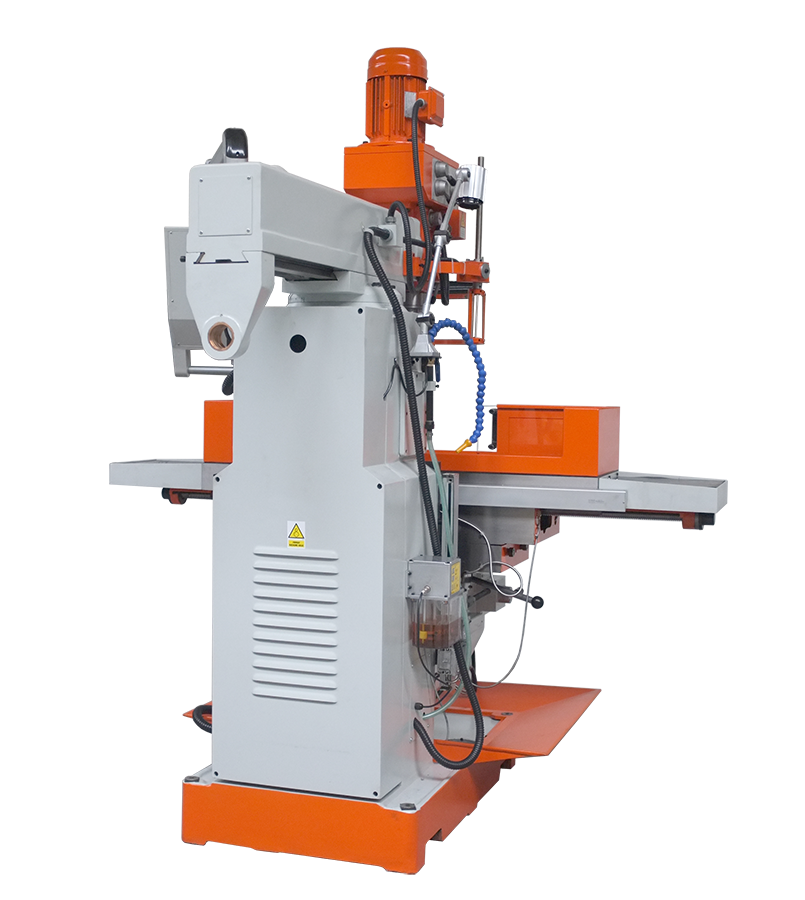

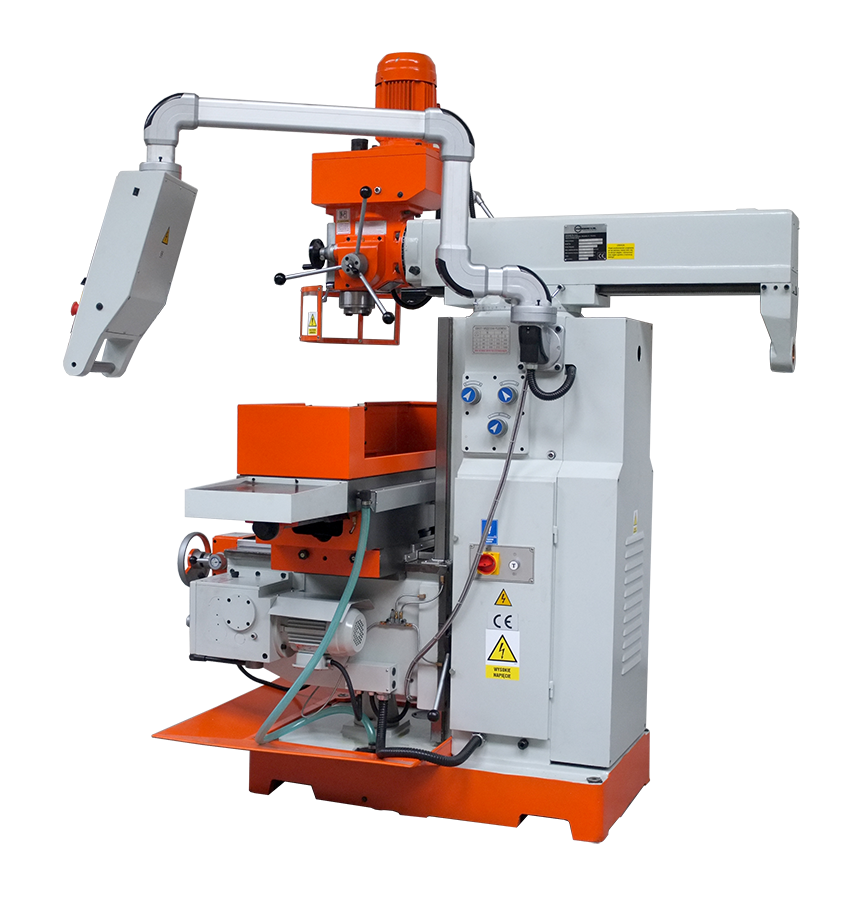

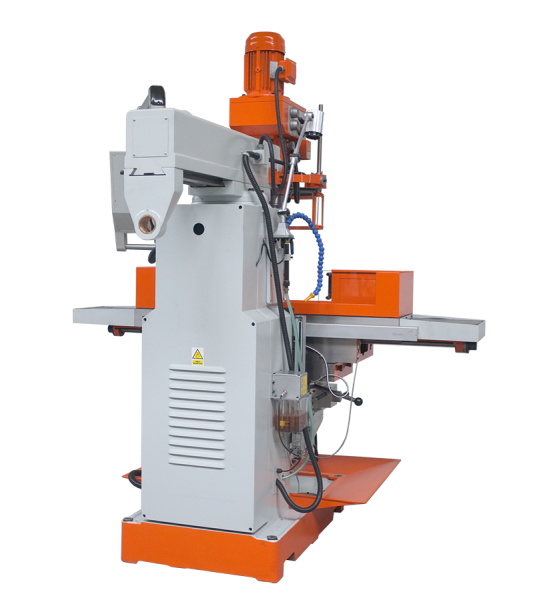

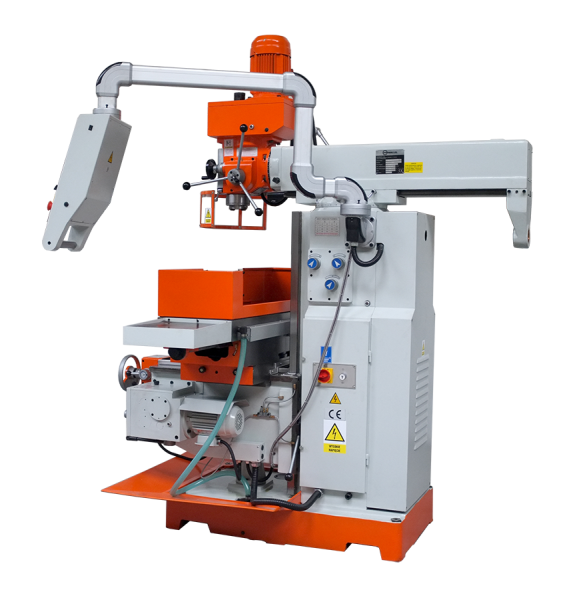

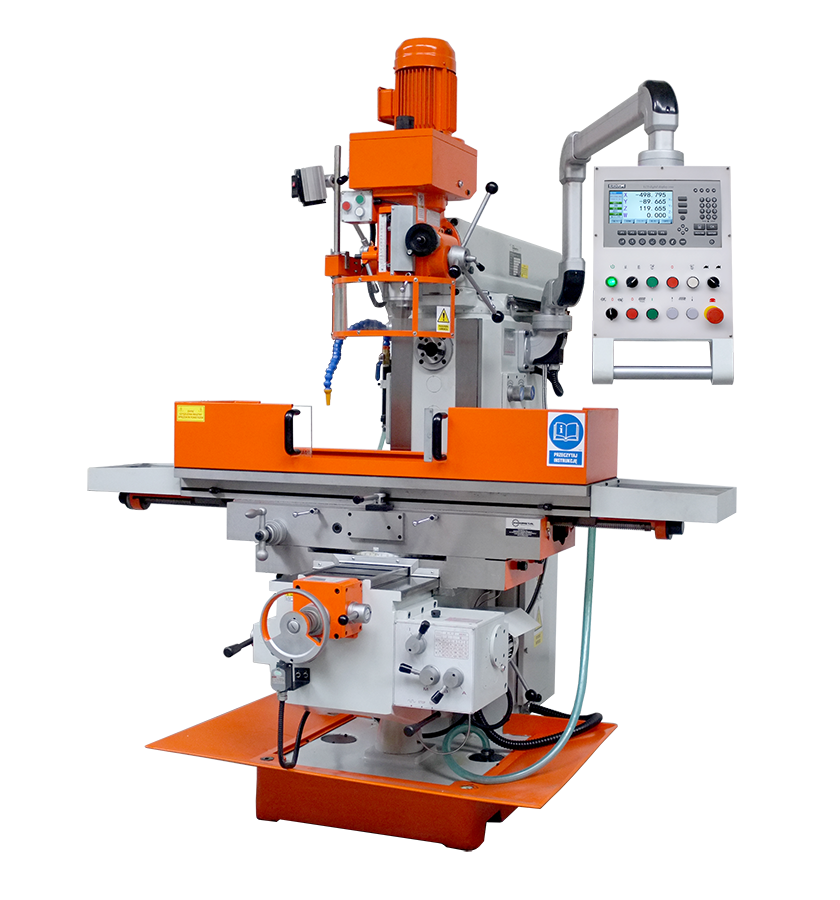

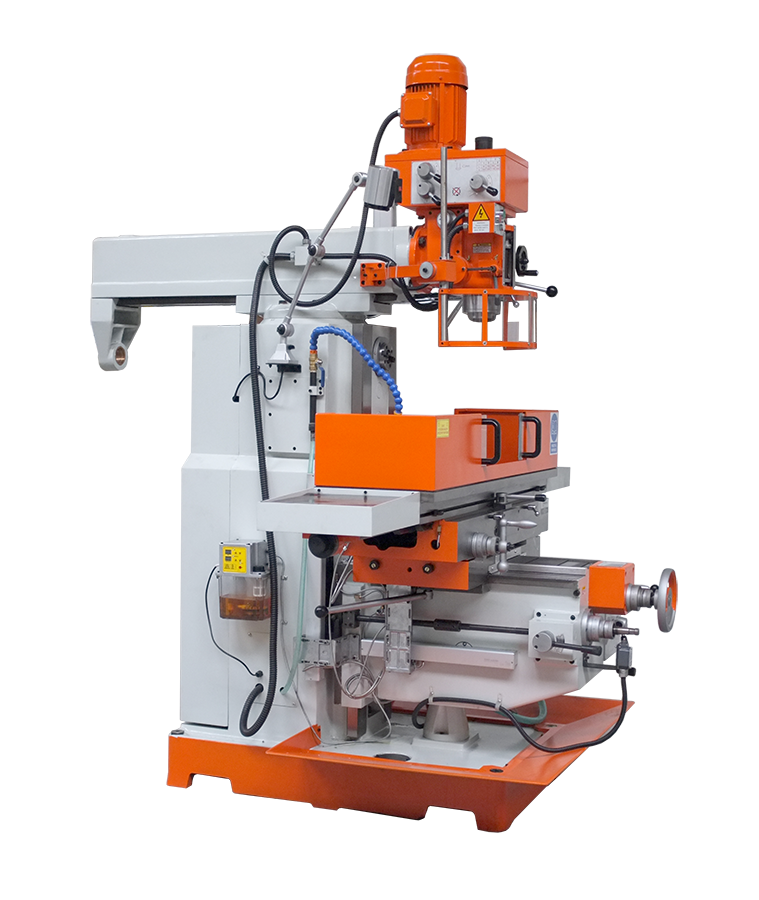

A medium-sized EUROMET FW30 production milling and drilling machine equipped with a horizontal spindle and a vertical milling head. The vertical headstock can be rotated together with the upper beam, and it is possible to support the horizontal spindle on the beam (after installing the eyepiece). The vertical headstock can be tilted and has an automatic spindle extension. The machine is intended for production plants and tool shops. The modern, proven design ensures long-term use.
Standard equipment:
- automatic table feed in the X, Y axes
- vertical head tilted at an angle of +/- 45 °

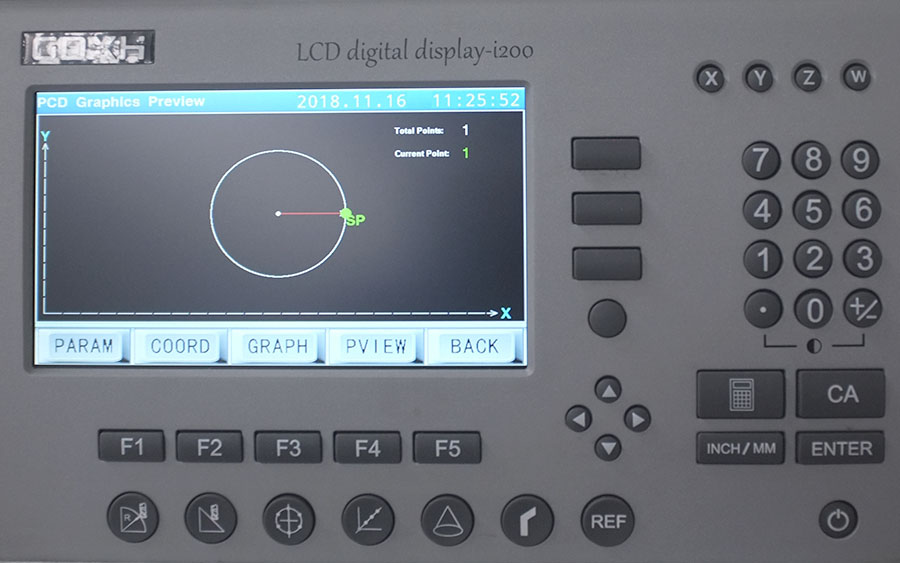

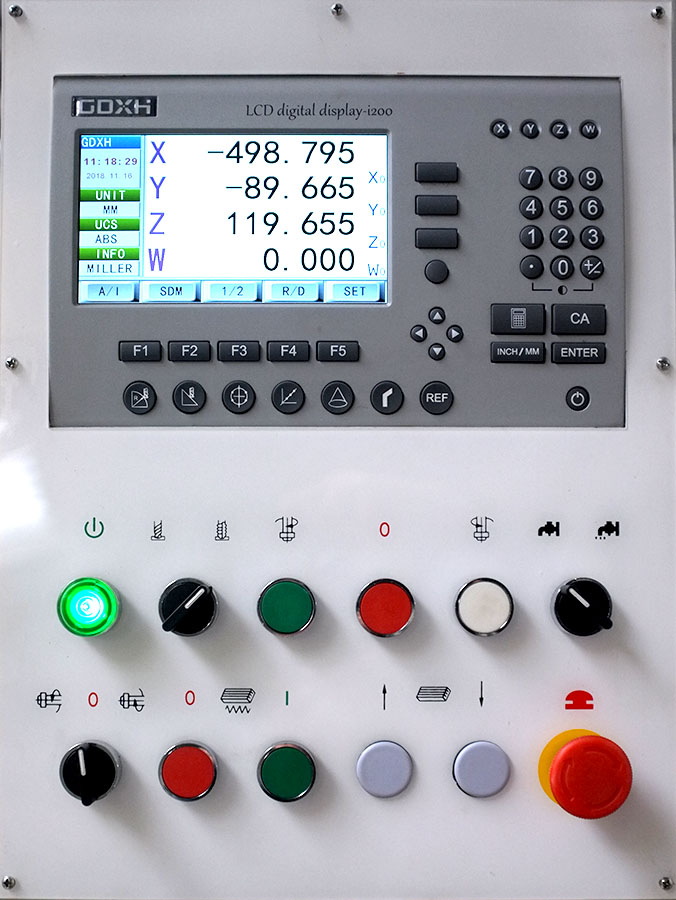

- digital readouts - 3 axes
- spindle rest
- long and short shank
- cooling system
- work lighting
- 16mm drill chuck
- ISO40 / B18 reduction sleeve
- ISO40 / MT4 reduction sleeve
- ISO40 / MT3 reduction sleeve
- ISO40 / MT2 reduction sleeve
- set of holders for end milling cutters
- swivel table
- automatic lubrication
- additional spindle brake after pressing the emergency button
- horizontal spindle
- automatic feed for the vertical spindle
- user manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- self-propelled chiselling head
- divisional
- rotary table
- vice
- set of elements for fixing the workpiece on the machine table
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 1650 |
| Table dimensions (width) | [mm] | 360 |
| X axis feed range | [mm] | 1300 |
| Y axis feed range | [mm] | 300 |
| Z axis feed range | [mm] | 400 |
| Spindle speed range | [rpm/min] | 90 - 2000 |
| Table load capacity | [kg] | 300 |
| Spindle taper | [-] | 7:24 ISO40 |
| Accelerated feed X | [mm/min] | 1290 |
| Accelerated feed Y | [mm/min] | 1205 |
| Accelerated feed Z | [mm/min] | 342 |
| T-slots (No. x width x spacing) | [mm] | 5x14x95 |
| Table rotation | [°] | +/-45 |
| Feed rate (X / Y / Z) | [mm/min] | 420/393/112 |
| Headstock motor power | [kW] | 2,2 |
| Vertical head rotation | [°] | +/-45 |
| Distance between the vertical spindle and the center of the table | [mm] | 180-580 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 220-520 |
| Beam extension | [mm] | 400 |
| Automatic feed speed range | [-] | 0,08/0,15/0,25 |
| Drilling diameter | [mm] | 30 |
| Milling diameter | [mm] | 25 |
| Number of gears | [-] | wrzeciono poziome 12 / wrzeciono pionowe 8 |
| The range of the rotation speed of the horizontal spindle | [rpm/min] | 40 - 1300 |
| Rotational speed range of the vertical spindle | [rpm/min] | 90 - 2000 |
| Drilling diameter automatic mode | [mm] | 14mm (żeliwo), 12mm (stal) |
| Quill slide out | [mm] | 120 |
| Feed drive motor | [kW] | 0,55(X/Y),0,75(Z) |
| Spindle extension | [mm/rpm] | 0,08, 0.15, 0.25mm/obr. (3 stopnie) |
| Threading | [-] | 10 (stal) |
| Device dimensions | [mm] | 1710x1720x2330 |
| Machine weight | [kg] | 2000 |
