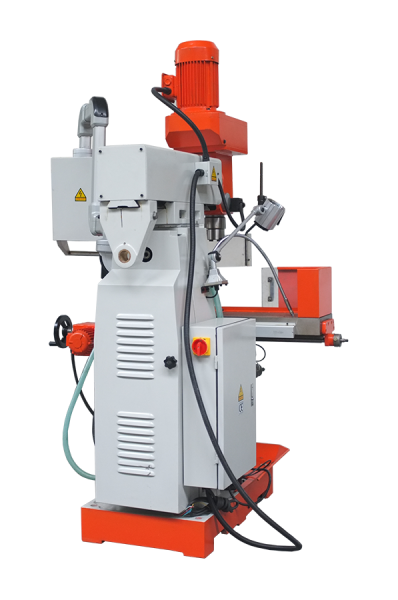

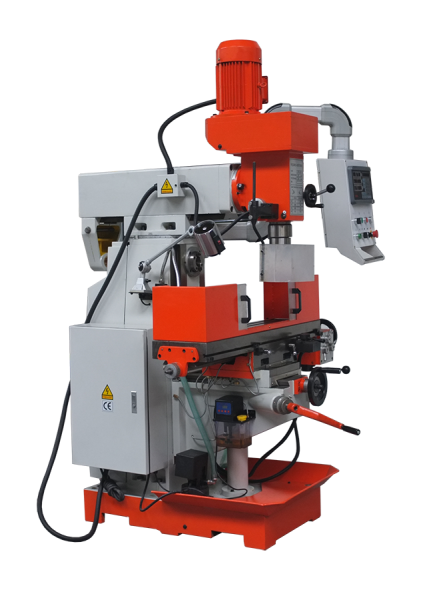

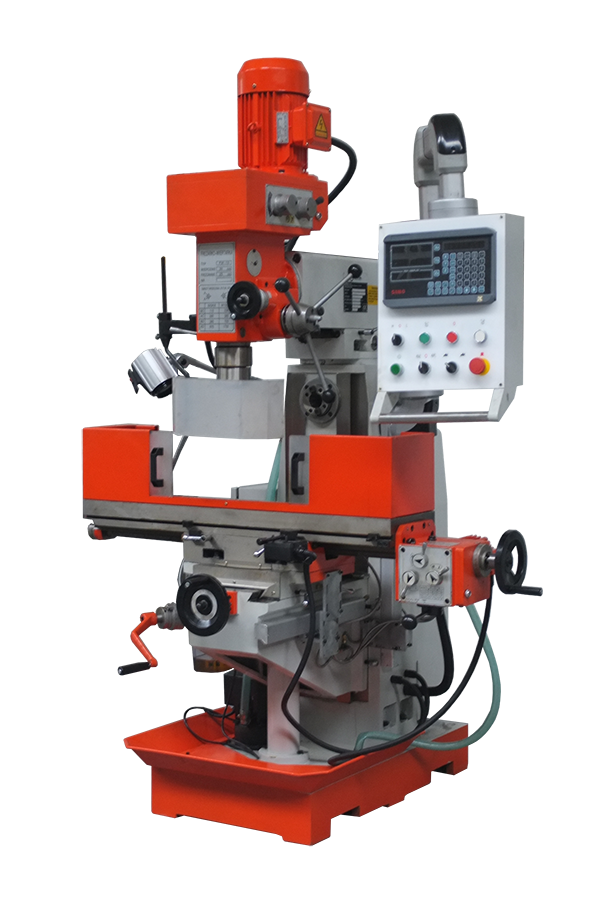

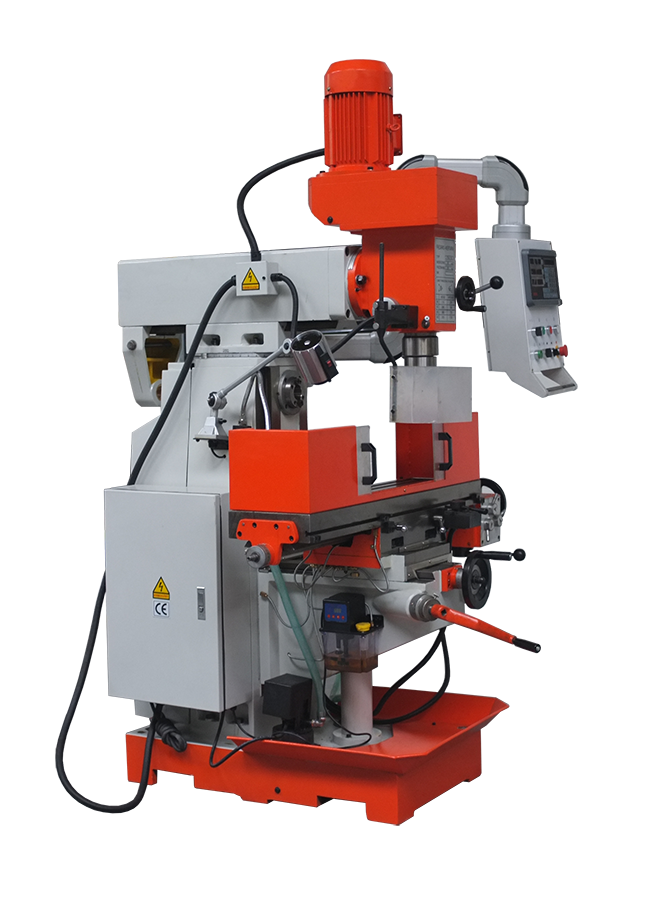

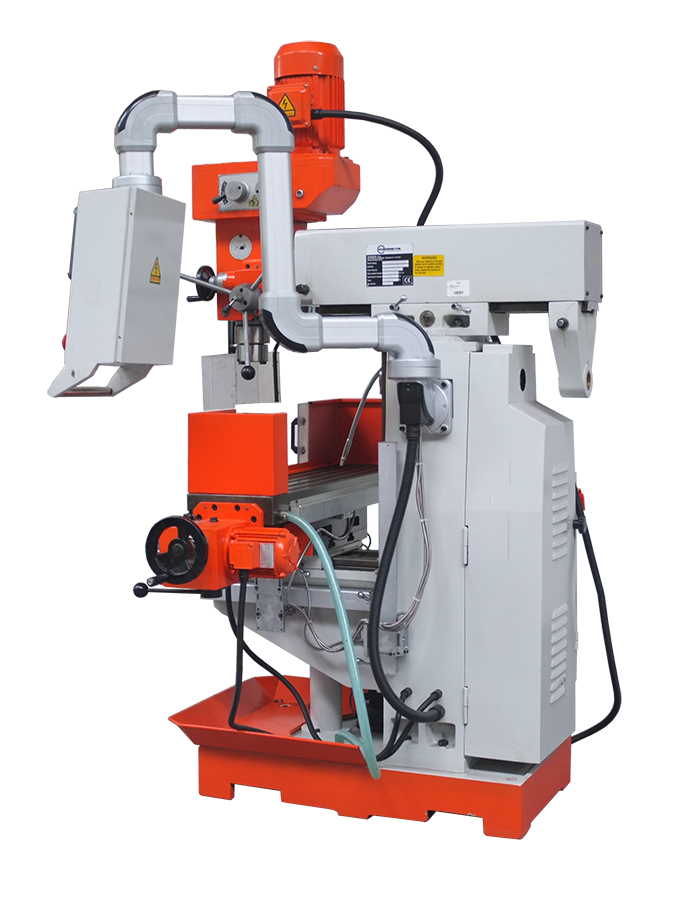

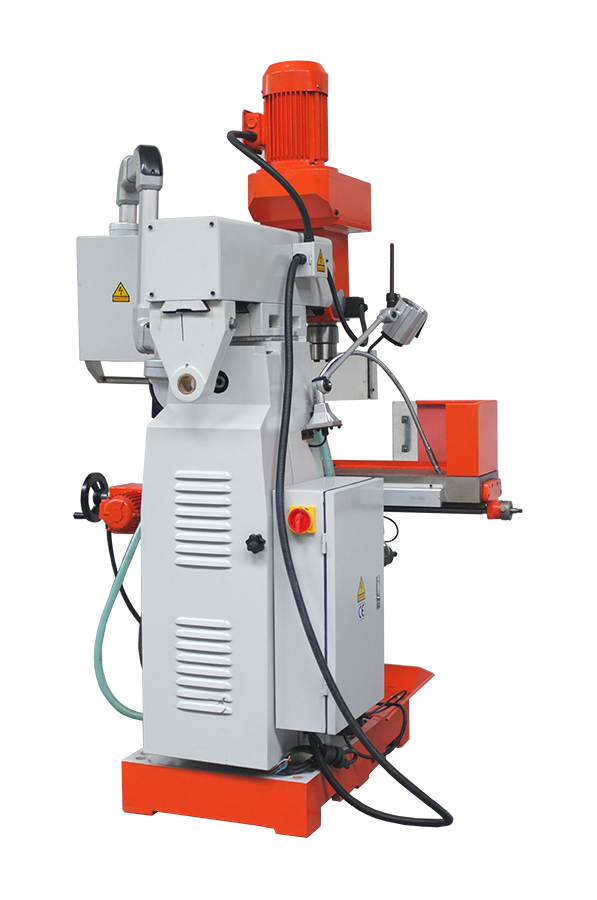

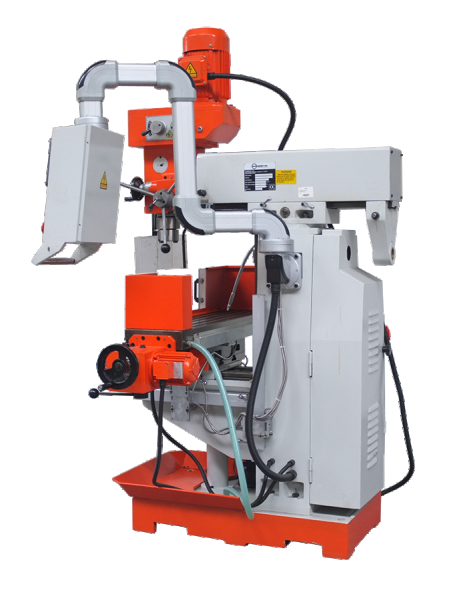

EUROMET FW10 production milling and drilling machine
27 500,00 zł net
No rating
12 months of warranty
EUROMET FW10 production milling and drilling machine is designed for machining small details of medium complexity. Simple, uncomplicated design guarantees reliable operation of the machine over a long period of operation.
Quantity
Add to cart
EUROMET FW10 production milling and drilling machine is designed for machining small details of medium complexity. Simple, uncomplicated design guarantees reliable operation of the machine over a long period of operation.
The milling machine is equipped with two spindles: vertical and horizontal, driven by independent motors. Thanks to the torsion beam, it is possible to quickly reconfigure from a vertical to a horizontal milling machine. The vertical head with an extendable quill is tiltable, so you can drill and mill at an angle.
The machine is perfect for small and medium-sized repair and production workshops. It is very often used for educational purposes in school workshops.
Attention! Z axis feed only manual, Z1 automatic spindle feed from the vertical head.
Attention! Z axis feed only manual, Z1 automatic spindle feed from the vertical head.
Standard equipment:
- mandrels for fixing tools in the spindle
- set of sleeves for attaching end mills + holder
- 16 mm drill chuck
- pin for handle B18
- ISO 40 / MT reduction 2
- work lighting
- cooling system
- vertical milling head
- automatic longitudinal feed of the table
- digital readings
- user manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- machine vice
- rotary table
- divisional
- set of elements for fixing the workpiece on the machine table
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 800 |
| Table dimensions (width) | [mm] | 240 |
| X axis feed range | [mm] | 400 |
| Y axis feed range | [mm] | 230 |
| Z axis feed range | [mm] | 280 |
| Table load capacity | [kg] | 100 |
| Spindle taper | [-] | ISO40 |
| Headstock motor power | [kW] | 0.85/1.5 |
| Distance between the vertical spindle and the center of the table | [mm] | 0-380 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 200-700 / 100-480 |
| X Y Z table travel | [mm] | 370x230 |
| Drilling diameter | [mm] | 30 |
| Milling diameter | [mm] | 80 (poziomo) / 25 (pionowo) |
| The range of the rotation speed of the horizontal spindle | [rpm/min] | 60 - 1350 |
| Rotational speed range of the vertical spindle | [rpm/min] | 115 - 1750 |
| The number of speeds of rotation of the vertical spindle | [-] | 8 |
| The number of revolutions of the horizontal spindle | [-] | 9 |
| Device dimensions | [mm] | 1280x1100x1920 |
| Machine weight | [kg] | 970 |
