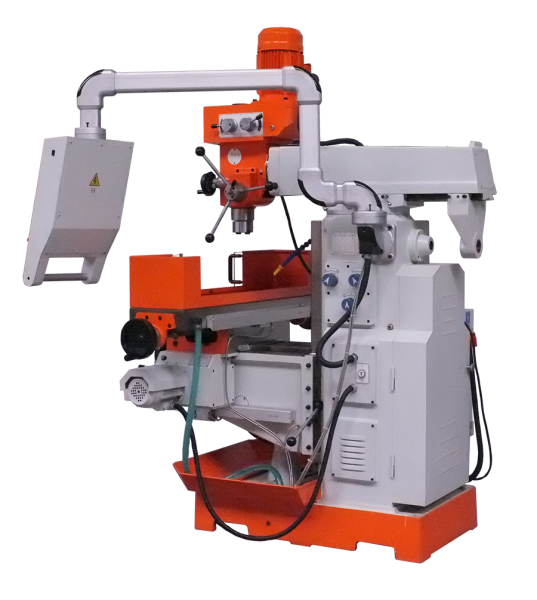

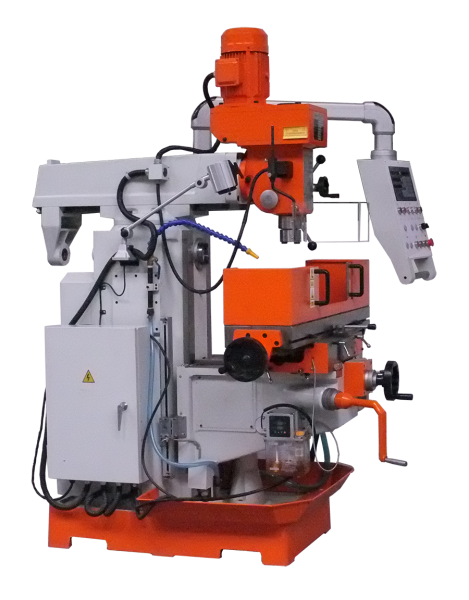

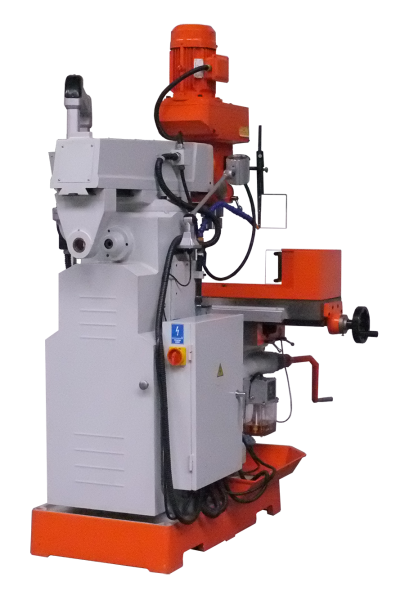

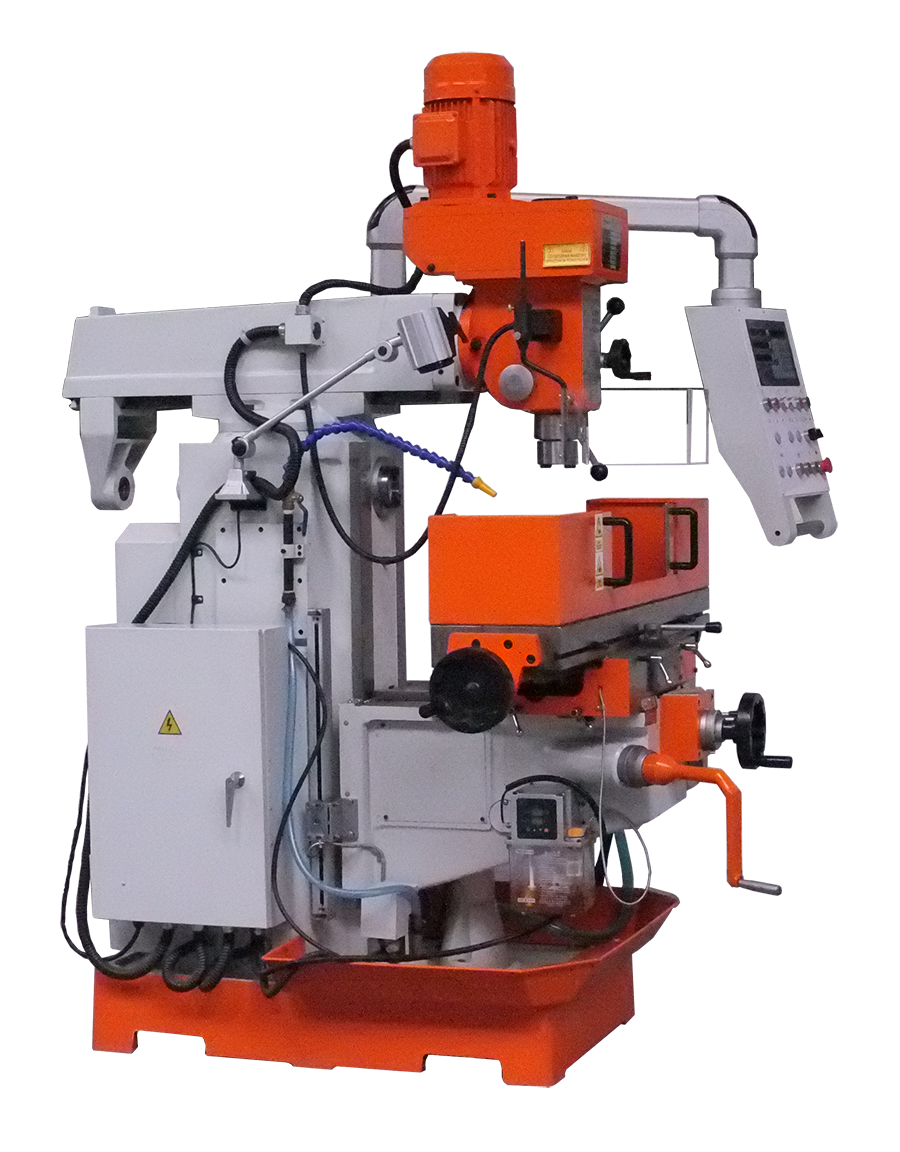

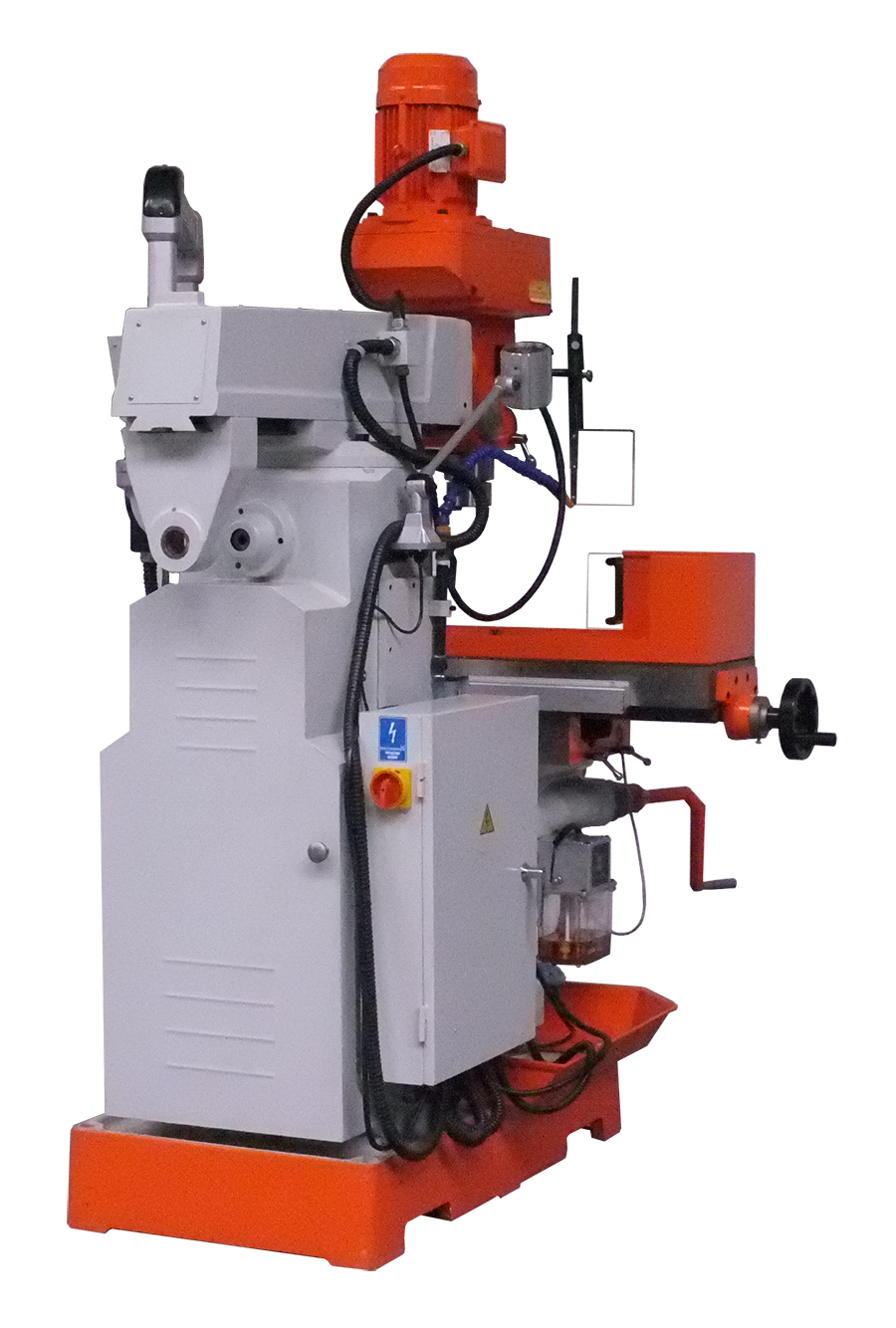

EUROMET FW12 production milling and drilling machine
44 088,00 zł net
No rating
12 months of warranty
A small, easy-to-use EUROMET FW12 production milling and drilling machine, widely used in production departments, repair shops and tool shops. The advantages of the machine are mechanical feeds in the X and Y axes, as well as the possibility of working as a vertical or horizontal milling machine. A stable base made of high-quality cast iron.
Quantity
Add to cart
A small, easy-to-use EUROMET FW12 production milling and drilling machine, widely used in production departments, repair shops and tool shops. The advantages of the machine are mechanical feeds in the X and Y axes, as well as the possibility of working as a vertical or horizontal milling machine. A stable base made of high-quality cast iron.
Attention! Z axis feed only manual, Z1 automatic spindle feed from the vertical head.
Attention! Z axis feed only manual, Z1 automatic spindle feed from the vertical head.
Standard equipment:
- Automatic table feeds for the X, Y axes
- Vertical head
- 16mm drill chuck
- Reduction sleeve for ISO40 / B18 drill chuck
- ISO40 / MT3 reduction sleeves
- ISO40 / MT2 reduction sleeves
- Chuck with 4 - 16mm collets
- Milling arbor 2 pcs
- Cooling system
- Lighting
- Central lubrication system
- A set of basic tools
- Eyepiece for horizontal milling
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Digital readings
- Self-propelled chiselling head
- Divider
- Rotary table
- Set of elements for fixing the workpiece
- Machine vice
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 1120 |
| Table dimensions (width) | [mm] | 260 |
| X axis feed range | [mm] | 600 |
| Y axis feed range | [mm] | 270 |
| Z axis feed range | [mm] | 320 |
| Spindle taper | [-] | ISO40 |
| Headstock motor power | [kW] | 0.85/1.5 (wrzeciono pionowe) / 2,2 (wrzeciono poziome) |
| Distance between the vertical spindle and the center of the table | [mm] | 100-460 / 0-360 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 200-550 |
| X Y Z table travel | [mm] | 600x270 |
| Drilling diameter | [mm] | 30 |
| Milling diameter | [mm] | 80 (poziomo) / 25 (pionowo) |
| Supply voltage | [V] | 400 |
| The range of the rotation speed of the horizontal spindle | [rpm/min] | 40 - 1300 |
| Rotational speed range of the vertical spindle | [rpm/min] | 115 - 1750 |
| The number of speeds of rotation of the vertical spindle | [-] | 8 |
| The number of revolutions of the horizontal spindle | [-] | 12 |
| Spindle extension | [mm/rpm] | 120 |
| Device dimensions | [mm] | 1655x1450x2150 |
| Machine weight | [kg] | 1350 |
