UNIVERSAL LATHE EUROMET VD660X3000
121 948,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

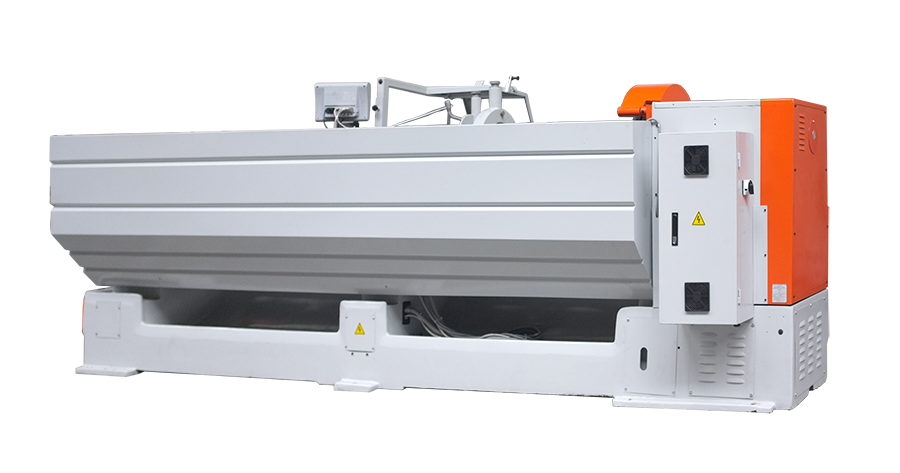

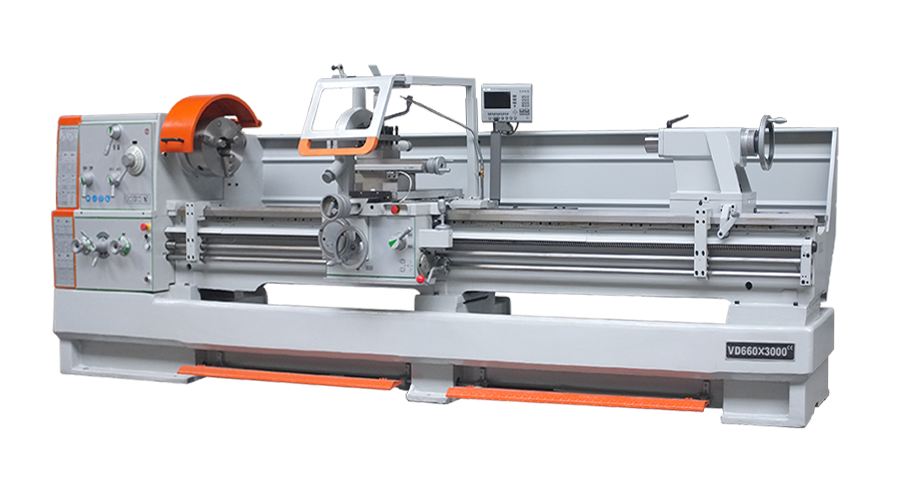

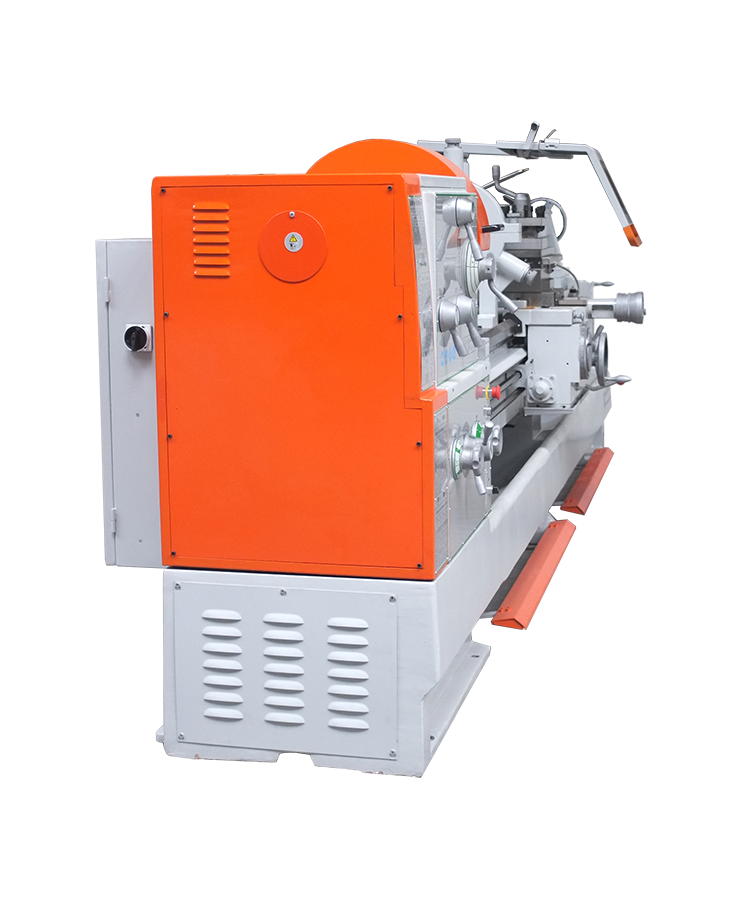

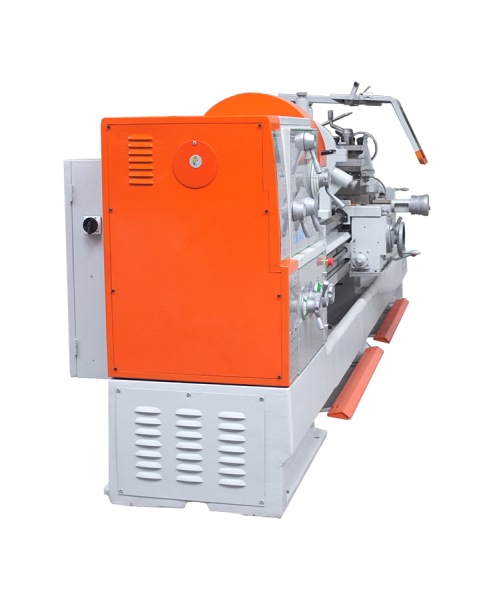

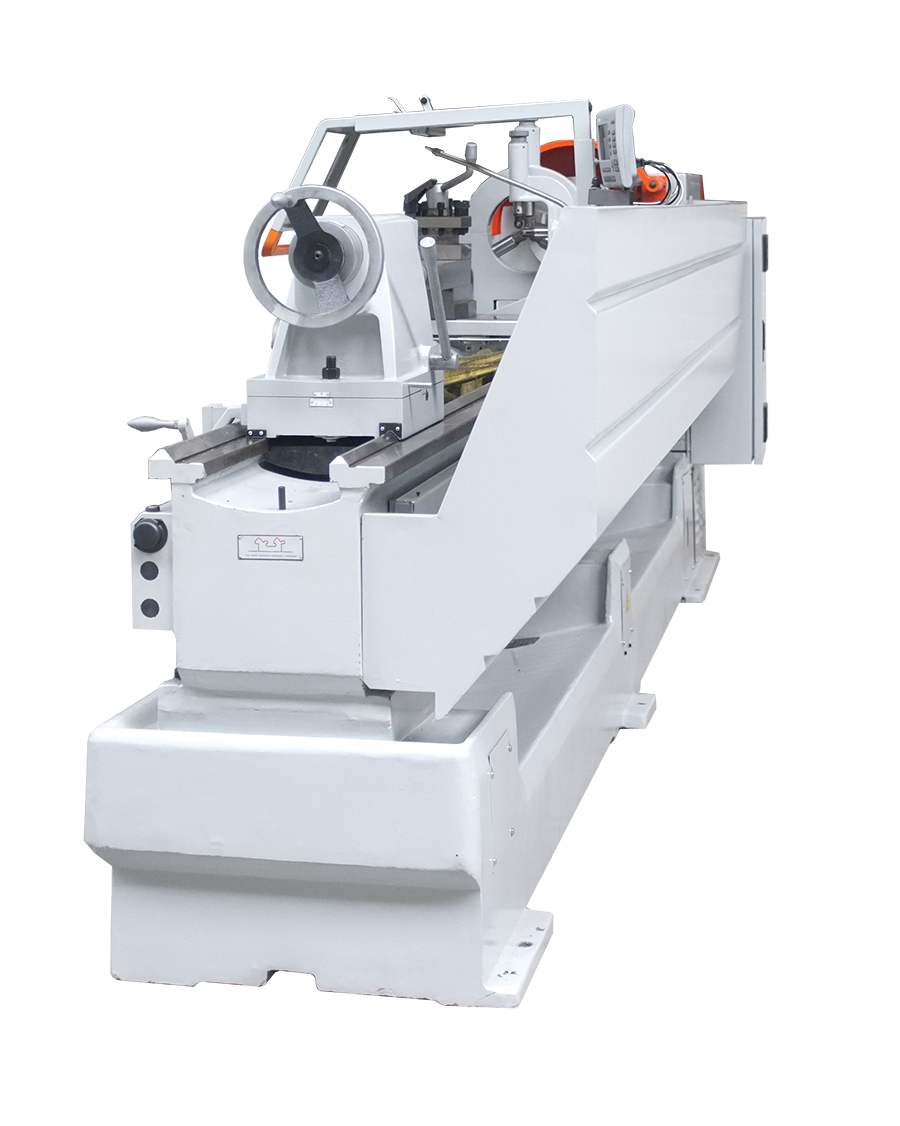

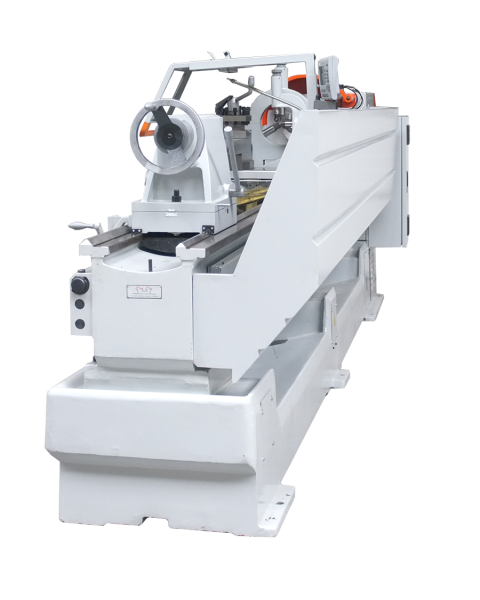

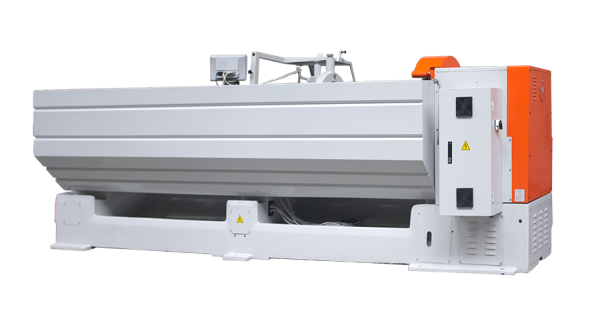

The EUROMET VD660x3000 universal lathe is designed for low-volume production in tool shops and maintenance plants. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.
Quantity
Add to cart
The EUROMET VD660x3000 universal lathe is designed for low-volume production in tool shops and maintenance plants. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.
Features of the device:
- The base of the bed is made of cast iron - one element
- Hardened bed guides
- Heat-treated spindle tip
- Hardened change gears in the spindle gear
- Accelerated feed
- Central lubrication
- The full range of threads can be machined
- Feed selection lock: by a screw or by a shaft
- Large 105 mm spindle bore
- Removable bridge
Standard equipment:
- 3-jaw lathe chuck 315mm
- 4-jaw 400mm lathe chuck
- driving disc
- steady rest
- follow rest
- thread indicator
- digital readout for 2 axes
- reduction sleeve MT 6/4
- fixed tusk MT 4
- cooling system
- lighting
- accelerated feed
- User manual in English
- CE declaration of conformity
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 660 |
| Turning diameter over cross slide | [mm] | 440 |
| Turning diameter in the bridge | [mm] | 900 |
| Turning length | [mm] | 3000 |
| Bed width | [mm] | 400 |
| Spindle flight | [mm] | 105 |
| Turning length in the bridge | [mm] | 250 |
| Upper sled travel | [mm] | 230 |
| Cross slide travel | [mm] | 368 |
| Spindle tip | [-] | D1-8 |
| Spindle seat | [-] | Morse 5 |
| Spindle speed range | [rpm/min] | 26 - 2000 |
| Maximum tool dimensions | [mm] | 32x32 |
| Longitudinal feed range | [mm/rpm] | 0,044 - 1,48 |
| Cross travel range | [mm/rpm] | 0,022 - 0,74 |
| Metric thread | [mm] | 0,45 - 120 |
| Inch thread | [-] | 7/16-80 T.P.I. |
| Modular thread | [-] | 0,25-60 M.P. |
| Thread D.P. | [-] | 7/8-160 D.P. |
| Tailstock sleeve diameter | [mm] | 90 |
| Extend the tailstock quill | [mm] | 235 |
| Tailstock sleeve tip | [-] | No.5 Morse |
| Engine power | [kW] | 7,5 |
| Coolant pump power | [kW] | 0,09 |
| Dimensions | [mm] | 4700x1250x1840 |
| Weight | [kg] | 2700 |
