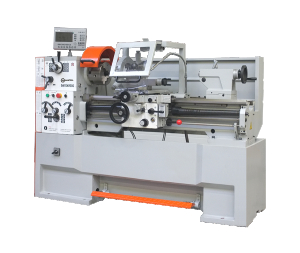

UNIVERSAL LATHE EUROMET VD410X1000
45 000,00 zł net
No rating
12 months of warranty
The EUROMET VD410x1000 universal lathe enables the machining of a full range of threads, it also has a feed selection lock: by a screw or by a shaft, a removable bridge, infinitely adjustable spindle revolutions with the possibility of setting a constant cutting speed.
Quantity
Add to cart
The EUROMET VD410x1000 universal lathe enables the machining of a full range of threads, it also has a feed selection lock: by a screw or by a shaft, a removable bridge, infinitely adjustable spindle revolutions with the possibility of setting a constant cutting speed.
A high-class, precise universal lathe designed to work in production plants, tool shops and maintenance departments. The distinguishing features of the construction are: one-piece cast iron base, hardened bed guides, improved spindle tip.
Equipped as standard with an inverter, constant cutting speed controller and digital readout (for 3 axes).
The main features of the device:
- the bed base is made of cast iron - one element
- hardened bed guides
- spindle nose improved in spindle gear
- the full range of threads can be machined
- feed selection lock: by a screw or by a shaft
- removable bridge
Standard equipment:
- 3-jaw 200 mm lathe chuck (steel)
- driving disc 350mm
- four-legged clamp
- steady rest
- follow rest
- thread indicator
- reduction sleeve MT 6/4
- fixed tusk MT 4
- digital readouts for 3 axes
- 4-jaw lathe chuck 250 mm
- constant cutting speed controller
- stepless adjustment of the spindle speed
- cooling system
- lighting
- User manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- quick-change holder
- ruler for cones
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 410 |
| Turning diameter over cross slide | [mm] | 255 |
| Turning diameter in the bridge | [mm] | 580 |
| Turning length | [mm] | 1000 |
| Bed width | [mm] | 250 |
| Spindle flight | [mm] | 52 |
| Spindle tip | [-] | D1-6 |
| Spindle seat | [-] | Morse 6 |
| Spindle speed range | [rpm/min] | 30 - 3000 |
| Maximum tool dimensions | [mm] | 20x20 |
| Longitudinal feed range | [mm/rpm] | 0,05 - 1,7 |
| Przesuw poprzeczny | [mm] | 210 |
| Cross travel range | [mm/rpm] | 0,025 - 0,85 |
| Metric thread | [mm] | 0,2 - 14 |
| Inch thread | [-] | 2-72 T.P.I. |
| Modular thread | [-] | 0,3-3,5 M.P. |
| Thread D.P. | [-] | 8-44 D.P. |
| Tailstock sleeve diameter | [mm] | 50 |
| Extend the tailstock quill | [mm] | 120 |
| Tailstock sleeve tip | [-] | No.4 Morse |
| Engine power | [kW] | 5,5 |
| Coolant pump power | [kW] | 0,1 |
| Top carriage travel | [mm] | 102 |
| Dimensions | [mm] | 1940x850x1320 |
| Weight | [kg] | 1550 |
