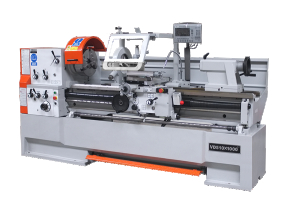

UNIVERSAL LATHE EUROMET D660X2000
78 000,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The EUROMET D660X2000 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.
Instrukcja obsługi: tokarka uniwersalna EUROMET D660X2000
Add to cart
150,00 zł
* applies to instructionQuantity
Add to cart
The EUROMET D660X2000 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.
- removable bridge
- the bed base is made of cast iron - one element
- hardened bed guides
- heat-treated spindle nose
- hardened change gears in the spindle gear
- the full range of threads can be machined
- feed selection lock: by a screw or by a shaft
Standard equipment:
- 3-jaw lathe chuck 315mm
- 4-jaw 400mm lathe chuck
- driving disc
- steady rest
- follow rest
- thread indicator
- digital readout for 2 axes
- reduction sleeve MT 6/4
- fixed tusk MT 4
- cooling system
- lighting
- accelerated feed
- user manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- quick-change holder
- ruler for cones
- digital readout for 3 axes
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 660 |
| Turning diameter over cross slide | [mm] | 440 |
| Turning diameter in the bridge | [mm] | 900 |
| Turning length | [mm] | 2000 |
| Bed width | [mm] | 400 |
| Spindle flight | [mm] | 105 |
| Turning length in the bridge | [mm] | 250 |
| Spindle tip | [-] | D1-8 |
| Spindle seat | [-] | Morse 5 |
| Spindle speed range | [rpm/min] | 26 - 1700 |
| Maximum tool dimensions | [mm] | 32x32 |
| Longitudinal feed range | [mm/rpm] | 0,044 - 1,48 |
| Cross travel range | [mm/rpm] | 0,022 - 0,74 |
| Metric thread | [mm] | 0,45 - 120 |
| Inch thread | [-] | 7/16-80 T.P.I. |
| Modular thread | [-] | 0,25-60 M.P. |
| Thread D.P. | [-] | 7/8-160 D.P. |
| Tailstock sleeve diameter | [mm] | 90 |
| Extend the tailstock quill | [mm] | 235 |
| Tailstock sleeve tip | [-] | No.5 Morse |
| Engine power | [kW] | 7,5 |
| Coolant pump power | [kW] | 0,09 |
| Dimensions | [mm] | 3710x1230x1600 |
| Weight | [kg] | 2900 |
