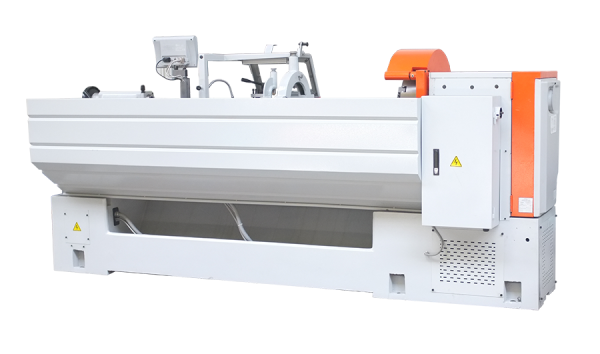

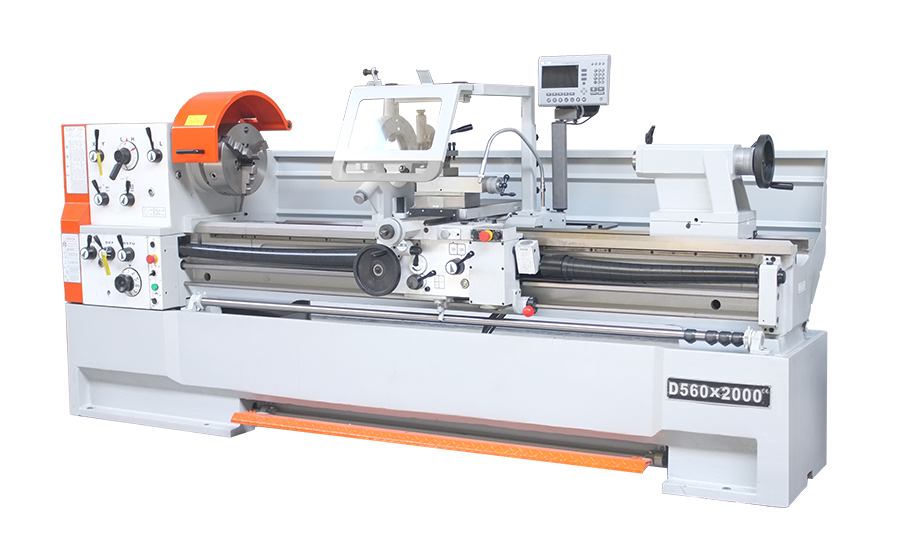

UNIVERSAL LATHE EUROMET D560X2000

92 819,00 zł 78 754,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

The EUROMET D560X2000 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.

Quantity
Add to cart

The EUROMET D560X2000 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.
  • removable bridge
  • the bed base is made of cast iron - one element
  • hardened bed guides
  • heat-treated spindle nose
  • hardened change gears in the spindle gear
  • the full range of threads can be machined
  • feed selection lock: by a screw or by a shaft

Standard equipment:
  • 3-jaw lathe chuck 315mm
  • 4-jaw 400mm lathe chuck
  • driving disc
  • steady rest
  • follow rest
  • thread indicator
  • digital readout for 2 axes
  • reduction sleeve MT 6/4
  • fixed tusk MT 4
  • cooling system
  • lighting
  • accelerated feed
  • user manual in English
  • CE declaration of conformity
Optional equipment (paid additionally)::
  • quick-change holder
  • ruler for cones
  • digital readout for 3 axes

Technical data Unit Value
Turning diameter over bed [mm] 560
Turning diameter over cross slide [mm] 350
Turning diameter in the bridge [mm] 788
Turning length [mm] 2000
Bed width [mm] 350
Spindle flight [mm] 80
Turning length in the bridge [mm] 200
Spindle tip [-] D1-8
Spindle seat [-] Morse 7
Spindle speed range [rpm/min] 25 - 1600
Maximum tool dimensions [mm] 25x25
Longitudinal feed range [mm/rpm] 0,059 - 1,646
Cross travel range [mm/rpm] 0,02 - 0,573
Metric thread [mm] 0,2 - 14
Inch thread [-] 2-112 T.P.I.
Modular thread [-] 0,1-7 M.P.
Thread D.P. [-] 4-112 D.P.
Tailstock sleeve diameter [mm] 75
Extend the tailstock quill [mm] 180
Tailstock sleeve tip [-] No.5 Morse
Engine power [kW] 7,5
Coolant pump power [kW] 0,1
Dimensions [mm] 3340x1150x1460
Weight [kg] 2720
