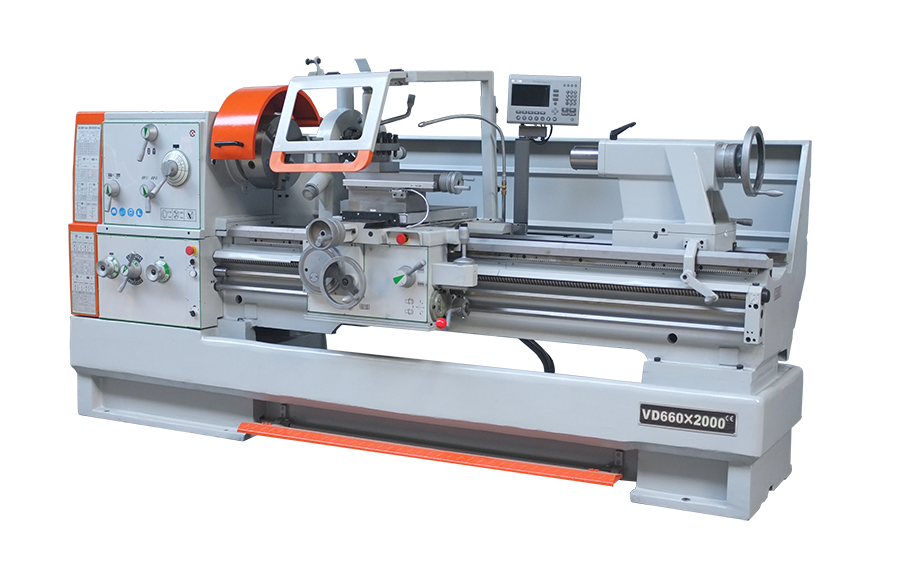

UNIVERSAL LATHE EUROMET VD660X2000

102 000,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The EUROMET VD660x2000 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.

Quantity
Add to cart

The EUROMET VD660x2000 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased dimensions allow machining of larger details.
  • removable bridge
  • the bed base is made of cast iron - one element
  • hardened bed guides
  • heat-treated spindle nose
  • hardened change gears in the spindle gear
  • the full range of threads can be machined
  • feed selection lock: by a screw or by a shaft

Standard equipment:
  • 3-jaw lathe chuck 315 mm
  • 4-jaw lathe chuck 400 mm
  • digital readout for 3 axes
  • ruler for cones
  • drive plate
  • steady rest
  • steadie
  • thread indicator
  • reduction sleeve MT 7/5
  • permanent tooth MT 5
  • cooling system
  • lighting
  • accelerated feed
  • English user manual
  • CE Declaration of Conformity
Optional equipment (paid additionally):
  • rotating claw
  • vibration isolators
  • specialized lathe chucks

Technical data Unit Value
Turning diameter over bed [mm] 660
Turning diameter over cross slide [mm] 440
Turning diameter in the bridge [mm] 900
Turning length [mm] 2000
Bed width [mm] 400
Spindle flight [mm] 105
Turning length in the bridge [mm] 250
Upper sled travel [mm] 230
Cross slide travel [mm] 368
Spindle tip [-] D1-8
Spindle seat [-] Morse 5
Spindle speed range [rpm/min] 26 - 2000
Maximum tool dimensions [mm] 25x25
Longitudinal feed range [mm/rpm] 0,044 - 1,48
Cross travel range [mm/rpm] 0,022 - 0,74
Metric thread [mm] 0,45 - 120
Inch thread [-] 7/16-80 T.P.I.
Modular thread [-] 0,25-60 M.P.
Thread D.P. [-] 7/8-160 D.P.
Tailstock sleeve diameter [mm] 90
Extend the tailstock quill [mm] 235
Tailstock sleeve tip [-] No.5 Morse
Engine power [kW] 7,5
Coolant pump power [kW] 0,09
