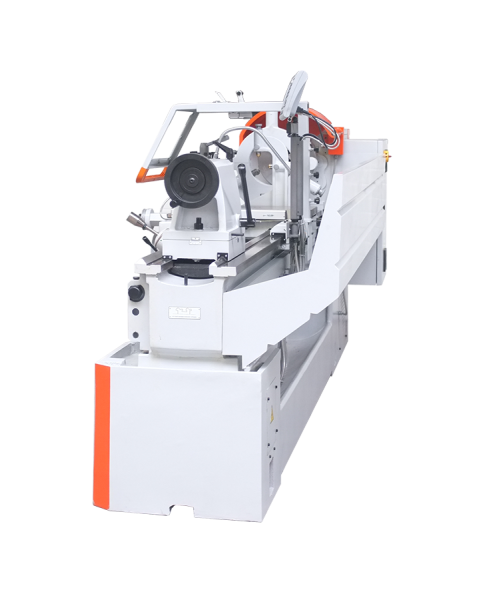

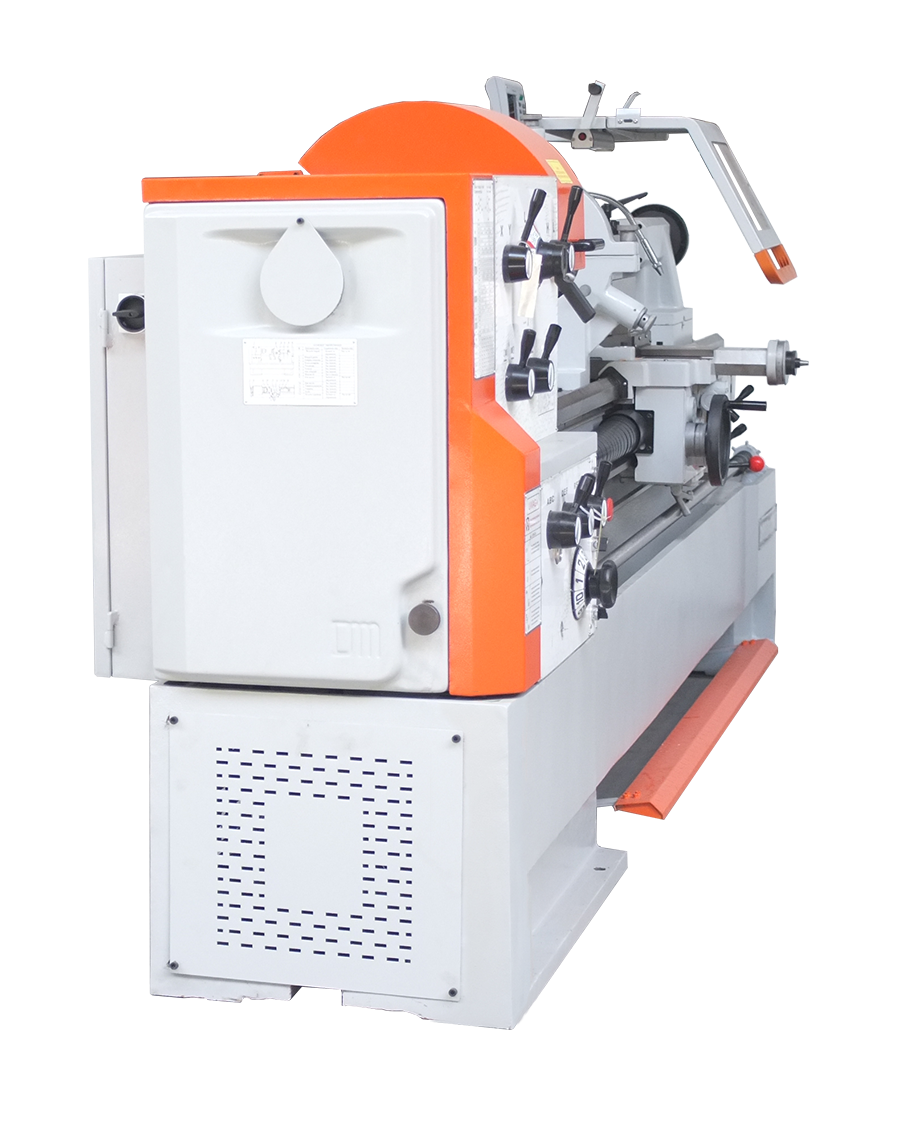

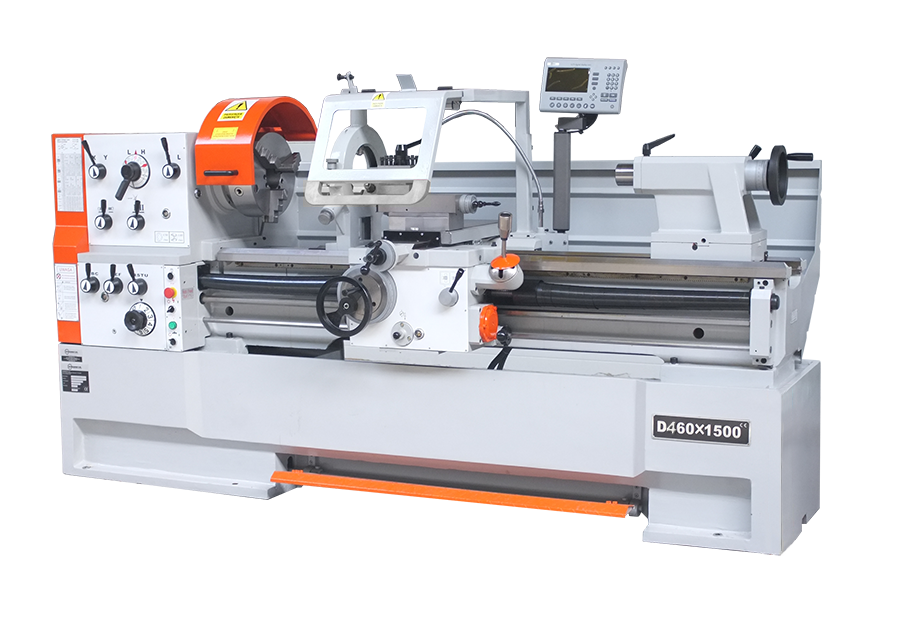

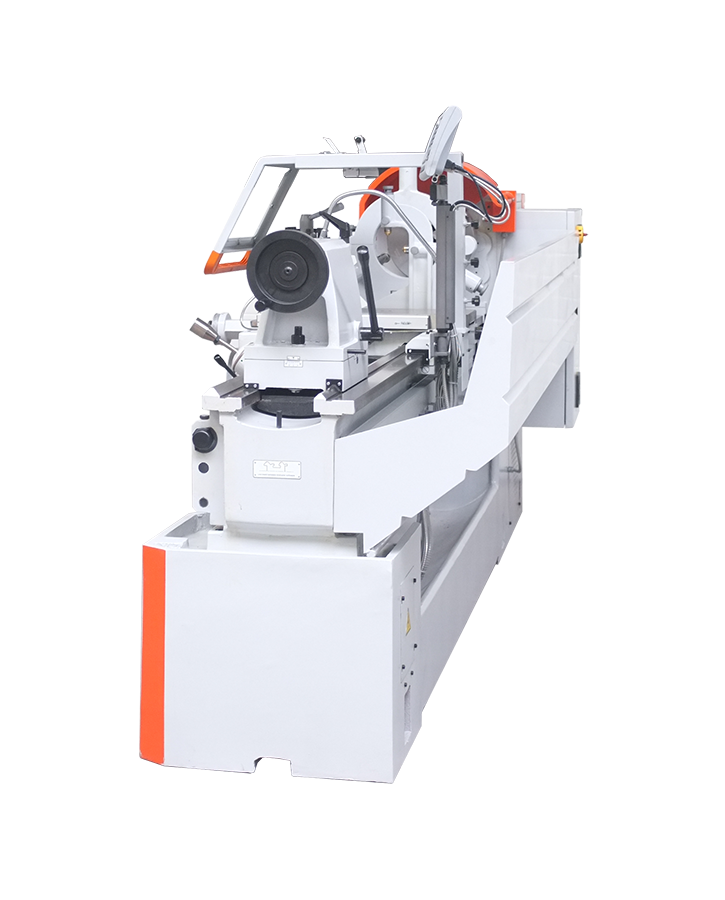

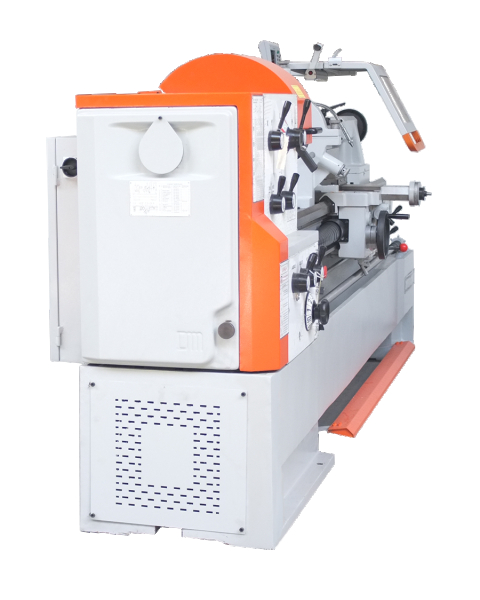

UNIVERSAL LATHE EUROMET D460X1500

49 000,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Edyta Skrzypek
E-mail: edyta.skrzypek@eurometal.com.pl
Telefon: 609504408

The EUROMET D460X1500 universal lathe is designed for small-lot production and for work in tool shops or maintenance plants. The cast iron cast of the bed base guarantees very high rigidity and stability of the machine.

Quantity
Add to cart

The EUROMET D460X1500 universal lathe is designed for small-lot production and for work in tool shops or maintenance plants. The cast iron cast of the bed base guarantees very high rigidity and stability of the machine.

  • the bed base is made of cast iron - one element
  • hardened bed guides
  • heat-treated spindle nose
  • hardened change gears in the spindle gear
  • the full range of threads can be machined
  • feed selection lock: by a screw or by a shaft
  • removable bridge

Standard equipment
  • 250mm 3-jaw lathe chuck
  • 4-jaw chuck 315mm
  • driving disc
  • steady rest
  • follow rest
  • thread indicator
  • digital readout for 2 axes
  • reduction sleeve MT 6/4
  • fixed tusk MT 4
  • cooling system
  • lighting
  • user manual in English
  • CE declaration of conformity

Optional equipment (paid additionally):
  • quick-change holder
  • ruler for cones
  • digital readout for 3 axes

Technical data Unit Value
Turning diameter over bed [mm] 460
Turning diameter over cross slide [mm] 274
Turning diameter in the bridge [mm] 690
Turning length [mm] 1500
Bed width [mm] 300
Spindle flight [mm] 58
Turning length in the bridge [mm] 155
Spindle tip [-] D1-6
Spindle seat [-] Morse 6
Spindle speed range [rpm/min] 25 - 2000
Maximum tool dimensions [mm] 25x25
Longitudinal feed range [mm/rpm] 0,031 - 1,7
Przesuw poprzeczny [mm] 285
Cross travel range [mm/rpm] 0,014 - 0,784
Metric thread [mm] 0,1 - 14
Inch thread [-] 2-112 T.P.I.
Modular thread [-] 0,1-7 M.P.
Thread D.P. [-] 4-112 D.P.
Tailstock sleeve diameter [mm] 60
Extend the tailstock quill [mm] 120
Tailstock sleeve tip [-] No.4 Morse
Engine power [kW] 4
Coolant pump power [kW] 0,1
Dimensions [mm] 2670x1040x1370
Weight [kg] 2020
