Band saws
IMET GBS 185 ECO GH Auto Cut bandsaw
No rating
12 months of warranty
Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252

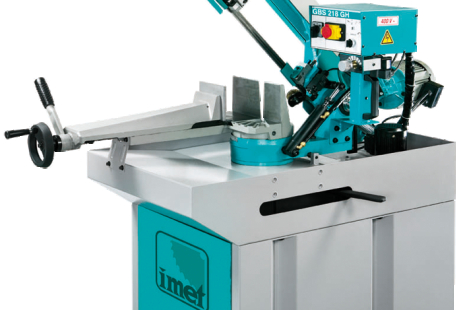

A manual band saw that enables angle cutting - the arm is torsion up to 60° to the right - and hydraulic feed. The machine is equipped with a manual vice with quick clamping, manual lifting of the arm, cooling system, two cutting speeds and smoothly adjustable feed.
Quantity
Add to cart
A manual band saw that enables angle cutting - the arm is torsion up to 60° to the right - and hydraulic feed. The machine is equipped with a manual vice with quick clamping, manual lifting of the arm, cooling system, two cutting speeds and smoothly adjustable feed. Cutting tool - bimetallic strip 20 mm high is precisely guided in cubes made of sintered carbides.
Basic data:
- Maximum cutting diameter: ø 185 mm
- Working feed: gravitational arm drop; smooth adjustment
- Arm lifting: manual
- Miter cut: Right 0° - 45° - 60°
- Cutting band size: 2085 x 20 x 0.9mm
- Belt speed: 2 cutting speeds 30/60 m/min
- Vice: manual - quick clamp
Standard equipment:
- cooling system
- bimetallic tape - 1 piece in the machine
- english user manual
Additional equipment at an extra charge:
- roller feeders
- oil mist lubrication system (micronizer)
- strain gauge for precise adjustment of belt tension
| Technical data | Unit | Value |
|---|---|---|
| The width of the cutting band | [mm] | 20 |
| Vise opening width | [mm] | 200 |
| The dimensions of the cutting band | [mm] | 2085x20x0,9 |
| Cutting band speed | [m/min] | 30/60 |
| Cutting band motor power | [kW] | 0,8 |
| Working height | [mm] | 900 |
| Dimensions | [mm] | 600x1200x1700 |
| Weight | [kg] | 215 |
