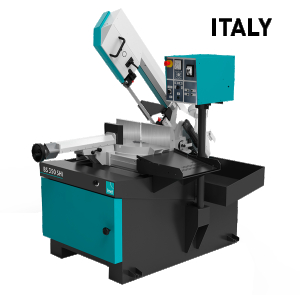

IMET BS 400 SHI semi-automatic bandsaw

50 444,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The machine allows cutting at an angle of up to 60° to the right and 45° to the left and adjustment of the arm feed speed. The cutting machine is the optimal solution for cutting both solid materials and sections, e.g. in the production of steel structures. IMET BS 400 SHI semi-automatic band saw with a built-in hydraulic unit responsible for lowering and raising the arm, vice operation, and with adjustable cutting speed (smooth regulation - inverter - optional for an additional fee).

Quantity
Add to cart

The machine allows cutting at an angle of up to 60° to the right and 45° to the left and adjustment of the arm feed speed. The cutting machine is the optimal solution for cutting both solid materials and sections, e.g. in the production of steel structures.
IMET BS 400 SHI semi-automatic band saw with a built-in hydraulic unit responsible for lowering and raising the arm, vice operation, and with adjustable cutting speed (smooth regulation - inverter - optional for an additional fee).
  • Working feed: hydraulic arm drop; smooth regulation
  • Arm lifting: hydraulic
  • Angle cutting: right 0° - 45° - 60°; left - 45°
  • Cutting band dimensions: 4020 x 34 x 1.1 mm
  • Band speed: 2 cutting speeds 37/74 m/min
  • Vice – hydraulic clamp

Standard equipment:
  • cooling system
  • tape cleaning brush
  • bimetallic tape – 1 piece in the machine
  • user manual in English
  • CE certificate
Optional equipment (additionally paid):
  • roller feeders
  • measure with bumper
  • connector
  • smooth regulation of cutting speed (inverter)
  • oil mist lubrication system (micronizer)
  • laser cutting line indicator
  • hydraulic clamp for cutting packages
  • adjusting the vice clamping force

Technical data Unit Value
The width of the cutting band [mm] 34
Vise opening width [mm] 400
The dimensions of the cutting band [mm] 4020x34x1.1
Cutting band speed [m/min] 37/74
Cutting band motor power [kW] 1.5/2.2
Working height [mm] 940
Dimensions [mm] 1530x1787x2240
Weight [kg] 680
