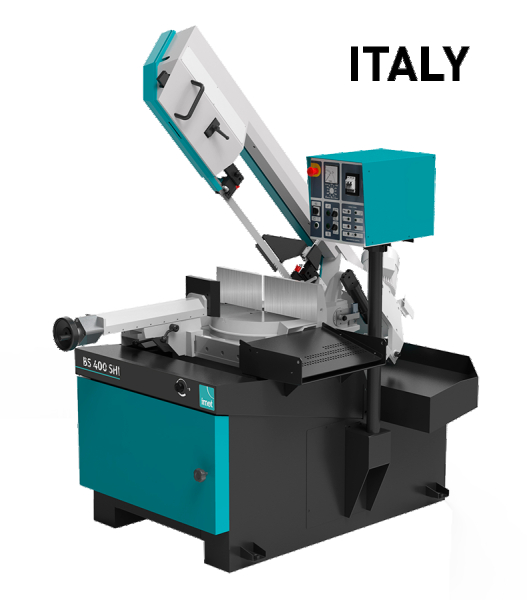

The machine allows cutting at an angle of up to 60° to the right and 45° to the left and adjustment of the arm feed speed. The cutting machine is the optimal solution for cutting both solid materials and sections, e.g. in the production of steel structures. IMET BS 400 SHI semi-automatic band saw with a built-in hydraulic unit responsible for lowering and raising the arm, vice operation, and with adjustable cutting speed (smooth regulation - inverter - optional for an additional fee).
Technical data | Unit | Value |
---|---|---|
The width of the cutting band | [mm] | 34 |
Vise opening width | [mm] | 400 |
The dimensions of the cutting band | [mm] | 4020x34x1.1 |
Cutting band speed | [m/min] | 37/74 |
Cutting band motor power | [kW] | 1.5/2.2 |
Working height | [mm] | 940 |
Dimensions | [mm] | 1530x1787x2240 |
Weight | [kg] | 680 |
