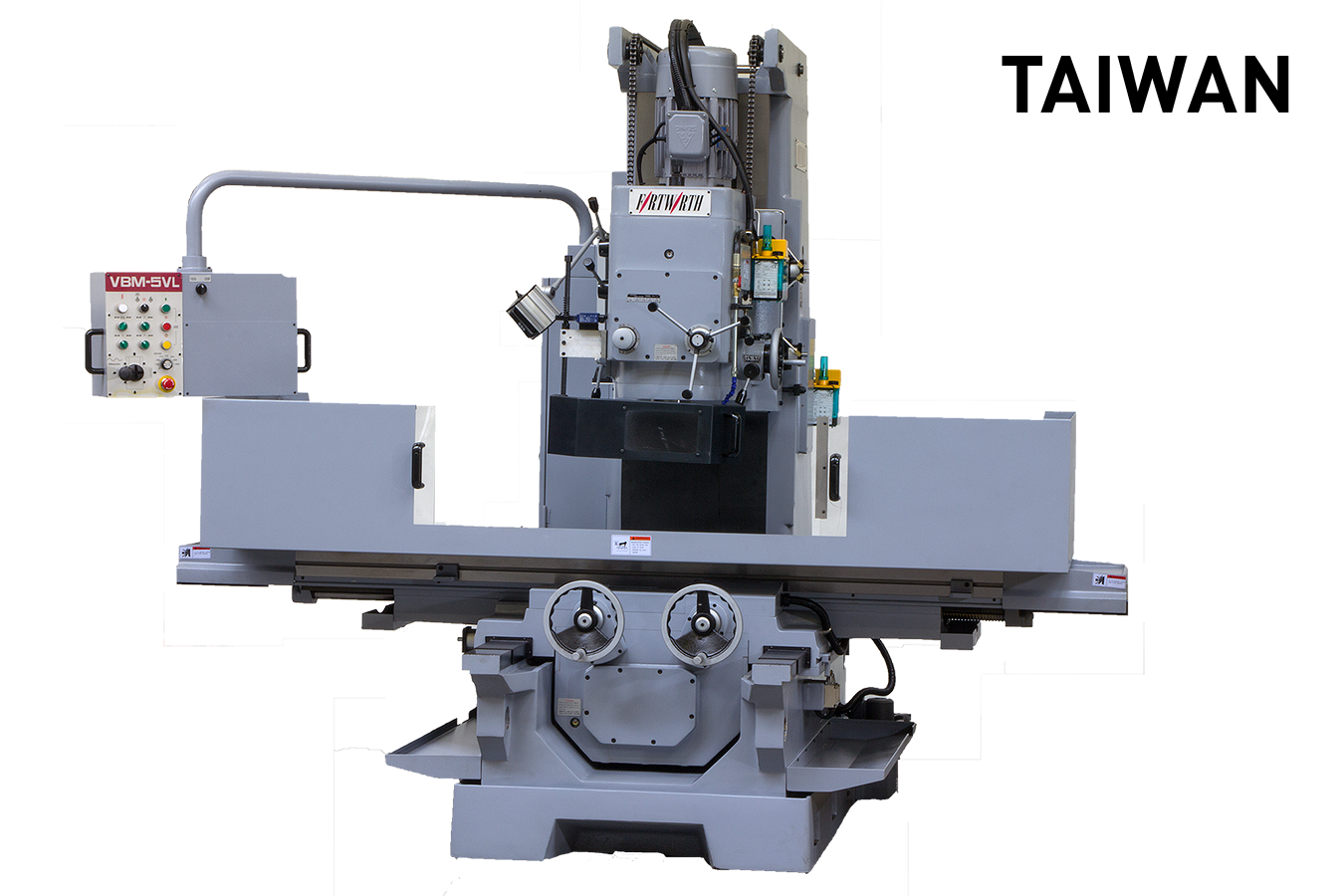

Fortworth CS-VBM-5VL vertical milling machine
Priced individually
No rating
12 months of warranty
The Fortworth CS-VBM-5VL vertical milling machine from a renowned Taiwanese company is characterized by high rigidity of the structure, obtained thanks to the use of ribbed casting, scraped guides and all parts and subassemblies precisely made. The machine is mainly used for machining heavy details, where large table surfaces and long passages are required.
The Fortworth CS-VBM-5VL vertical milling machine from a renowned Taiwanese company is characterized by high rigidity of the structure, obtained thanks to the use of ribbed casting, scraped guides and all parts and subassemblies precisely made. The machine is mainly used for machining heavy details, where large table surfaces and long passages are required. It is equipped with a retractable spindle quill, an automatic central lubrication system, working lighting, guiding covers and ergonomically placed control elements.
Standard equipment:
- Automatic feeds in 3 axes
- Automatic central lubrication system
- Cooling system
- Work lighting
- Factory set of operating tools
- Foundation bolts and leveling washers
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Stepless adjustment of the spindle speed
- Digital readouts for 3 axes
- Automatic tool clamping
- Rolling lead screws
- Pneumatic table and headstock clamps
- Divider
- Rotary table
- Machine vice
- Set of elements for clamping workpieces on the machine table
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 2200 |
| Table dimensions (width) | [mm] | 500 |
| X axis feed range | [mm] | 0 |
| Y axis feed range | [mm] | 1000 |
| Spindle taper | [-] | ISO R297 nr.50 |
| Accelerated feed X | [mm/min] | 700 |
| Accelerated feed Y | [mm/min] | 3300 |
| Accelerated feed Z | [mm/min] | 3300 |
| T-slots (No. x width x spacing) | [mm] | 18x5x80 |
| Headstock motor power | [kW] | 11 |
| Distance between the vertical spindle and the center of the table | [mm] | 100-800 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 550 |
| Arm stroke | [Nm] | 12 |
| X Y Z table travel | [mm] | 1500 (opcja 2000) |
| Cooling pump motor power | [W] | 0,15 |
| Rotational speed range of the vertical spindle | [rpm/min] | 35 - 1250 |
| The number of speeds of rotation of the vertical spindle | [-] | 12 |
| Headstock travel | [mm] | 700 |
| The distance from the surface of the working table to the ground | [mm] | 860 |
| Feed drive motor | [kW] | 1,5 |
| Vertical spindle feed | [mm/rpm] | 0.05, 0.075, 0.1, 0.15, 0.2 |
| Device dimensions | [mm] | 2870x4440x2550 |
| Machine weight | [kg] | 7000 |
