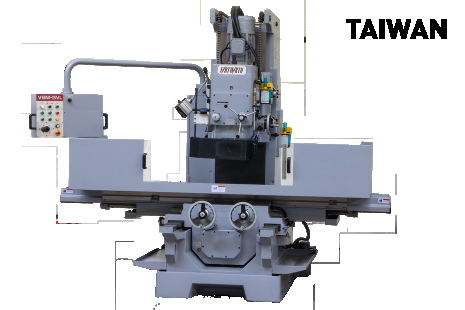

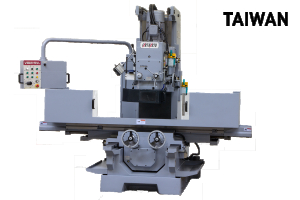

Fortworth CS-VBM-3V-A vertical milling machine

~~189 000,00 zł~~ 170 000,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The Fortworth CS-VBM-3V-A vertical milling machine from a reputable company in Taiwan is characterized by high rigidity of the structure, obtained through the use of ribbed casting, scraped guides and precisely made all parts and subassemblies. The machine is mainly used for machining heavy details, where large table surfaces and large passages are required.

Quantity

CONDITION: UNUSED

YEAR OF PRODUCTION: 2015

TABLE: 1700 x 380 MM

PRICE: 37 445,00 €

The Fortworth CS-VBM-3V-A vertical milling machine from a reputable company in Taiwan is characterized by high rigidity of the structure, obtained through the use of ribbed casting, scraped guides and precisely made all parts and subassemblies. The machine is mainly used for machining heavy details, where large table surfaces and large passages are required. It is equipped with a retractable spindle quill, an automatic central lubrication system, work lighting, guide covers and ergonomically placed controls.

Standard equipment:

Automatic feeds in 3 axes
Automatic central lubrication system
Cooling system
Work lights
Factory set of maintenance tools
Foundation bolts and leveling pads
English user manual
CE Declaration of Conformity

Optional equipment (payable additionally):

Stepless spindle speed adjustment
Digital readings for 3 axes
Automatic tool clamping
Rolling lead screws
Pneumatic table and headstock clamps
Dividing
Rotary table
Machine vice
A set of elements for fixing details on the machine table

Technical data	Unit	Value
Table dimensions (length)	[mm]	1700
Table dimensions (width)	[mm]	380
X axis feed range	[mm]	28
Y axis feed range	[mm]	875
Spindle taper	[-]	ISO R297 nr.50
Accelerated feed X	[mm/min]	380
Accelerated feed Y	[mm/min]	2880
Accelerated feed Z	[mm/min]	2880
T-slots (No. x width x spacing)	[mm]	18x5x70
Headstock motor power	[kW]	5,5
Distance between the vertical spindle and the center of the table	[mm]	100-600
Distance between the axis of rotation of the headstock to the column surface	[mm]	380
Arm stroke	[Nm]	12
X Y Z table travel	[mm]	1000
Cooling pump motor power	[W]	0,1
Rotational speed range of the vertical spindle	[rpm/min]	35 - 1250
The number of speeds of rotation of the vertical spindle	[-]	12
Headstock travel	[mm]	500
The distance from the surface of the working table to the ground	[mm]	800
Feed drive motor	[kW]	0,75
Vertical spindle feed	[mm/rpm]	0.05, 0.075, 0.1, 0.15, 0.2
Device dimensions	[mm]	2410x3200x2000
Machine weight	[kg]	4000
