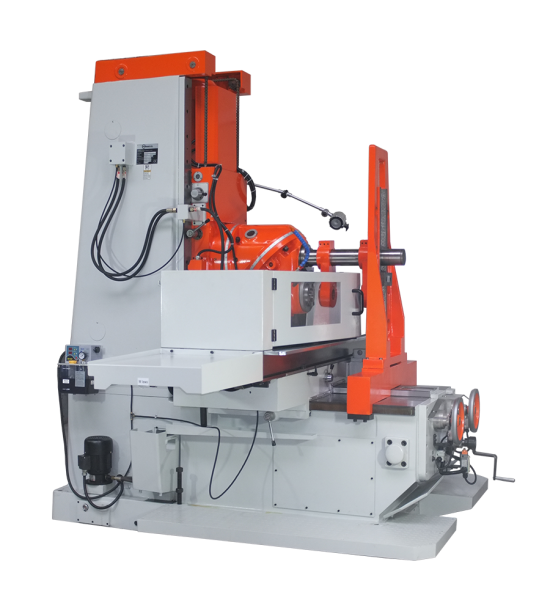

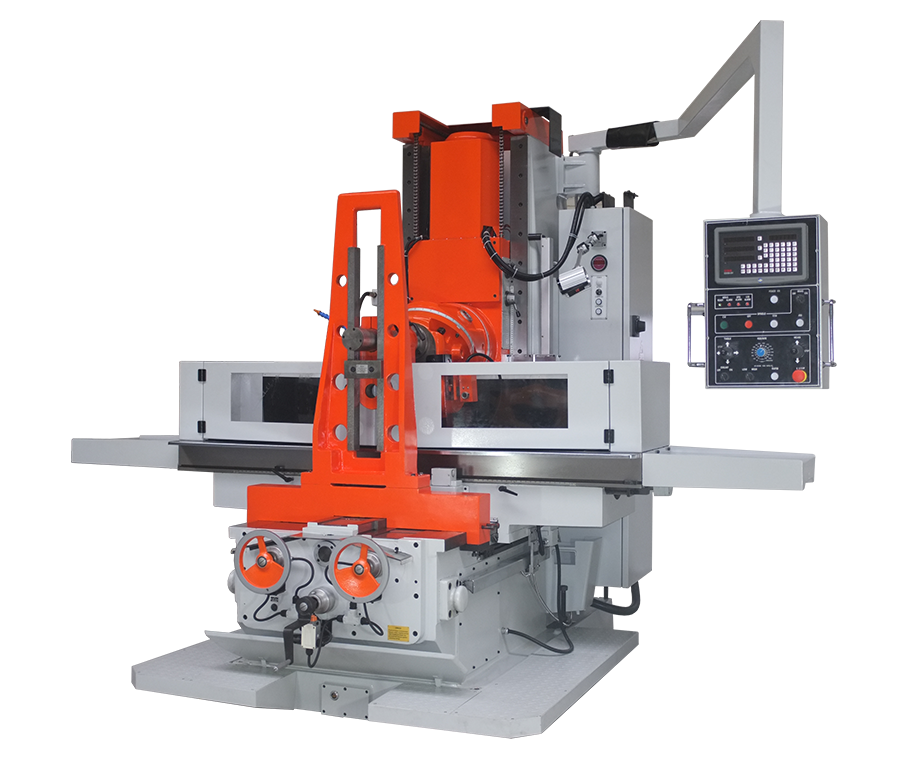

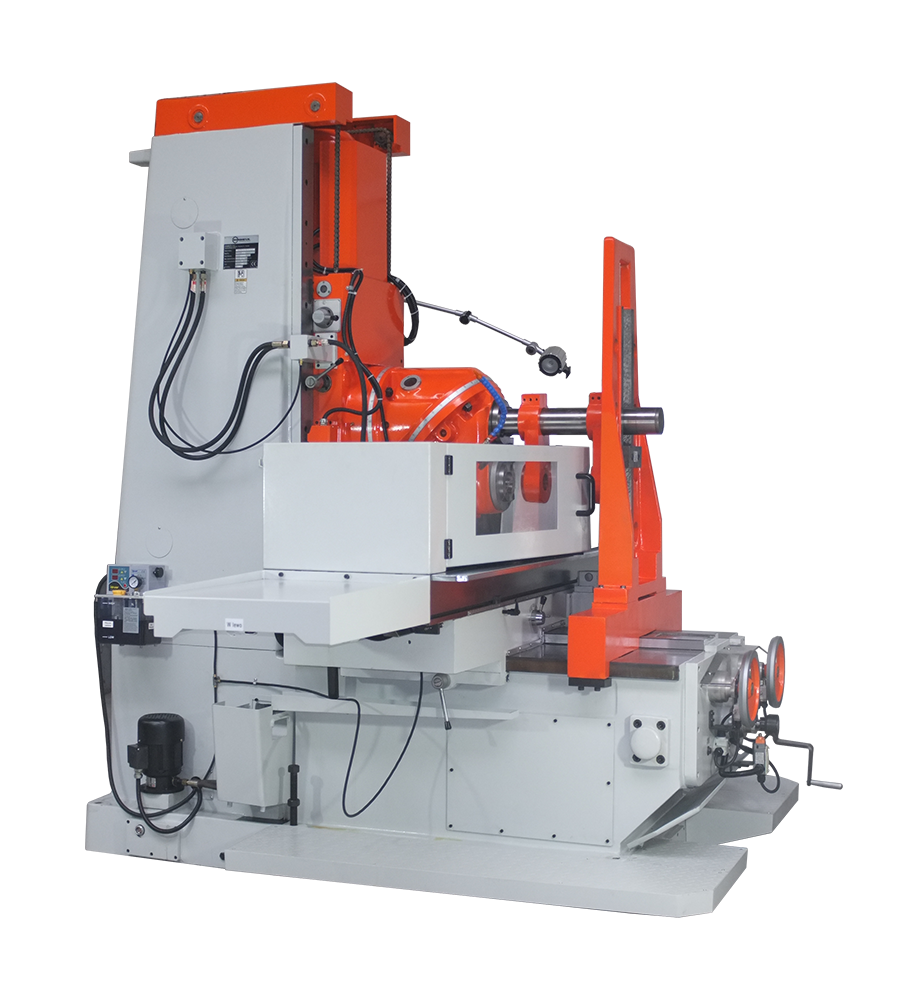

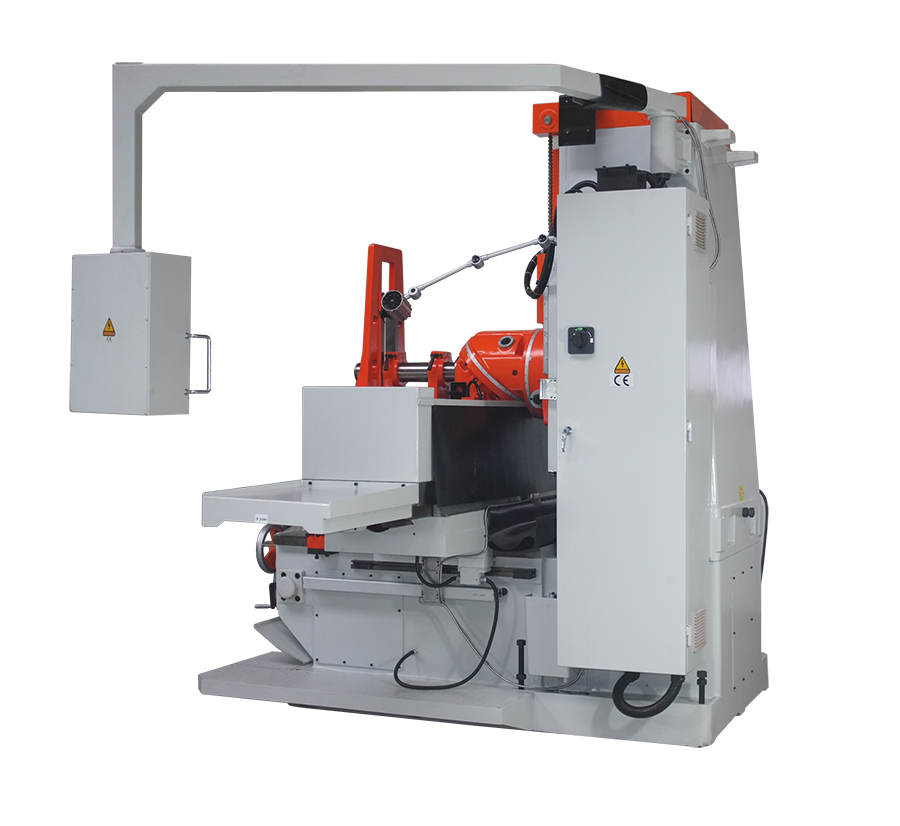

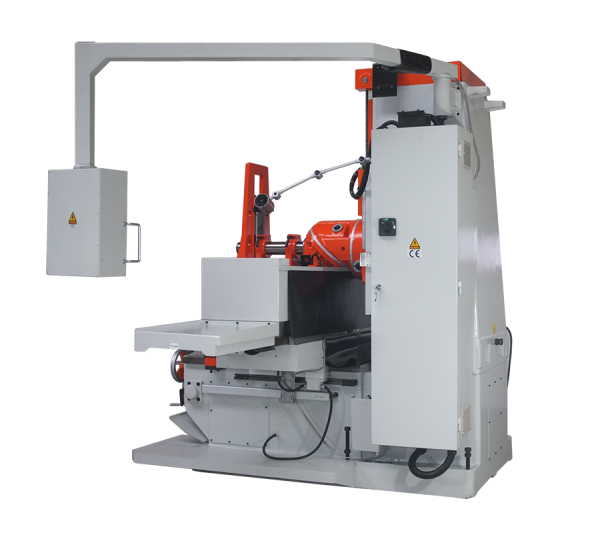

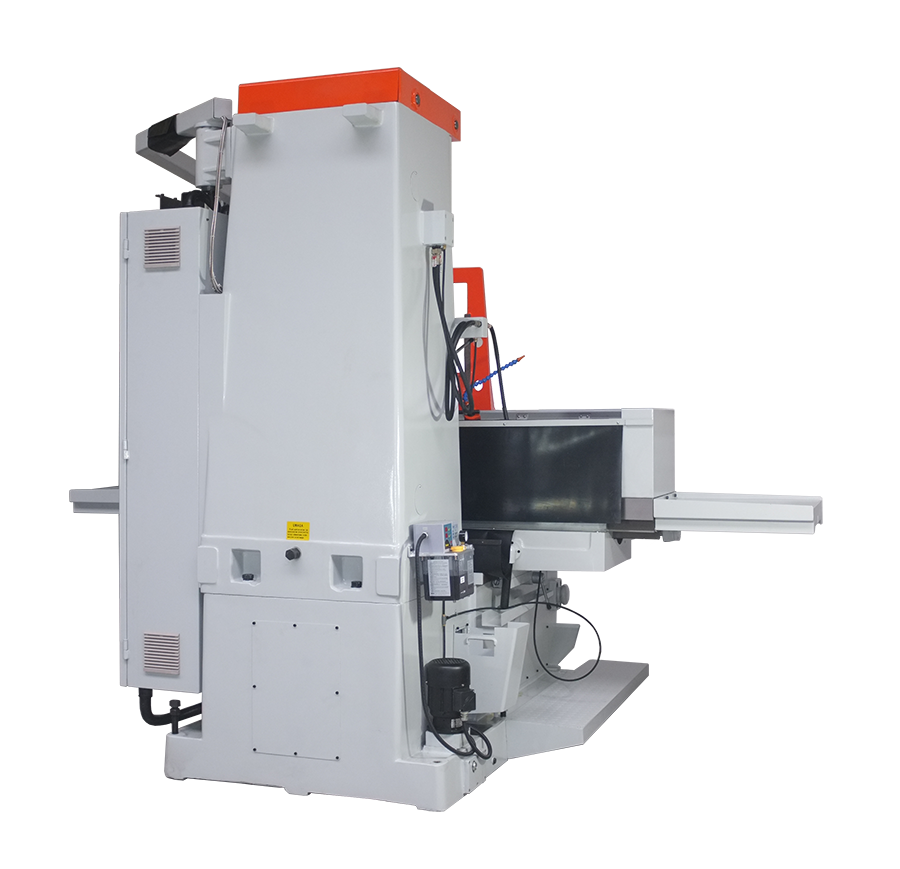

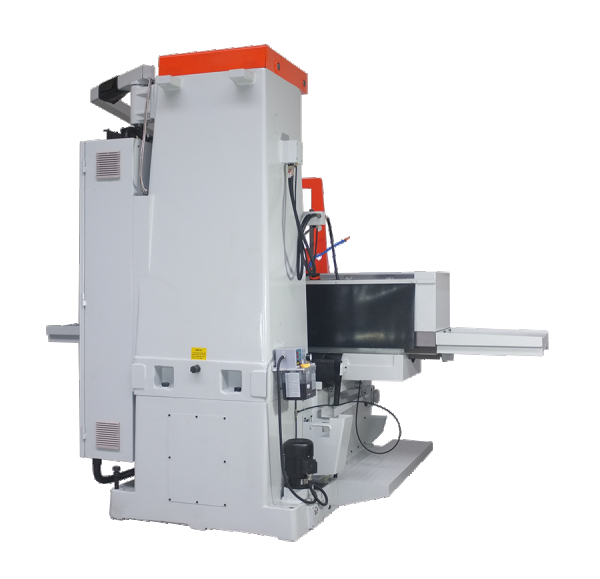

Strong and massive EUROMET FP215 vertical milling machine with a large work table based on wide rectangular guides, working in the X and Y axes and a rigid vertical swivel head in two planes, moved along vertical guides (Z axis) by means of an electric drive. It is a typical machine for industrial heavy workpiece machining. The main advantages of the milling machine are the placement of the workpiece at a constant height relative to the ground, rigid, strong structure, large table surface, the ability to work as a vertical and horizontal milling machine, large vertical travel of the head.
Technical data | Unit | Value |
---|---|---|
Table dimensions (length) | [mm] | 2100 |
Table dimensions (width) | [mm] | 500 |
X axis feed range | [mm] | 20 |
Y axis feed range | [mm] | 1800 |
Z axis feed range | [mm] | 700 |
Spindle speed range | [rpm/min] | 40 - 1600 |
Spindle taper | [-] | 7:24 ISO50 |
T-slots (No. x width x spacing) | [mm] | 20x4 |
Headstock motor power | [kW] | 7,5 |
Feed motor power | [Nm] | 2 |
Distance between the axis of rotation of the headstock to the column surface | [mm] | 610 |
X Y Z table travel | [mm] | 1500 / 670 |
Cooling pump motor power | [W] | 550 |
Cooling pump capacity | [l/min] | 120 |
Longitudinal / lateral / vertical travel speed | [mm/min] | 3500 / 10-900 |
MPG feed for the X Y axis | [mm/plot] | 12 stopni |
Device dimensions | [mm] | 4925x2380 |
Machine weight | [kg] | 7300 |
