EUROMET FP40 vertical milling machine
No rating
12 months of warranty

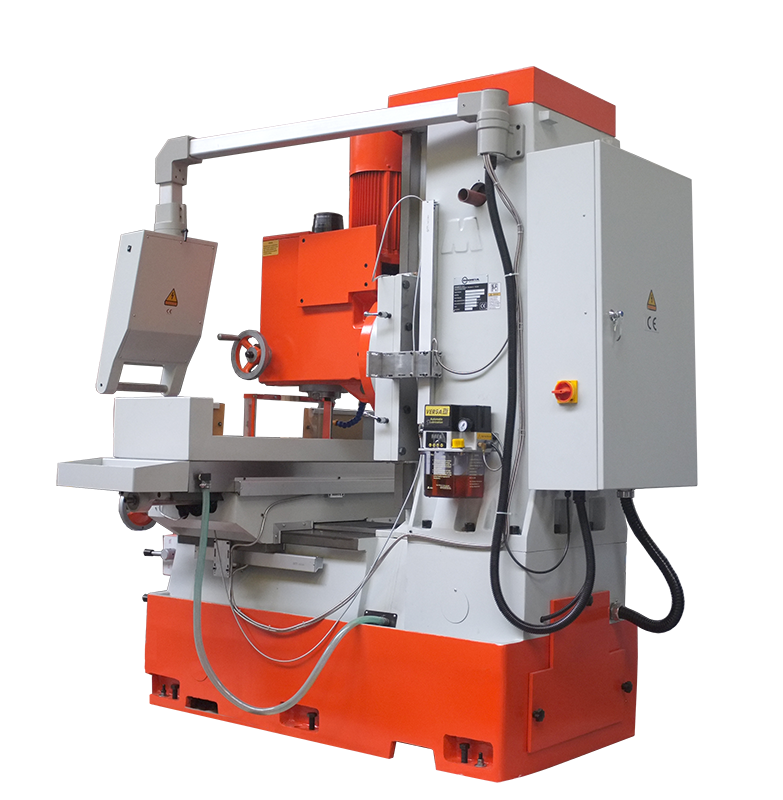

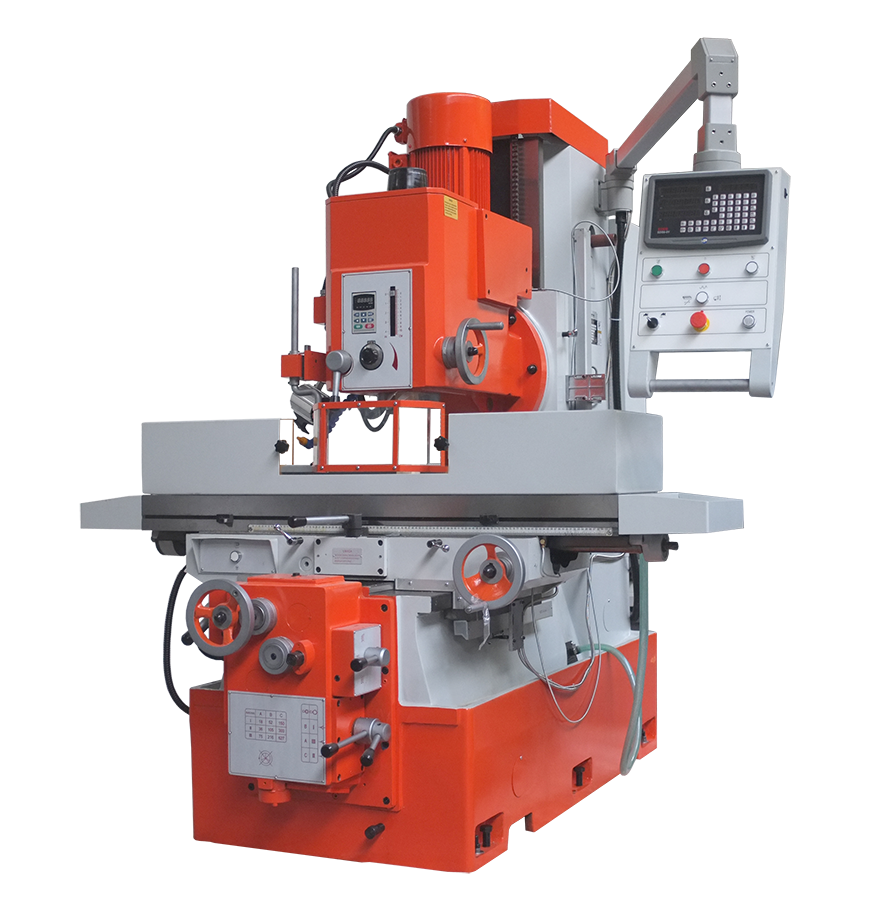

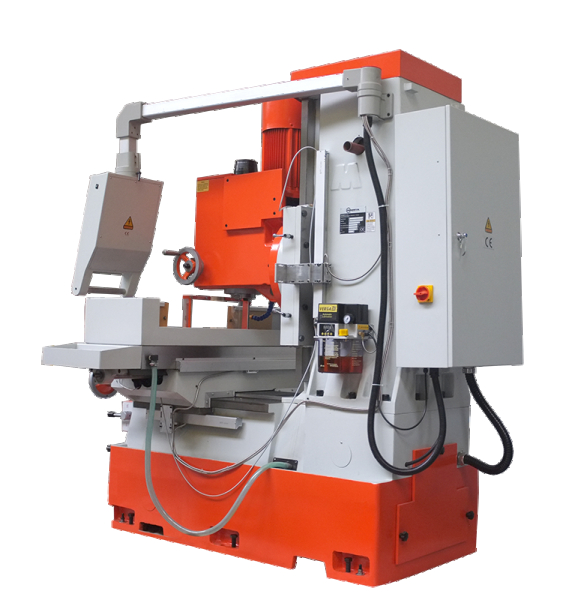

The EUROMET FP40 vertical milling machine is characterized by the possibility of moving the table along the X, Y axes and the entire headstock along the column guides. The work table is therefore at a constant height relative to the ground. This machine is ideal for processing tools, instruments, engine parts, etc.
Quantity
Add to cart
The EUROMET FP40 vertical milling machine is characterized by the possibility of moving the table along the X, Y axes and the entire headstock along the column guides. The work table is therefore at a constant height relative to the ground. This machine is ideal for processing tools, instruments, engine parts, etc.
The device is equipped with a stepless adjustment of the spindle speed, automatic feeds in the X, Y, Z axes and an extendable spindle quill. Large-area rectangular guides ensure high rigidity and positioning accuracy.
The most important advantages of the FP40 milling machine are: rigid structure and precise workmanship, which ensure high machining accuracy.
Standard equipment:
- Smooth spindle speed control (inverter)
- Automatic feeds in 3 axes (X, Y, Z)
- ISO 50/Morse 4 reduction
- Morse 4/3 reduction
- Morse 4/2 reduction
- ISO 50/∅40 reduction
- Set of holders for ISO 50 end mills
- foundation bolts

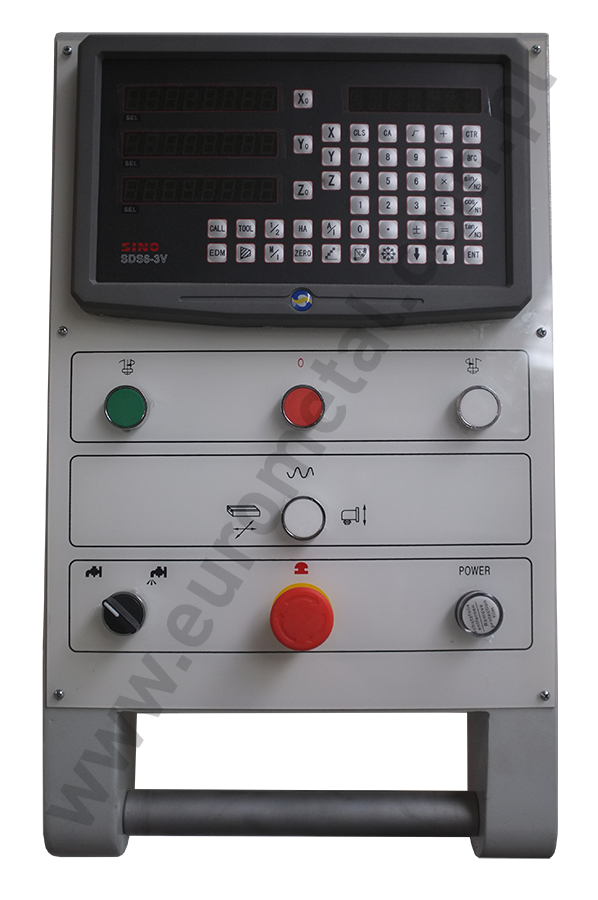

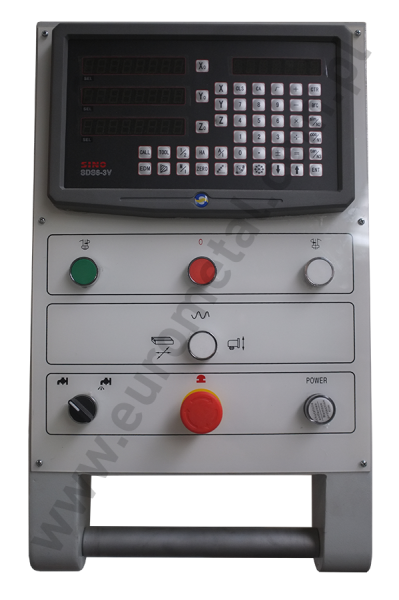

- Digital readings for 3 axes
- Automatic lubrication pump
- English user manual
- CE Declaration of Conformity
Optional equipment (additionally payable):
- Spindle programmer
- Dividing
- Machine vice
- Rotary table
- A set of elements for fixing the detail on the milling table
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 1400 |
| Table dimensions (width) | [mm] | 400 |
| X axis feed range | [mm] | 800 |
| Y axis feed range | [mm] | 400 |
| Spindle speed range | [rpm/min] | 18 - 1800 |
| Spindle taper | [-] | ISO50 |
| T-slots (No. x width x spacing) | [mm] | 3x18 |
| Headstock motor power | [kW] | 7,5 |
| The angle of rotation of the vertical headstock | [°] | ±30 |
| Servo motor power (X / Y / Z) | [mm] | 750 |
| Distance between the vertical spindle and the center of the table | [mm] | 150-650 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 520 |
| Cooling pump motor power | [W] | 40 |
| Automatic feed speed range | [-] | 18-627 (9 stopni) |
| Headstock travel | [mm] | 1,67 |
| Spindle extension | [mm/rpm] | 105 |
| Device dimensions | [mm] | 2355x1840x2480 |
| Machine weight | [kg] | 3860 |
