UNIVERSAL MILLING MACHINE FU 32 NOVA - TABLE 1325 X 320 MM
56 227,50 zł net
No rating
12 months of warranty

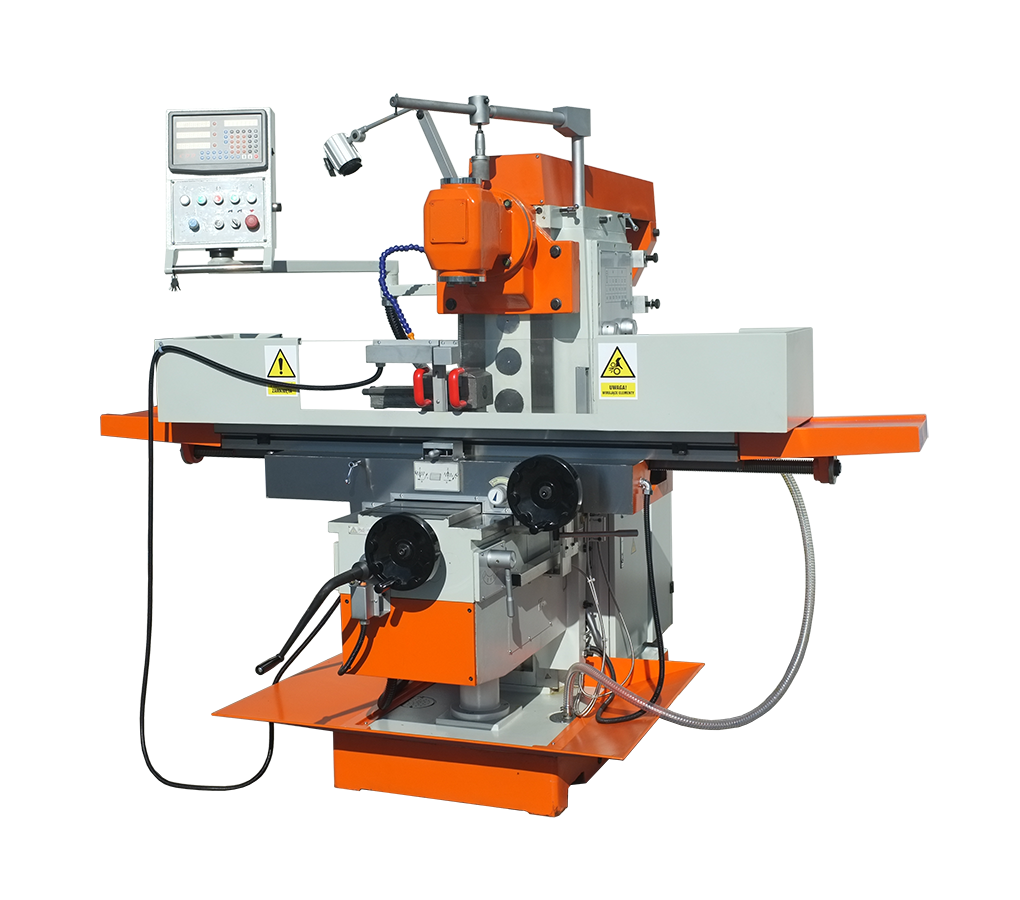

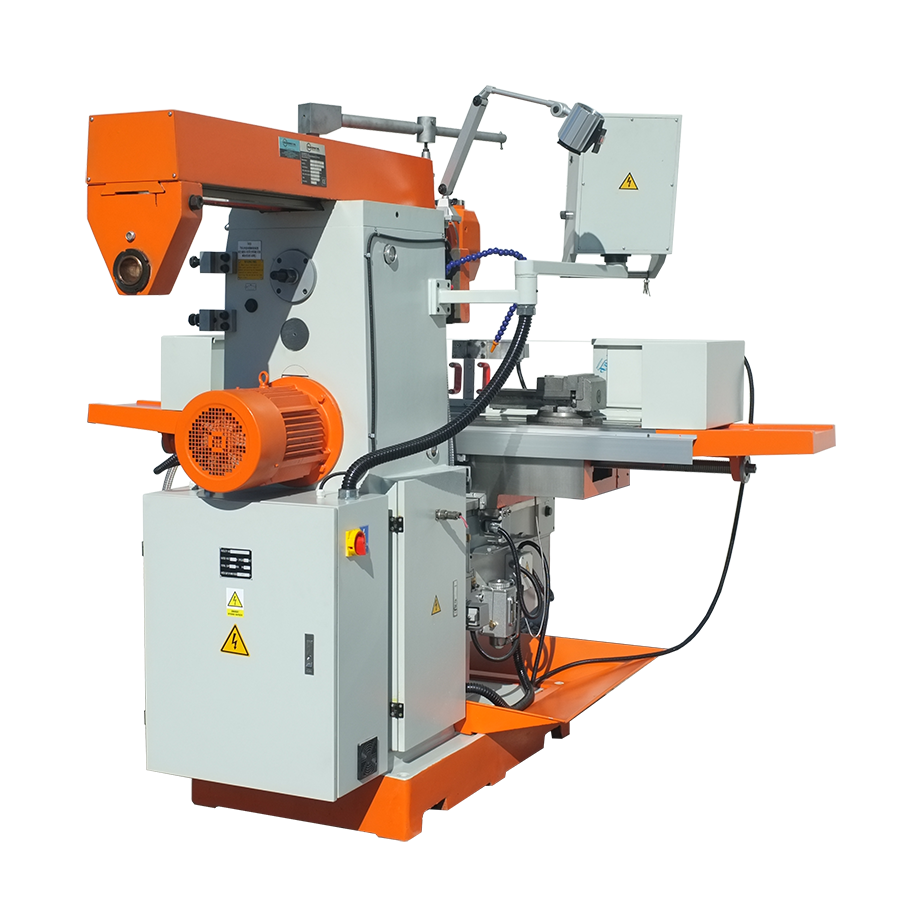

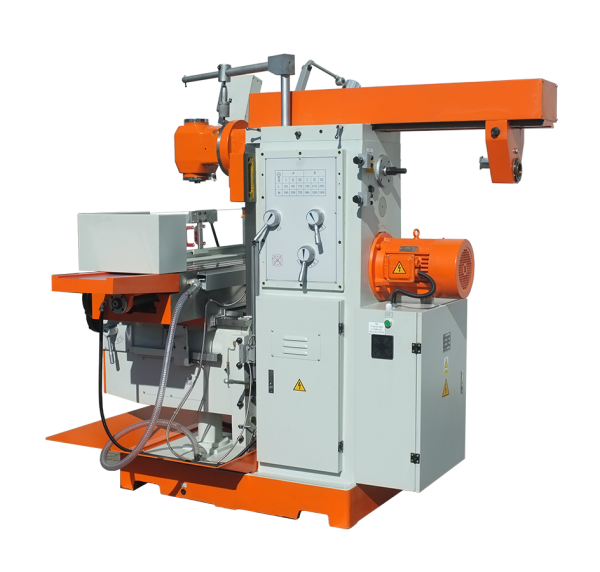

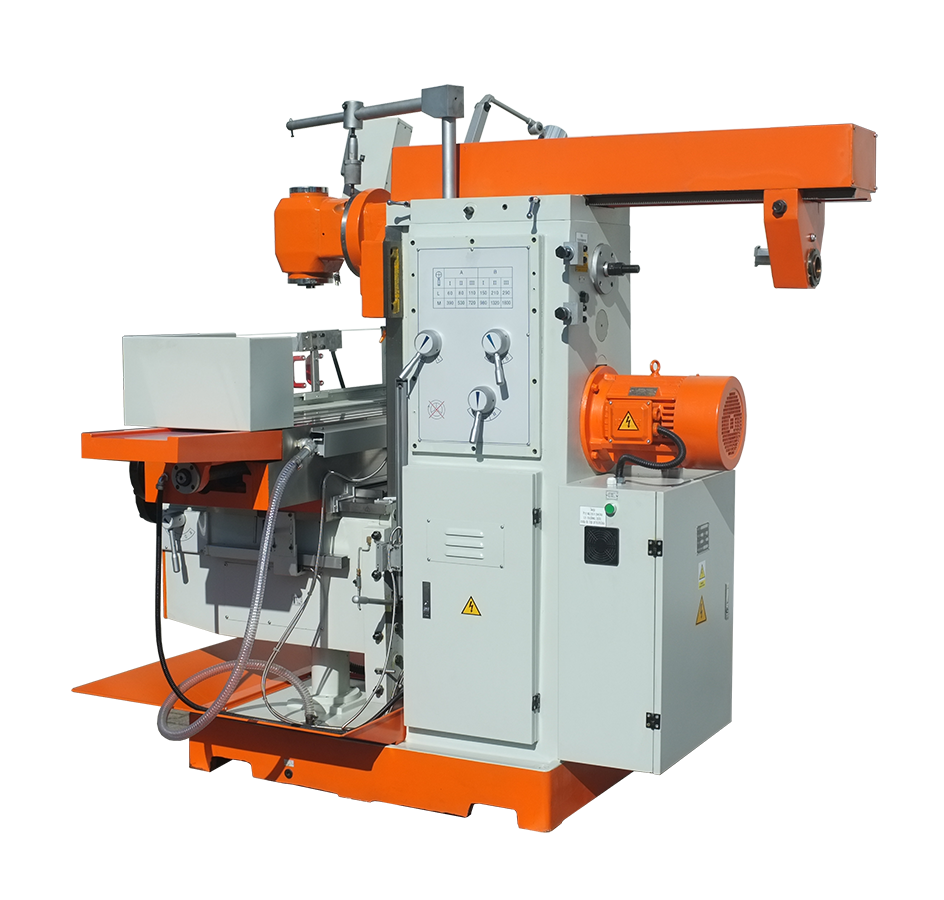

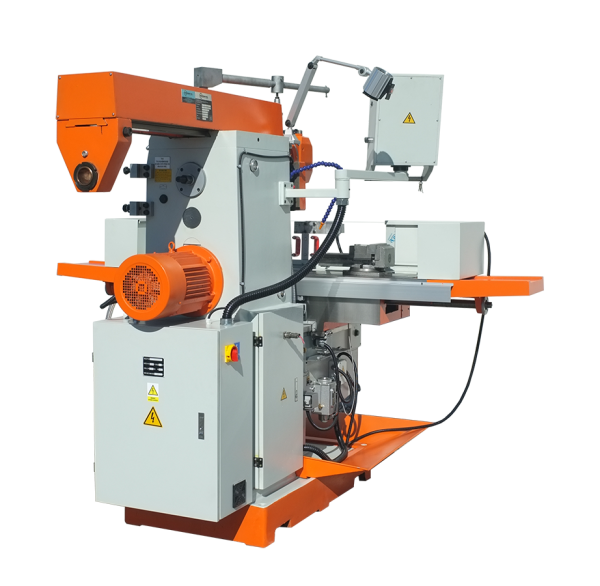

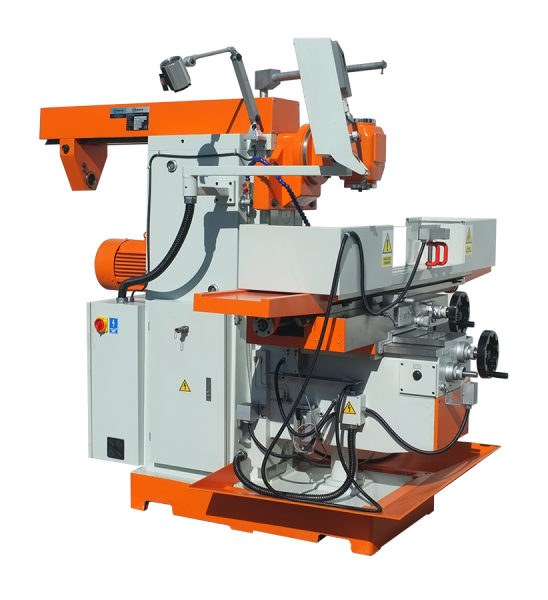

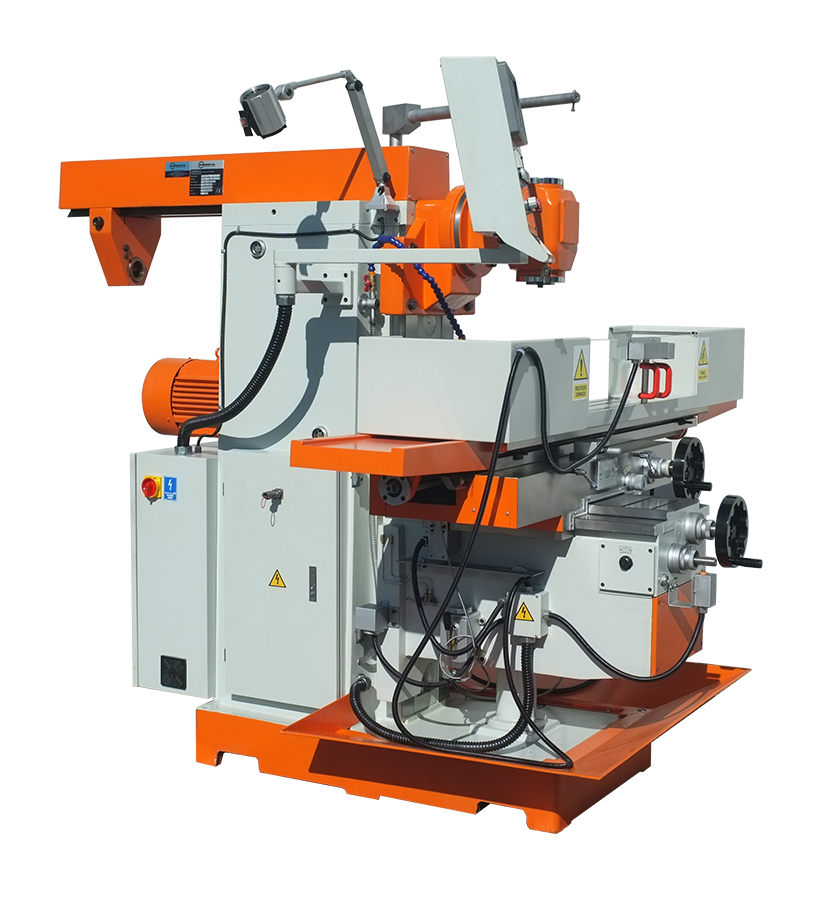

EUROMET FU 32 Nova universal milling machine - table 1325 x 320 mm mm is widely used in production plants and workshops. All universal milling machines offered by our company are very efficient machine tools for machining parts of machines and devices in both unit and serial production.
Quantity
Add to cart
EUROMET FU 32 Nova universal milling machine - table 1325 x 320 mm mm is widely used in production plants and workshops. All universal milling machines offered by our company are very efficient machine tools for machining parts of machines and devices in both unit and serial production.
The main features of the device:
- Patented drive design - servo motor with speed reduction
- Automatic feeds on all three axes, which allows us to perform the boring process
- A wide range of rotations 60-1800 rpm in 12 levels, so we can mill various materials
- A solid and durable housing ensures high stability and durability of the machine
- Separate switch for accelerated feed and automatic feed for increased process efficiency
Standard equipment:
- Steady rest
- Digital readout of parameters (3 axes)
- Workspace lighting
- Tool hitch pin
- Cooling system
- Oil dispenser
- Spanner
- Machine vice, 160mm wide
- User manual in English
Optional equipment (paid extra):
- Rotary table
- Schneider electric parts with CE certificate
- Table protection with safety switch
- Headstock protection
- Automatic lubrication
- ESM-BA301 safety relay and two-channel STOP button
- Machine vice 8 "/ 10"
- 5 "/ 6" / 8 "swivel vise, 2-axis swivel
- A set of elements for attaching the handles to the table
- Clamping handles
- Face milling cutter, NT40, Ø22mm
- Face milling cutter, NT40, Ø27mm
- 45˚ face milling cutter, Ø63mm, 4 teeth
- 45˚ face milling cutter, Ø80mm, 5 teeth
- Drill chucks B22, 5-20mm
- Rotary table vertical / horizontal 6 "/ 8" / 10 "
- Universal divider
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 1325 |
| Table dimensions (width) | [mm] | 320 |
| X axis feed range | [mm] | 1100 |
| Y axis feed range | [mm] | 320 |
| Z axis feed range | [mm] | 450 |
| Spindle speed range | [rpm/min] | 60 - 1800 |
| Table load capacity | [kg] | 500 |
| Spindle taper | [-] | ISO No.40 (7:24) |
| Accelerated feed X | [mm/min] | 1200 |
| Accelerated feed Y | [mm/min] | 800 |
| Accelerated feed Z | [mm/min] | 600 |
| T-slots (No. x width x spacing) | [mm] | 3x18x70 |
| Distance between the center of the horizontal headstock and the center of the worktable | [mm] | 20-470 |
| Feed rate (X / Y / Z) | [mm/min] | 30-750/20-500/15-375 8 stopni |
| Headstock motor power | [kW] | 5,5 |
| Feed motor power | [Nm] | 10 |
| Vertical head rotation | [°] | +/- 90 opt. |
| Device dimensions | [mm] | 2245x2100x1870 |
| Machine weight | [kg] | 2450 |
