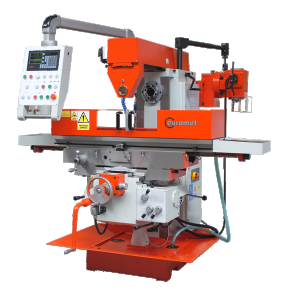

EUROMET FUS 36 UNIVERSAL MILLING MACHINE - TABLE: 1600 X 360 MM

78 828,75 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Adrian Miotk
E-mail: adrian.miotk@eurometal.com.pl
Telefon: 603400333

EUROMET FUS 36 universal milling machine - table: 1600 x 360 mm is a machine for processing machine and device parts in both unit and serial production. The device has automatic feeds on all three axes, which enables the boring process to be performed.

Quantity
Add to cart

EUROMET FUS 36 universal milling machine - table: 1600 x 360 mm is a machine for processing machine and device parts in both unit and serial production.
The main features of the device:
  • Patented drive design - servo motor with speed reduction
  • Automatic feeds on all three axes, which enables the boring process to be performed
  • A wide range of rotations 60-1800 rpm in 12 levels, so we can mill various materials
  • A solid and durable housing ensures high stability and durability of the machine
  • Separate switch for accelerated feed and automatic feed for increased process efficiency
  • Head swivel 45 °

Wyposażenie standardowe:
  • Podtrzymka
  • Odczyt cyfrowy dla 3 osi
  • Oświetlenie przestrzeni roboczej
  • Trzpień zaciągu narzędzia
  • System chłodzenia
  • Dozownik oleju
  • Klucz do nakrętek
  • Instrukcja obsługi w języku polskim
  • Deklaracje zgodności CE

Technical data Unit Value
Table dimensions (length) [mm] 1600
Table dimensions (width) [mm] 360
X axis feed range [mm] 1300
Y axis feed range [mm] 320
Z axis feed range [mm] 450
Spindle speed range [rpm/min] 60 - 1800
Table load capacity [kg] 500
Spindle taper [-] ISO No.50
Accelerated feed X [mm/min] 1200
Accelerated feed Y [mm/min] 800
Accelerated feed Z [mm/min] 600
T-slots (No. x width x spacing) [mm] 3x18x80
Distance between the center of the horizontal headstock and the center of the worktable [mm] 20-470
Feed rate (X / Y / Z) [mm/min] 30-750/20-500/15-375 8 stopni
Headstock motor power [kW] 5,5
Feed motor power [Nm] 10
Vertical head rotation [°] +/- 45° opcjonalnie
Beam extension [mm] 550
Device dimensions [mm] 2520x2100x2000
Machine weight [kg] 2800
