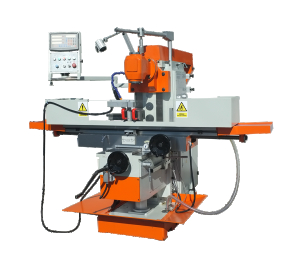

UNIVERSAL MILLING MACHINE FU 30 NOVA - TABLE: 1270 X 320 MM
65 000,00 zł net
No rating
12 months of warranty
EUROMET FU 30 Nova universal milling machine - table: 1270 x 320 mm is widely used in production plants and workshops. All universal milling machines offered by our company are very efficient machine tools for machining parts of machines and devices in both unit and serial production.
Quantity
Add to cart
EUROMET FU 30 Nova universal milling machine - table: 1270 x 320 mm is widely used in production plants and workshops. All universal milling machines offered by our company are very efficient machine tools for machining parts of machines and devices in both unit and serial production.
The main features of the device:
- Patented design - servo-driven drive with speed reduction
- Automatic feeds on all three axes, which allows us to perform the boring process
- A wide range of speeds of 35-1500 rpm in 12 levels, thanks to which we can mill various materials
- Separate switch for accelerated feed and automatic feed for increased process efficiency
Standard equipment:
- Steady rest
- Digital readout of parameters (3 axes)
- Workspace lighting
- Tool draw pin
- Cooling system
- Oil dispenser
- Spanner
- User manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- Rotary table
- Schneider electric parts with CE certificate
- Table protection with safety switch
- Headstock protection
- Automatic lubrication
- ESM-BA301 safety relay and two-channel STOP button
- Machine vice 8 "/ 10"
- 5 "/ 6" / 8 "swivel vise, 2-axis swivel
- A set of elements for attaching the handles to the table
- Clamping handles
- Face milling cutter, NT40, Ø22mm
- Face milling cutter, NT40, Ø27mm
- 45˚ face milling cutter, Ø63mm, 4 teeth
- 45˚ face milling cutter, Ø80mm, 5 teeth
- Drill chucks
- Rotary table vertical / horizontal 6 "/ 8" / 10 "
- Universal divider
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 1270 |
| Table dimensions (width) | [mm] | 320 |
| X axis feed range | [mm] | 720 |
| Y axis feed range | [mm] | 300 |
| Z axis feed range | [mm] | 400 |
| Spindle speed range | [rpm/min] | 35 - 1500 |
| Table load capacity | [kg] | 300 |
| Spindle taper | [-] | ISO No.40 (7:24) |
| Accelerated feed X | [mm/min] | 1335 |
| Accelerated feed Y | [mm/min] | 1335 |
| Accelerated feed Z | [mm/min] | 1000 |
| T-slots (No. x width x spacing) | [mm] | 3x14x80 |
| Table rotation | [°] | +/- 45 opt. |
| Distance between the center of the horizontal headstock and the center of the worktable | [mm] | 75-475 |
| Feed rate (X / Y / Z) | [mm/min] | XY: 30-830 Z:23-625 |
| Headstock motor power | [kW] | 3 |
| Feed motor power | [Nm] | 10 |
| Device dimensions | [mm] | 1720x1680x1730 |
| Machine weight | [kg] | 1500 |
