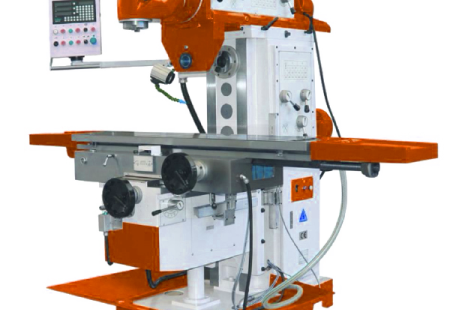

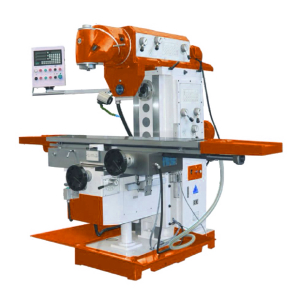

EUROMET FU 32A / 3 UNIVERSAL MILLING MACHINE - TABLE: 1600 X 360 MM

86 830,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Edyta Skrzypek
E-mail: edyta.skrzypek@eurometal.com.pl
Telefon: 609504408

The most popular model of universal milling machines, the FU32A / 3 machine is characterized by a simple structure, rigid structure and proven solutions of individual components. It is characterized by high processing possibilities and a wide, general scope of application. In addition, the milling machine has a wide range of accessories: vertical swivel head, digital readouts, central lubrication system, protection of the table working zone and automatic feeds in the X, Y, Z axes.

Quantity
Add to cart

The most popular model of universal milling machines, the FU32A / 3 machine is characterized by a simple structure, rigid structure and proven solutions of individual components. It is characterized by high processing possibilities and a wide, general scope of application. In addition, the milling machine has a wide range of accessories: vertical swivel head, digital readouts, central lubrication system, protection of the table working zone and automatic feeds in the X, Y, Z axes.

Standard equipment:
  • Vertical head
  • Digital readouts for 3 axes, LCD type
  • Automatic feed for 3 axes
  • Cooling system
  • Work lighting
  • Spindle steady rest
  • Long and short shank
  • A set of holders for end milling cutters
  • ISO / Morse reduction
  • User manual in English
  • Swivel table
  • CE declaration of conformity
Optional equipment (paid additionally):
  • Self-propelled chiselling head
  • Divider
  • Rotary table
  • Machine vice
  • Set of elements for clamping the workpiece on the machine table

Technical data Unit Value
Table dimensions (length) [mm] 1600
Table dimensions (width) [mm] 360
X axis feed range [mm] 1200
Y axis feed range [mm] 1200
Z axis feed range [mm] 1200
Spindle speed range [rpm/min] 58 - 1800
Spindle taper [-] ISO 50
T-slots (No. x width x spacing) [mm] 5/14/63
Feed rate (X / Y / Z) [mm/min] 20 - 360, 20 - 360, 6 - 112
Headstock motor power [kW] 4
Feed motor power [Nm] 0,55
Distance between the vertical spindle and the center of the table [mm] 0-400
Distance between the axis of rotation of the headstock to the column surface [mm] 175
Table rotation angle [°] ± 45
Beam extension [mm] 500
X Y Z table travel [mm] 1000, 300, 400
Automatic X Y Z table travel [mm] 1000, 260, 400
Cooling pump motor power [W] 90
Cooling pump capacity [l/min] 25
Device dimensions [mm] 2070x2025x1950
Machine weight [kg] 2300
