CNC machining center

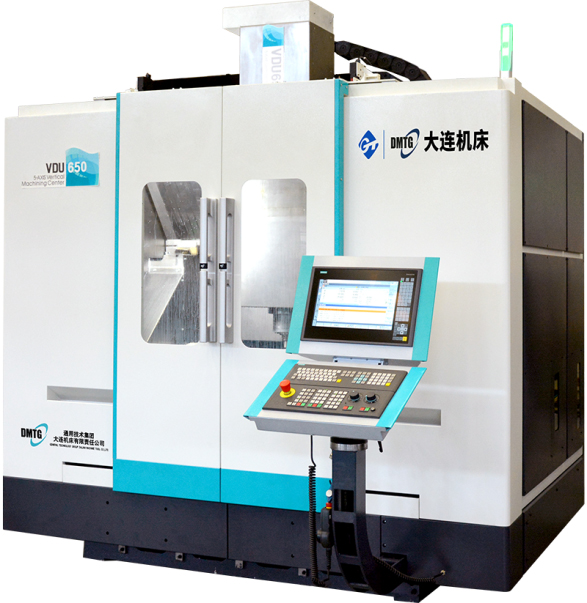

DMTG VDU650 cnc machining center

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The DMTG VDU650 machining center is a 5-axis machining center with an extremely high accelerated travel speed - up to 60 m/min in all axes, thanks to which the machining time is reduced to a minimum.

The DMTG VDU650 machining center is a 5-axis machining center with an extremely high accelerated travel speed - up to 60 m/min in all axes, thanks to which the machining time is reduced to a minimum.

Standard equipment:
  • Siemens 840D controller
  • 12,000 rpm spindle with direct drive
  • 20-position tool magazine
  • Oil-cooled spindle
  • Accelerated travel – 45 m/min in all axes
  • Chip conveyor
  • Spindle blow-by
  • Rigid tapping function
  • Compressed air gun
  • Cooled electrical cabinet
  • MPG knob
  • USB port
  • CE standard
  • Alarm light
  • Maintenance tools
  • User manual in English
Optional equipment (additionally paid):
  • Spindle 15,000 rpm
  • 30-position tool magazine
  • Cooling through the spindle 2 Mpa
  • Renishaw TS27R tool probe
  • Renishaw OMP60 workpiece probe

Technical data Unit Value
Table surface (length) [mm] 650
Table surface (width) [mm] 650
X axis travel [mm] 650
Y axis travel [mm] 650
Z axis travel [mm] 500
Table load [kg] 600
A axis rotation [°] +/- 130
C axis rotation [°] 360
Spindle taper [-] HSK-A63
Spindle speed [rpm/min] 0 - 12000
Spindle motor power [kW] 7,5
Rapid feed (X / Y / Z) [m/min] 45 / 45 / 45
Working feed (X / Y / Z) [m/min] 10
Working feed (A / C) [rpm/min] 25
Tool magazine capacity [pcs] 20
Tool diameter [mm] 75 / 125
Tool length [mm] 300
Tool weight [kg] 8
Tool change time [s] 6
Dimensions (LxWxH) [mm] 2600 x 4900
Weight [kg] 15000
