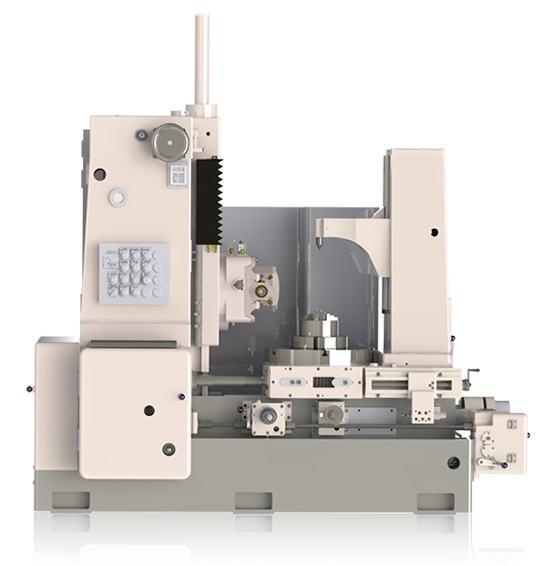

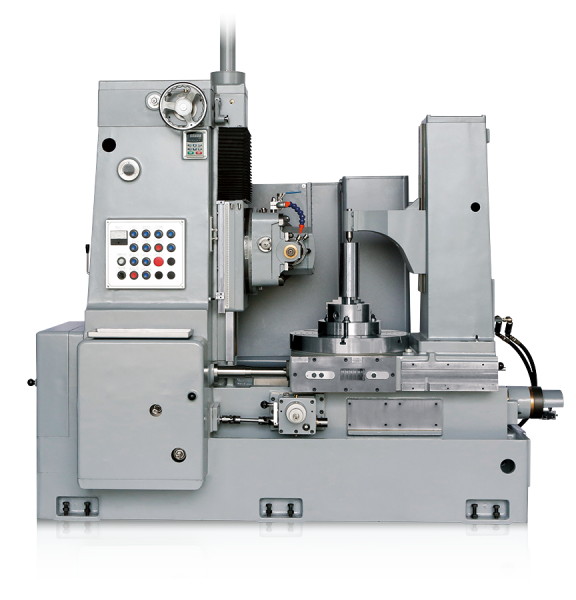

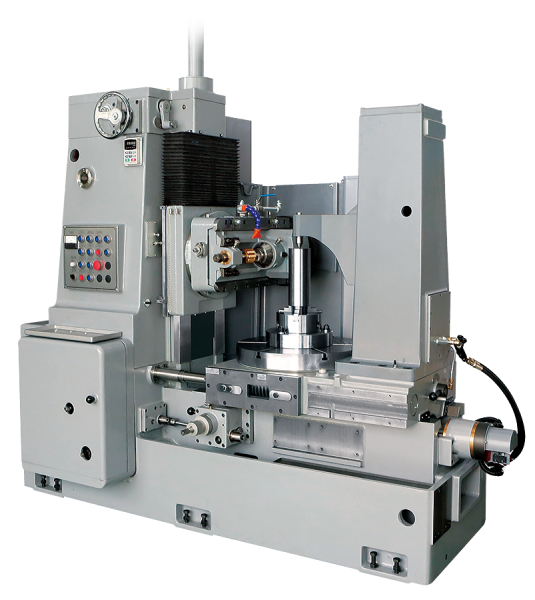

Y.S-V600 Hobbing Machine
474 760,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The Y.S-V600 hobbing machine is equipped with a central lubrication and cooling system. It has safety-related protection of the working space and moving parts of the machine. The machine is used in serial, small-lot and unit production of gears, wormwheels, spline shafts and other shapes located on external cylindrical surfaces.
The Y.S-V600 hobbing machine is equipped with a central lubrication and cooling system. It has safety-related protection of the working space and moving parts of the machine. The machine is used in serial, small-lot and unit production of gears, wormwheels, spline shafts and other shapes located on external cylindrical surfaces. The device is easy to use and adjust. It has the function of automatic end of the cycle. When the machining process is complete, the hobbing machine stops automatically. Then the headstock and the working table will return to the starting position with an accelerated feed.
Standard equipment:
- tool mandrels
- PLC driver
- shift wheels
- safety covers
- hydraulic system and cooling system
- manual in English
- CE declaration
| Technical data | Unit | Value |
|---|---|---|
| Module | [mm] | 6 |
| Workpiece diameter with working column (module less than 1.5) | [mm] | 550 |
| Workpiece diameter with working column (module greater than 1.5) | [mm] | 600 |
| Machining width | [mm] | 370 |
| Minimum number of teeth | [-] | 8 |
| Helix angle | [°] | +/- 45 |
| Steady rest vertical travel | [mm] | 400 |
| Workpiece diameter without working column | [mm] | 800 |
| Distance between the spindle axis and the table surface | [mm] | 155 - 450 |
| Distance between the spindle axis and the table axis | [mm] | 50 - 550 |
| Table diameter | [mm] | 530 |
| Spindle speed | [rpm/min] | 0 - 250 |
| Hole in the table | [mm] | 85,5 |
| Spindle taper | [-] | Morse No 4 |
| Milling diameter | [mm] | 125 |
| Milling length | [mm] | 150 |
| Knife travel | [mm] | 50 |
| Tool shank diameter | [mm] | 22,225/27/31,75 |
| Axial feed range | [mm/rpm] | 0,3 - 3,3 |
| Main engine power | [kW] | 4,0/4,6 |
| Motor power for axial travel | [kW] | 0,75 |
| Dimensions | [mm] | 2300x1250x2350 |
| Weight | [kg] | 5000 |
