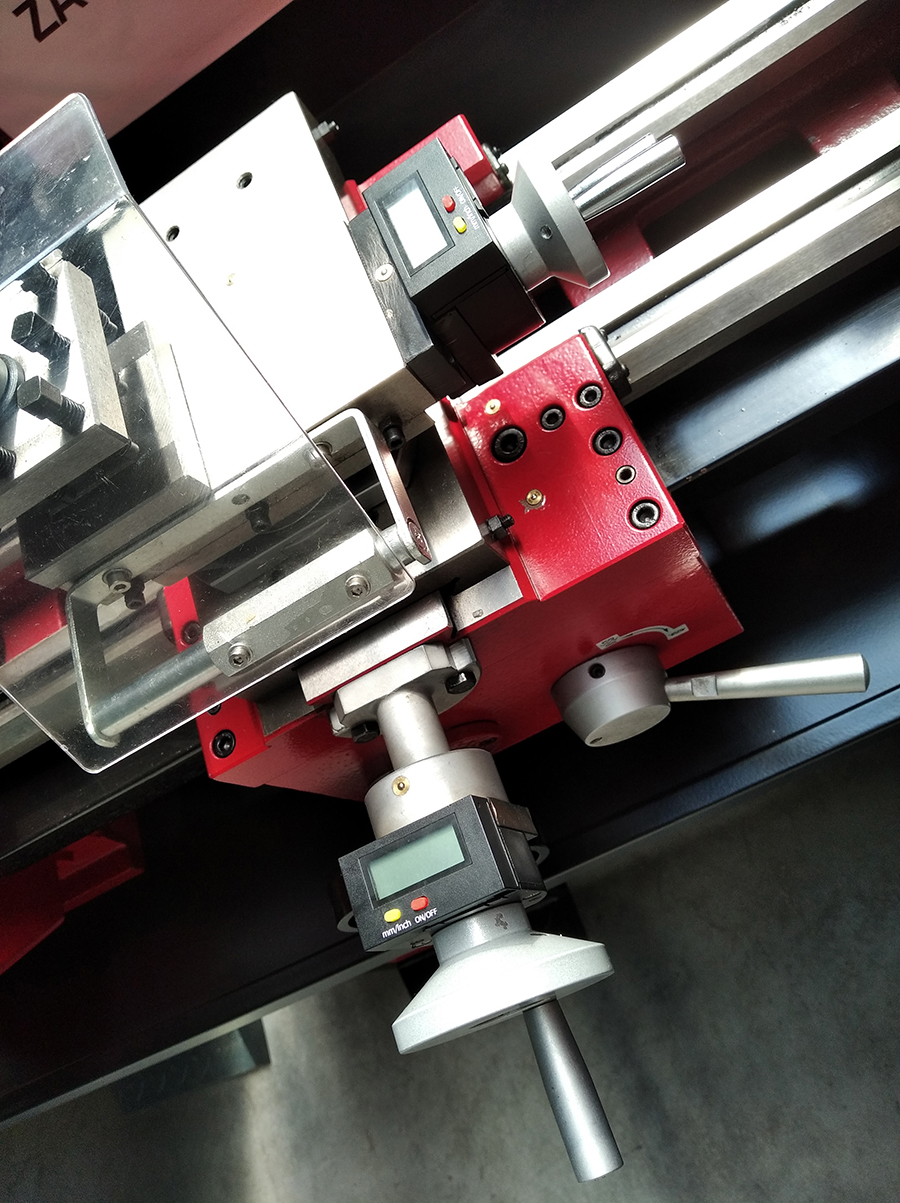

The VD250x550 universal mini lathe is a machine of small dimensions, with electronically controlled rotation speed, easy to use with intuitive adjustments. It has a wide range of possible works, it can perform external, internal, face and final turning. It is equipped with the possibility of cutting both metric and inch threads. It can be used both in home workshops and for small works in company workshops. An excellent lathe for training in a profession in schools, institutes and other positions where precision and speed of production of details and repair of other devices is essential.
The VD250x550 universal mini lathe is a machine of small dimensions, with electronically controlled rotation speed, easy to use with intuitive adjustments. It has a wide range of possible works, it can perform external, internal, face and final turning. It is equipped with the possibility of cutting both metric and inch threads. It can be used both in home workshops and for small works in company workshops. An excellent lathe for training in a profession in schools, institutes and other positions where precision and speed of production of details and repair of other devices is essential.
Technical data | Unit | Value |
---|---|---|
Turning diameter over bed | [mm] | 250 |
Turning length | [mm] | 550 |
Spindle flight | [mm] | 38 |
Spindle speed range | [rpm/min] | 125 - 2000 |
Spindle bore cone | [-] | MT3 |
Maximum tool dimensions | [mm] | 0,20-3,5(18 wartości) |
Longitudinal feed range | [mm/rpm] | 0,1 - 0,2 |
Przesuw poprzeczny | [mm] | 420 |
Cross travel range | [mm/rpm] | 0,07 - 0,52 |
Metric thread | [mm] | 0,4-3,0 |
Inch thread | [-] | 10-44 T.P.I. |
Extend the tailstock quill | [mm] | 80 |
Tailstock sleeve tip | [-] | MT2 |
Engine power | [kW] | 1,38 |
Tool post travel | [mm] | 230 |
Dimensions | [mm] | 1180x640x570 |
Weight | [kg] | 145 |
