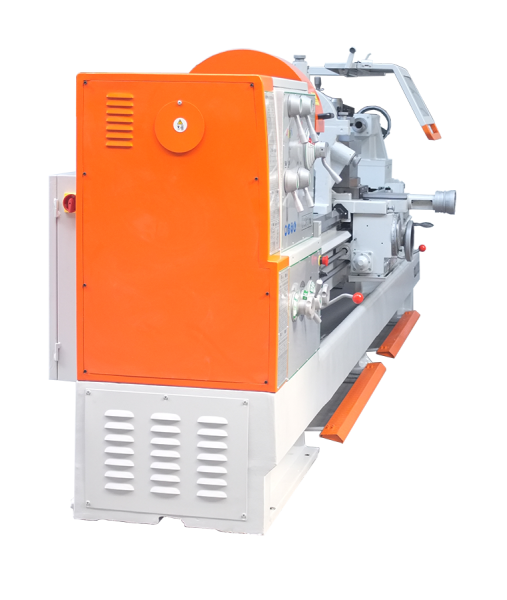

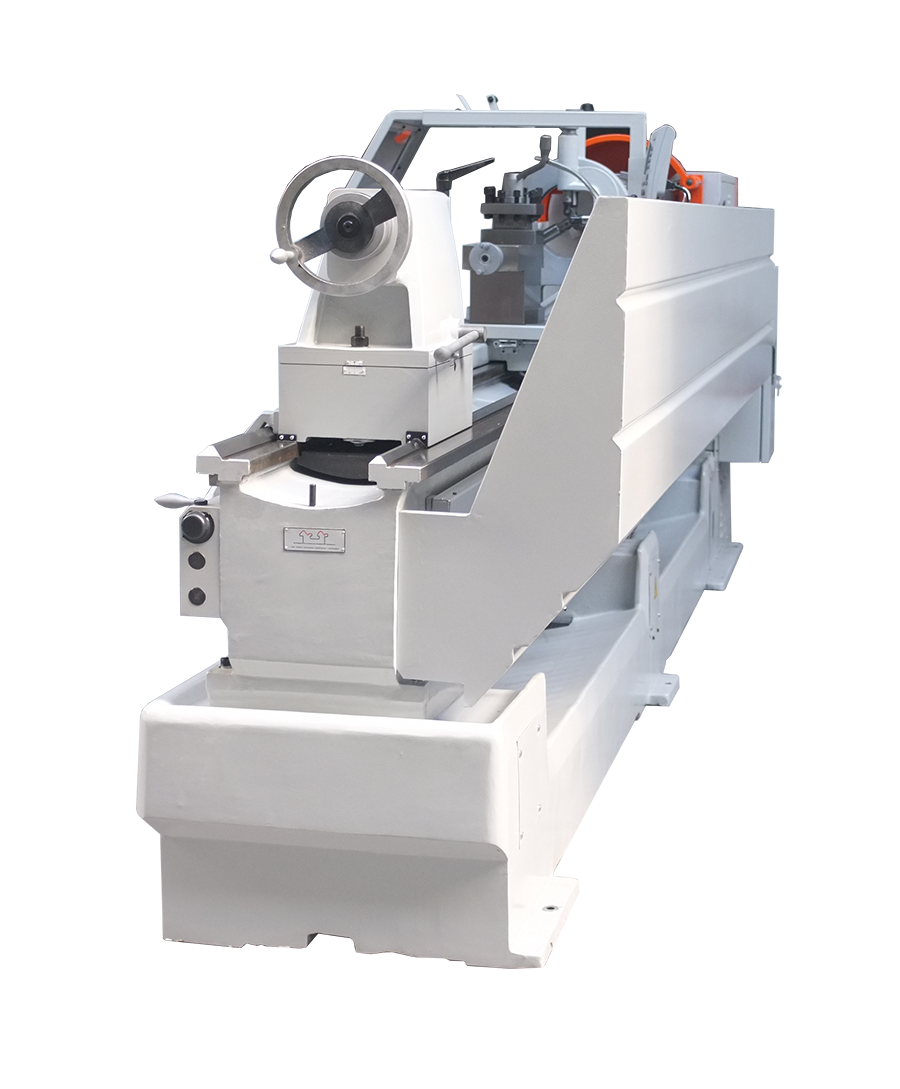

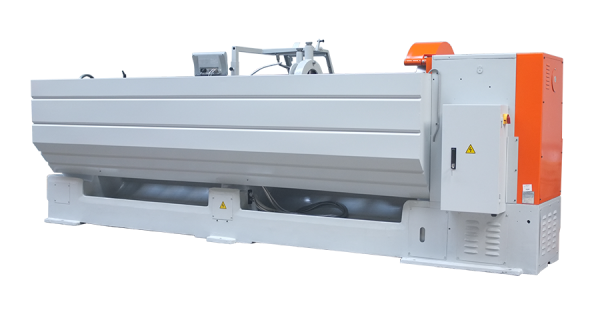

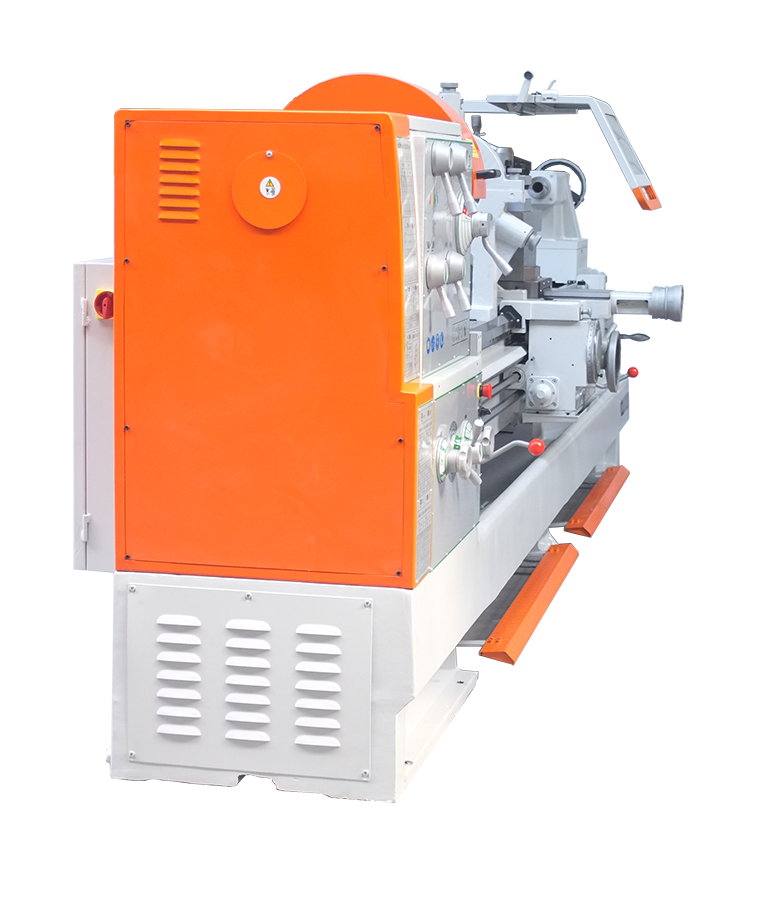

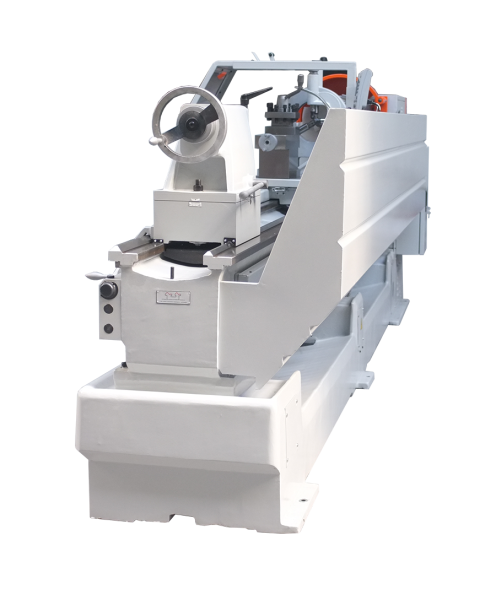

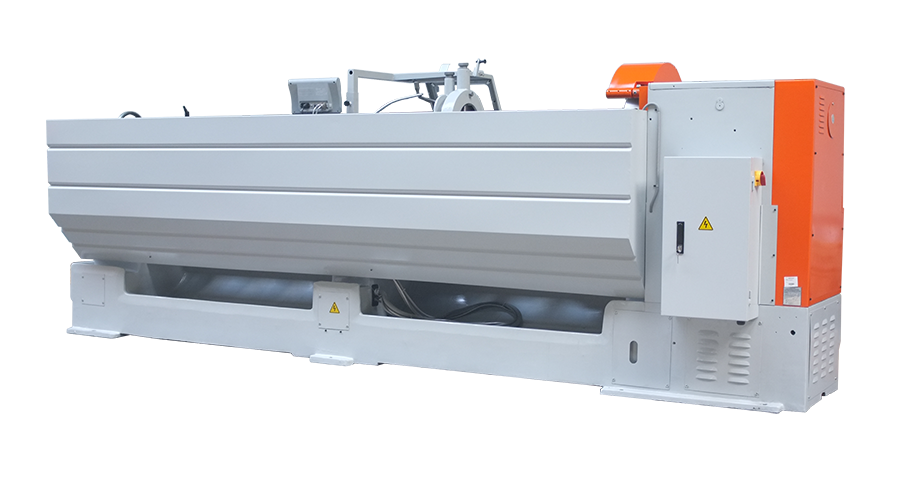

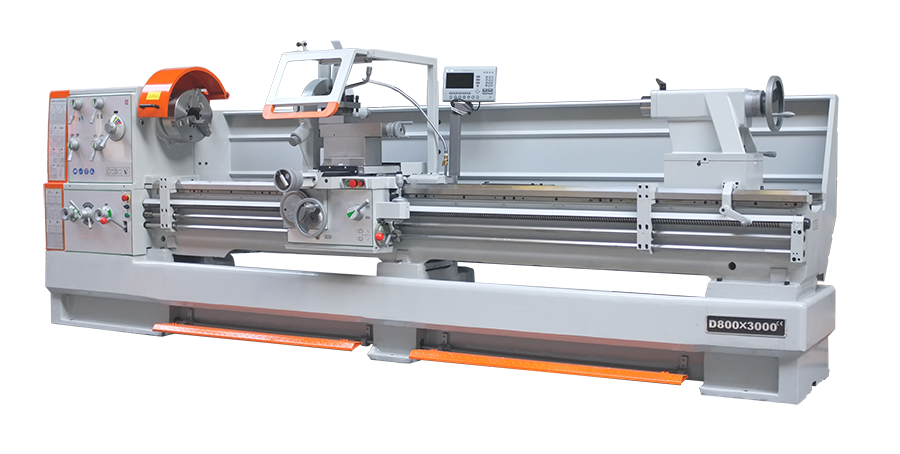

UNIVERSAL LATHE EUROMET D800X3000
Priced individually
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The EUROMET D800x3000 universal lathe is the largest conventional lathe in the D series. The machine is designed for continuous operation in serial production plants. Ideally suited for machining large details.
The EUROMET D800x3000 universal lathe is the largest conventional lathe in the D series. The machine is designed for continuous operation in serial production plants. Ideally suited for machining large details.
- removable bridge
- the bed base is made of cast iron - one element
- hardened bed guides
- heat-treated spindle nose
- hardened change gears in the spindle gear
- revolutions activated by an electromagnetic clutch
- the full range of threads can be machined
- feed selection lock: by a screw or a shaft
Standard equipment:
- 3-jaw lathe chuck
- driving disc
- steady rest
- follow rest
- thread indicator
- fixed tusk MT 5
- cooling system
- lighting
- user manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- quick-change holder
- ruler for cones
- digital readout for 2 axes
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 800 |
| Turning diameter over cross slide | [mm] | 570 |
| Turning diameter in the bridge | [mm] | 1050 |
| Turning length | [mm] | 3000 |
| Bed width | [mm] | 400 |
| Spindle flight | [mm] | 105 |
| Turning length in the bridge | [mm] | 250 |
| Spindle tip | [-] | D1-8 |
| Spindle seat | [-] | Morse 5 |
| Spindle speed range | [rpm/min] | 25 - 1600 |
| Maximum tool dimensions | [mm] | 25x25 |
| Longitudinal feed range | [mm/rpm] | 0,044 - 1,48 |
| Cross travel range | [mm/rpm] | 0,022 - 0,74 |
| Metric thread | [mm] | 0,45 - 120 |
| Inch thread | [-] | 7/16-80 T.P.I. |
| Modular thread | [-] | 0,25-60 M.P. |
| Thread D.P. | [-] | 7/8-160 D.P. |
| Tailstock sleeve diameter | [mm] | 90 |
| Extend the tailstock quill | [mm] | 235 |
| Tailstock sleeve tip | [-] | No.5 Morse |
| Engine power | [kW] | 7,5 |
| Coolant pump power | [kW] | 0,1 |
| Dimensions | [mm] | 4710x1230x1670 |
| Weight | [kg] | 4200 |
