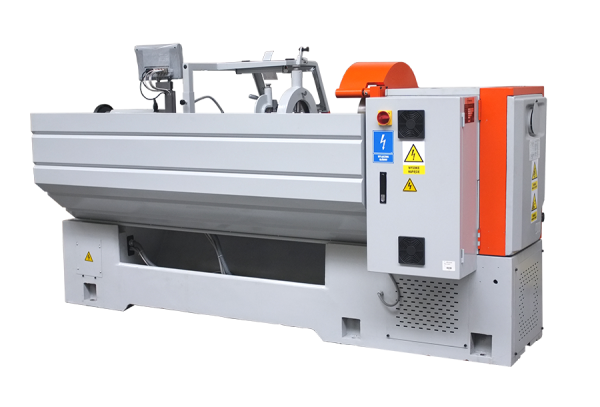

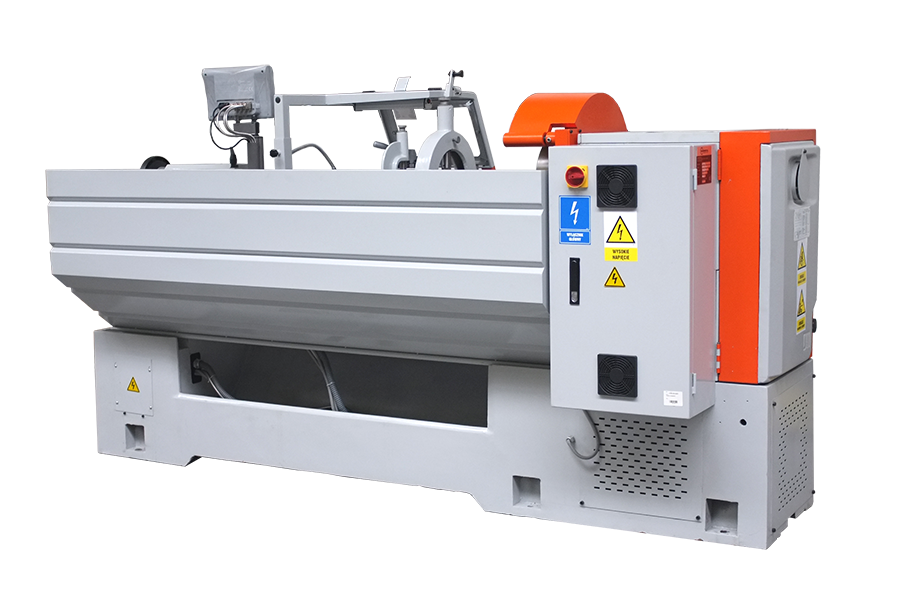

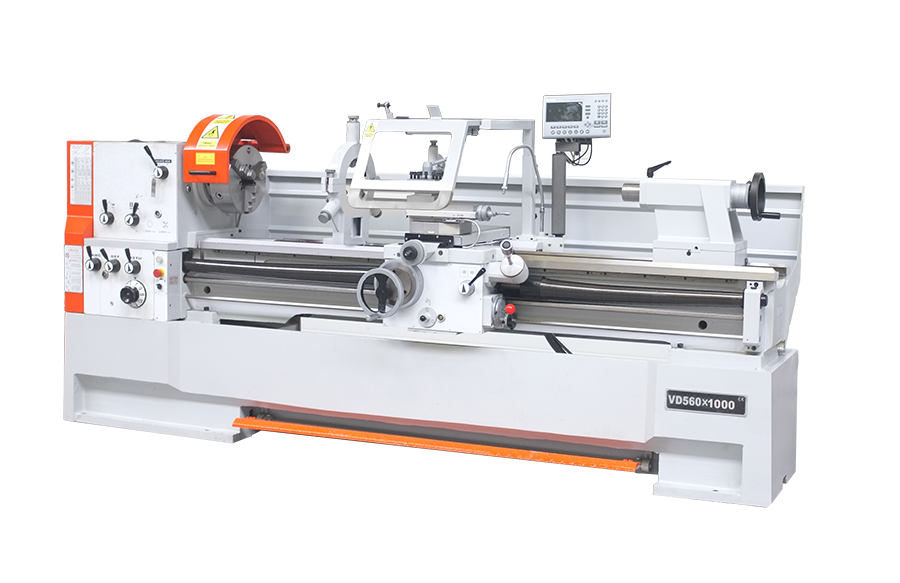

UNIVERSAL LATHE EUROMET VD560X1000
71 870,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The EUROMET VD560X1000 universal lathe is designed to work in production plants, tool shops and maintenance departments. The distinguishing features of the construction are: one-element base made of cast iron, hardened bed guides, heat-treated spindle tip.
The EUROMET VD560X1000 universal lathe is designed to work in production plants, tool shops and maintenance departments. The distinguishing features of the construction are: one-element base made of cast iron, hardened bed guides, heat-treated spindle tip.
The lathe enables the processing of a full range of threads, it also has a feed lock: by a screw or shaft, a removable bridge, infinitely adjustable spindle revolutions with the possibility of setting a constant cutting speed.
An innovative solution in the VD series lathes is the use of an inverter for smooth adjustment of the spindle speed (2 ranges; low and high revolutions) cooperating with a controller that allows you to program a constant cutting speed.
Standard equipment:
- 3-jaw 250mm lathe chuck
- 4-jaw 300mm lathe chuck
- driving disc
- steady rest
- follow rest
- thread indicator
- reduction sleeve MT 6/4
- fixed tusk MT 4
- digital readouts for 3 axes
- constant cutting speed controller
- stepless adjustment of the spindle speed
- cooling system
- ruler for cones
- lighting
- User manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- quick-change tool holder
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 560 |
| Turning diameter over cross slide | [mm] | 305 |
| Turning diameter in the bridge | [mm] | 75 |
| Turning length | [mm] | 1500 |
| Bed width | [mm] | 350 |
| Spindle flight | [mm] | 80 |
| Turning length in the bridge | [mm] | 170 |
| Upper sled travel | [mm] | 130 |
| Spindle tip | [-] | D1-8 |
| Spindle seat | [-] | Morse 7 |
| Spindle speed range | [rpm/min] | 25 - 1600 |
| Maximum tool dimensions | [mm] | 25x25 |
| Longitudinal feed range | [mm/rpm] | 0,059 - 1,646 |
| Przesuw poprzeczny | [mm] | 326 |
| Cross travel range | [mm/rpm] | 0,02 - 0,573 |
| Metric thread | [mm] | 0,2 - 14 |
| Inch thread | [-] | 2-112 T.P.I. |
| Modular thread | [-] | 0,1-7 M.P. |
| Thread D.P. | [-] | 4-112 D.P. |
| Tailstock sleeve diameter | [mm] | 75 |
| Extend the tailstock quill | [mm] | 180 |
| Tailstock sleeve tip | [-] | No.5 Morse |
| Engine power | [kW] | 7,5 |
| Coolant pump power | [kW] | 0,1 |
| Dimensions | [mm] | 2390x1150x1430 |
| Weight | [kg] | 2335 |
