Band saws
IMET BS 350 SHI semi-automatic bandsaw
47 500,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

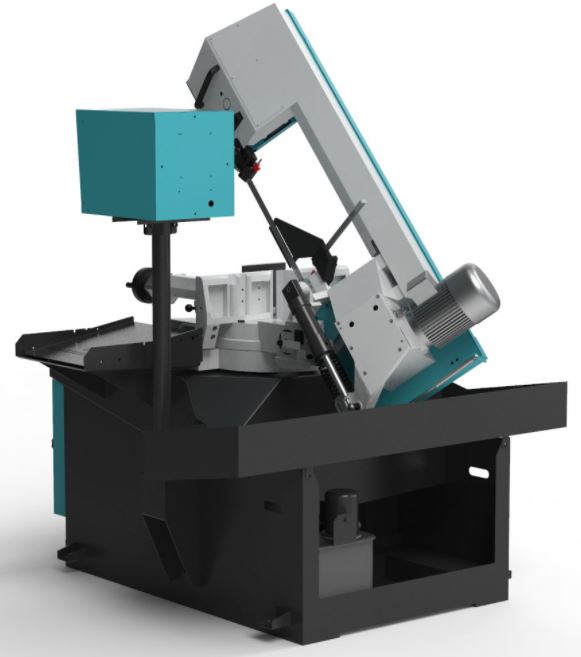

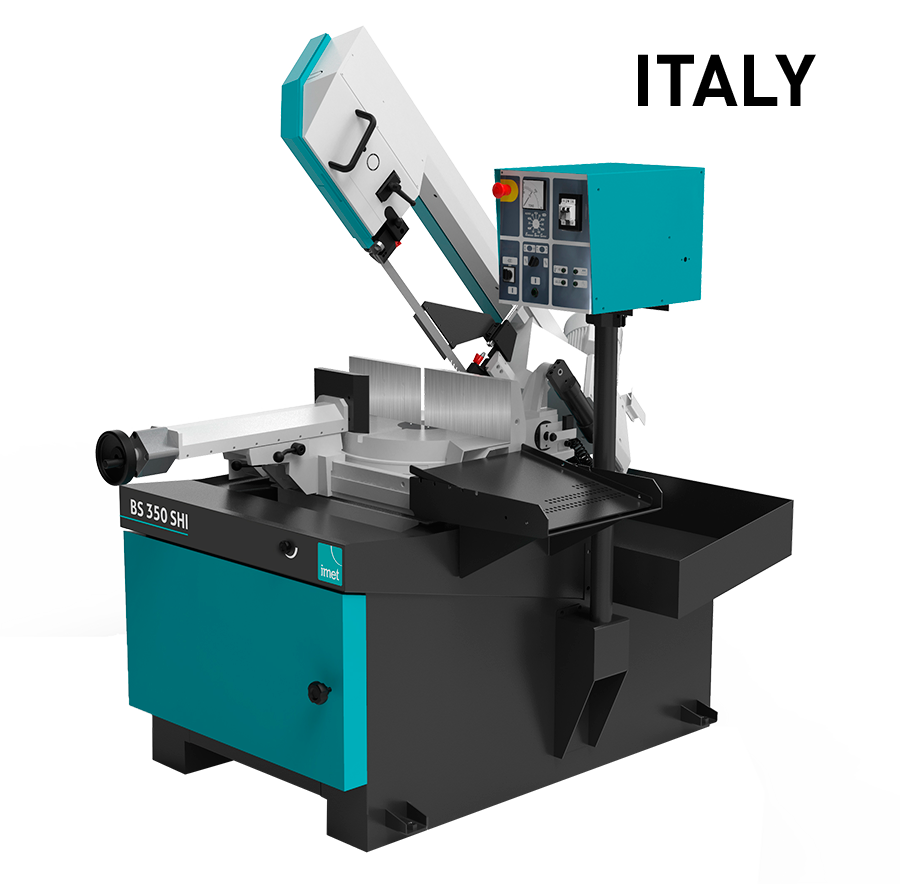

IMET BS 350 SHI semi-automatic band cutting machine with a built-in hydraulic unit responsible for lowering and raising the arm, vice operation, and with adjustable cutting speed (smooth regulation - inverter - optional for an additional fee).
Quantity
Add to cart
IMET BS 350 SHI semi-automatic band cutting machine with a built-in hydraulic unit responsible for lowering and raising the arm, vice operation, and with adjustable cutting speed (smooth regulation - inverter - optional for an additional fee). The machine allows cutting at an angle of up to 60° to the right and 45° to the left and adjustment of the arm feed speed. The cutting machine is the optimal solution for cutting both solid materials and sections, e.g. in the production of steel structures.
Basic data:
- Maximum cutting diameter: ø 305 mm
- Working feed: gravity arm drop; smooth regulation
- Arm lifting: hydraulic

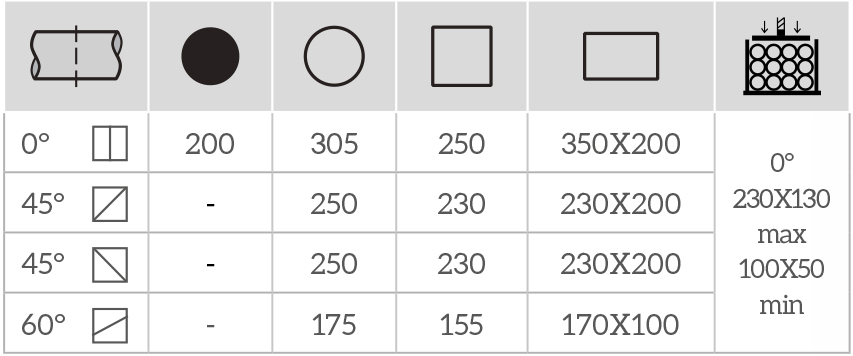

- Angle cutting: right 0° - 45° - 60°; left - 45°
- Cutting band dimensions: 3370 x 27 x 0.9mm
- Band speed: 2 cutting speeds 37/74 m/min
- Vice – hydraulic clamp
- Standard equipment
- Cooling system
- Tape cleaning brush
- Bimetallic tape – 1 piece in the machine
- CE certificate
Standard equipment:
- Cooling system
- Tape cleaning brush
- Bimetallic tape – 1 piece in the machine
- User manual in English
- CE certificate
Optional equipment (additionally paid):
- Roller feeders
- Measure with bumper
- Connector
- Smooth regulation of cutting speed (inverter)
- Oil mist lubrication system (micronizer)
- Laser cutting line indicator
| Technical data | Unit | Value |
|---|---|---|
| The width of the cutting band | [mm] | 34 |
| Vise opening width | [mm] | 350 |
| The dimensions of the cutting band | [mm] | 3370x27x0.9 |
| Cutting band speed | [m/min] | 37/74 |
| Cutting band motor power | [kW] | 1.5/2.2 |
| Working height | [mm] | 940 |
| Dimensions | [mm] | 1480x1750x1900 |
| Weight | [kg] | 649 |
