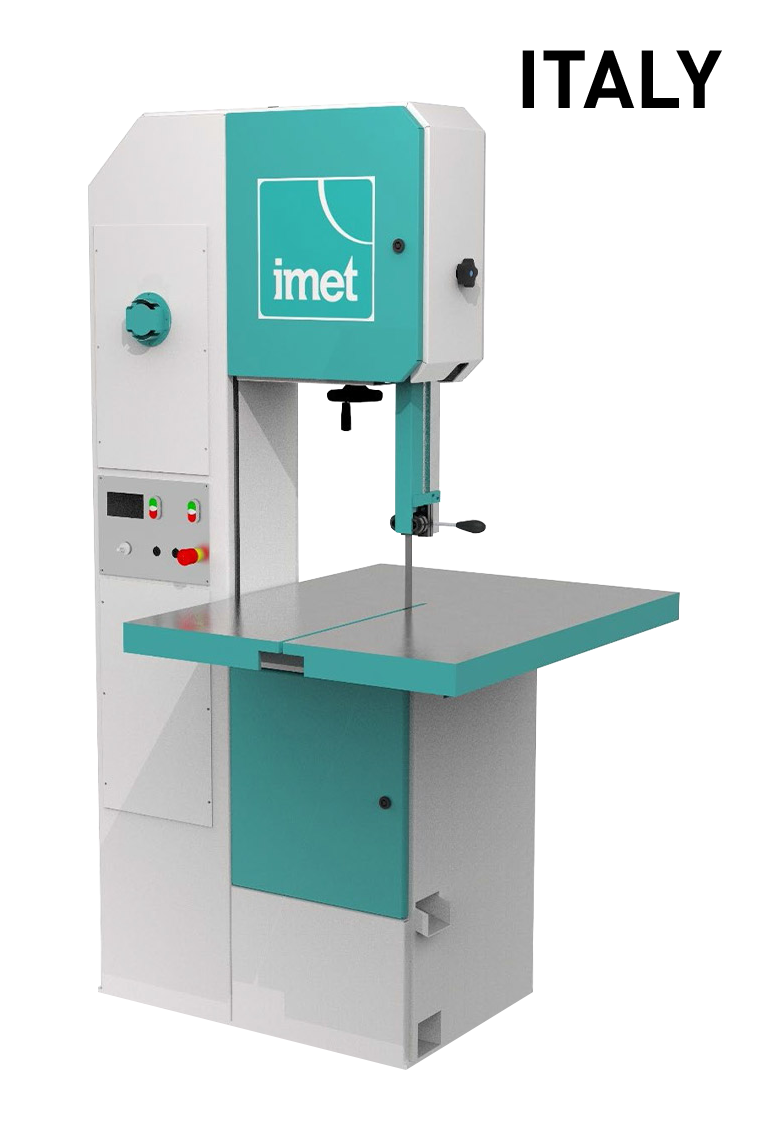

IMET VBS 400 S vertical band saw

Band saws

IMET VBS 400 S vertical band saw

59 336,55 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The VBS 400 S is a manual vertical band saw with a fixed table (made of cast iron) that can be tilted up to 15°. It facilitates material loading, support and user efficiency while cutting. It is a solid, durable, easy-to-use professional work tool, suitable for use in any production plant.

Quantity

VBS 400 S is the manual vertical bandsaw with fixed table (made in cast-iron) that can be inclinated up to 15° to ease material loading, support and user's workflow while cutting. It's a solid, resistant, easy to use professional working tool, suitable fo be used in every production plant and steel works factory to efficiently cut tubes and profile.

The base and head are made of electro-welded steel.
Manual control panel located at the working height of the table. Thanks to the easy-to-use digital LCD display, the operator can set and adjust the belt speed depending on the material being cut.
Table made of cast iron. The total table surface is 600x600mm with a load capacity of 200kg.
The machine is equipped with two tape guides. The first one is placed under the table and the second one is mounted in the head and is adjustable depending on the thickness of the material.

Machine structure

VBS 400 S base is made in ectrowelded steel with rigid structure for the best stability (and reduce bindings a and vibrations) while cutting; it's equipped with two screws to lock it to the production floor. Fixed table is mounted on the upper side of the base.

Sawframe

The machine sawframe is made also in electrowelded steel and it supports two hand-wheels: the first positioned on the mobile tube with manual blade tensioning system (by an hand-wheel), the other is motorized with motoreducer managed by vectorial inverter.

Panel control

The machine is manual with a panel control placed at the same height of the table. Thanks to the easy-to-use digital LCD display, the operator can set and regulate the blade rotation speed according to the material.

Fixed table

The supporting plate (or table) of VBS 400 S is made in cast-iron and positioned on the upper side of the machine base. Total area of standard table: 600x600mm with 200kg loading capacity.

Blade guides and alignment

The machine is equipped with two blade guides for blade alignment: the first positioned under the plate and the second mounted on the blade guide rod, adjustable on the base of the material thickness. The rod is put in action by a dedcated hand-wheel with mechanical brake to mantain the STOP in position.

Optional equipment (additionally paid):

Fixed table with an inclination of 15° to ease the management and loading of materials
A special mobile table made in cast-iron with a loading area of 600x760mm and a repeatable stroke of 260mm
The minimal lubrication system with water and oil

Technical data	Unit	Value
The width of the cutting band	[mm]	20
The dimensions of the cutting band	[mm]	3600 x 6:20 x 0,9
Cutting band speed	[m/min]	50/1000
Cutting band motor power	[kW]	4
Working height	[mm]	1080
Dimensions	[mm]	2225 x 1120 x 770
Weight	[kg]	495
