Band saws
IMET GBS 130 manual badsaw
3 650,00 zł net
No rating
12 months of warranty
Przecinarka manualna IMET GBS 130 - maks. Ø cięcia 130 mm. Obsługa ręczna, posuw realizowany ręcznie, imadło ręczne. Możliwość cięcia pod kątem do 60° w prawo. Napęd taśmy: silnik elektryczny jednofazowy, prędkość taśmy regulowana bezstopniowo.
Quantity
Add to cart

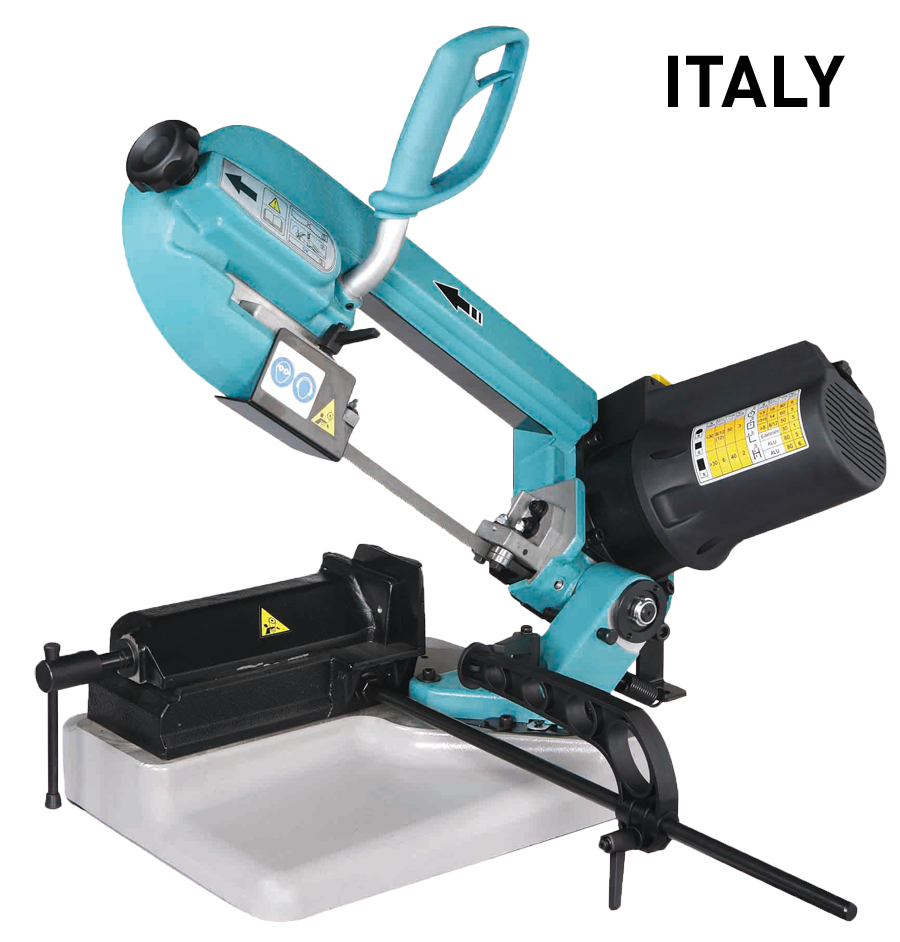

GBS 130 is the IMET manual sawing machine: versatile and easy to use, ideal for small series mechanical productions. The small size and ease of transport make it the ideal tool for use on construction sites. The machine cuts from 0 ° to 60 ° to the left.

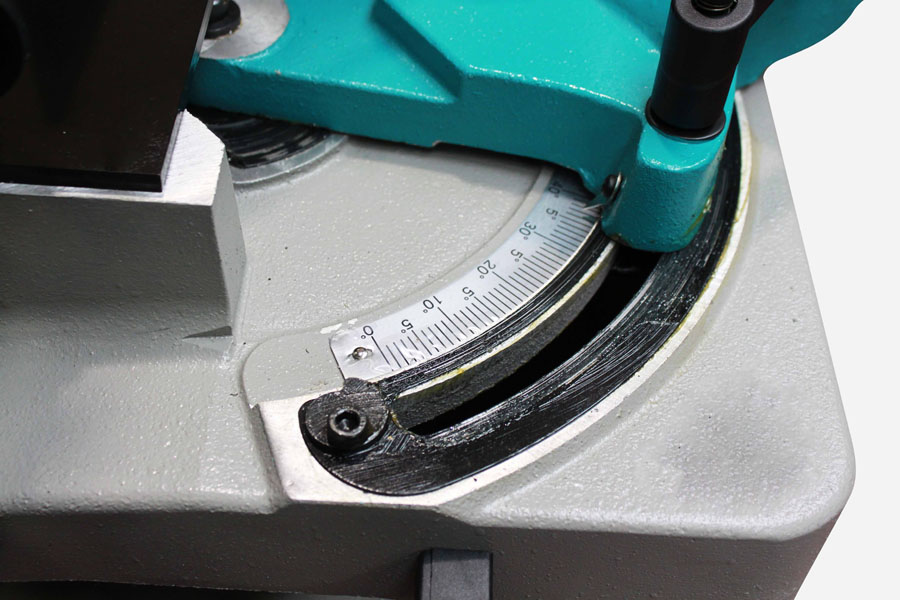

GBS 130 has a large work surface with rotation integral with the bow designed to avoid incisions on the fifth wheel for easy rotation.

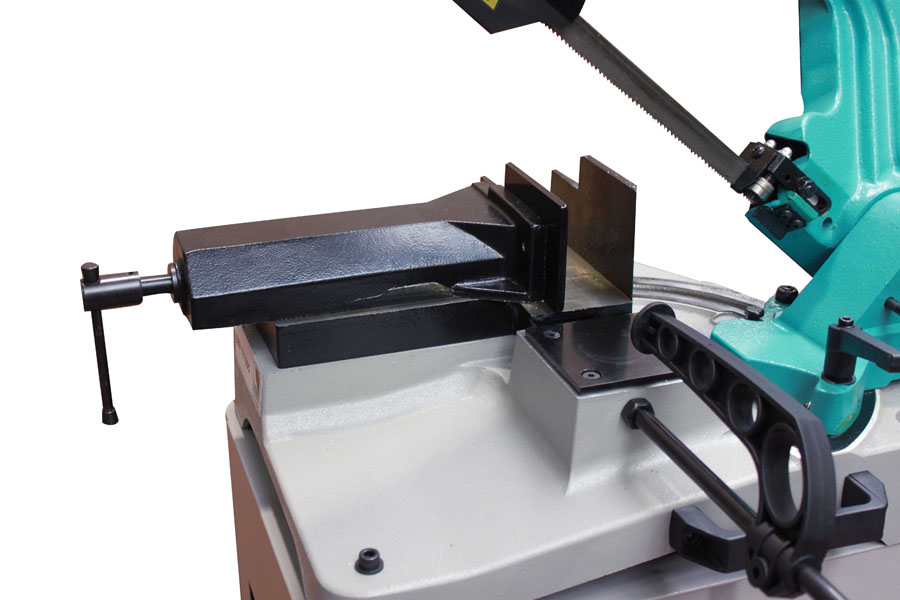

The vice with adjustable guides, sliding transversely on the work surface and quick approach to the cutting material.
The bimetal bandsaw blade has a size of 1440x13x0.6mm with a speed of use of between 30 and 80 meters per minute making it the ideal tool for processing steel and cast iron.
Equipment:
- bimetallic tape 1 pc. - in the machine
- bumper
- base (option at extra charge)
- user manual in English
- CE Certificate
| Technical data | Unit | Value |
|---|---|---|
| The width of the cutting band | [mm] | 13 |
| Vise opening width | [mm] | 130 |
| The dimensions of the cutting band | [mm] | 1440x13x0,65 |
| Cutting band speed | [m/min] | 30 - 80 |
| Cutting band motor power | [kW] | 1,2 / 220V |
| Dimensions | [mm] | 700x350x450 |
| Weight | [kg] | 19 |
