Band saws

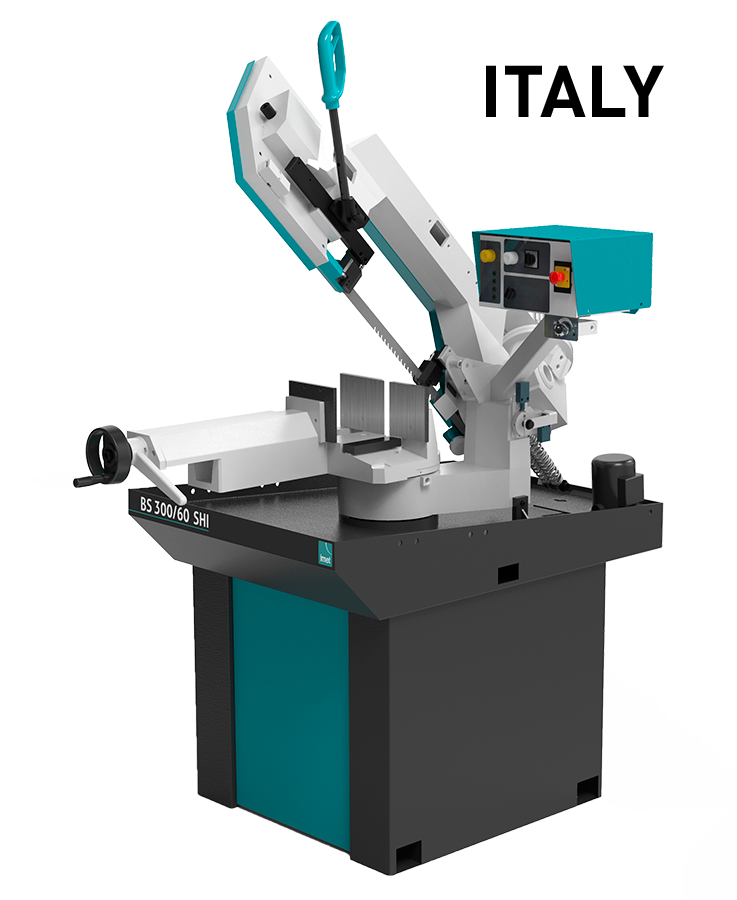

IMET BS 300/60 SHI semi-automatic bandsaw
32 500,00 zł net
No rating
12 months of warranty
Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
IMET BS 300/60 SHI is a semi-automatic saw for cutting pipes, profiles and medium-sized bars. Thanks to its small size and ease of use, it can be used in any mechanical workshop and work environment. Suitable for cutting high-strength materials.
Quantity
Add to cart
IMET BS 300/60 SHI is a semi-automatic saw for cutting pipes, profiles and medium-sized bars. Thanks to its small size and ease of use, it can be used in any mechanical workshop and work environment. Suitable for cutting high-strength materials.
Device features:
- Maximum cutting diameter: ø 255 mm
- Smooth adjustment of the arm drop
- Arm lifting: hydraulic after finishing cutting
- Angle cutting: right 0° - 45° - 60°
- Cutting band dimensions: 2765 x 27 x 0.9mm
- Band speed: 2 cutting speeds 35/70 m/min
- Hydraulic vice
|

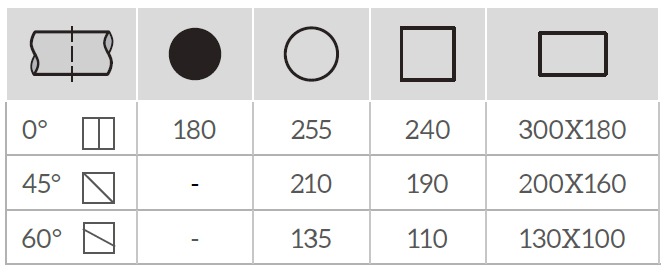

CUTTER CUTTING ANGLE |
|
|
|
|
0° |
255 |
300x180 |
240 |
|
45° |
210 |
200x160 |
190 |
|
60° |
135 |
130x100 |
110 |
|
0° for solid material (C45) |
200 |
- |
- |
Standard equipment:
- Cooling system
- Bimetallic tape – 1 piece in the machine
- User manual in English
- CE certificate
Optional equipment (additionally paid):
- Roller feeders
- Oil mist lubrication system (micronizer)
- Laser cutting line
| Technical data | Unit | Value |
|---|---|---|
| The width of the cutting band | [mm] | 27 |
| Vise opening width | [mm] | 300 |
| The dimensions of the cutting band | [mm] | 2765x27x0.9 |
| Cutting band speed | [m/min] | 35/70 |
| Cutting band motor power | [kW] | 1.5 |
| Working height | [mm] | 940 |
| Coolant tank capacity | [l] | 20 |
| Hydraulic reservoir capacity | [l] | 12 |
| Dimensions | [mm] | 1050x1700x1860 |
| Weight | [kg] | 412 |
