5-axis CNC milling machine EUROMET SKOLAR X5 (with Sinumerik 840 control)

Didactic milling machines

5-axis CNC milling machine EUROMET SKOLAR X5 (with Sinumerik 840 control)

455 400,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Michał Bartoszuk
E-mail: michal.bartoszuk@eurometal.com.pl
Telefon: 603505252

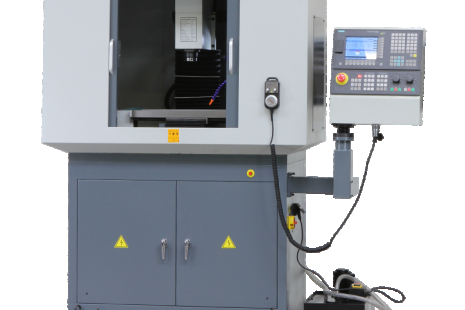

The SKOLAR X5 machine is a small, economical 5-axis CNC milling machine, it provides high educational values with low financial outlays. The machine is ideally suited both as a tool for learning the profession of a CNC operator or in industrial plants in discontinuous machining.

Product description
Product parameters (See more)

Standard equipment:

Spindle 24,000 rpm
Completely enclosed workspace
Linear guides in three axes, ball screws
LED warning lights
LED workspace lighting
Manual fastening
MPG knob

Optional equipment (payable additionally):

Tool measuring device
Machine network kit
Visualization software package
An intelligent platform for monitoring and collecting big data
Ability to display instant notifications
SmartCAD/CAM

Technical data	Unit	Value
Table dimensions (length)	[mm]	130
Table dimensions (width)	[mm]	130
X axis feed range	[mm]	200
Y axis feed range	[mm]	150
Z axis feed range	[mm]	200
Spindle speed range	[rpm/min]	0 - 24000
Table load capacity	[kg]	6
Spindle taper	[-]	NR6
Accelerated feed X	[mm/min]	2000
Accelerated feed Y	[mm/min]	2000
Accelerated feed Z	[mm/min]	2000
Table rotation	[°]	360
Headstock motor power	[kW]	0,5
Supply voltage	[V]	220 [15A (kva)]
Feed drive motor	[kW]	0,4
Rotate the head left and right	[°]	-110 do ~ +30
Device dimensions	[mm]	900 x 700 x 1750
Machine weight	[kg]	302
