CNC machining center

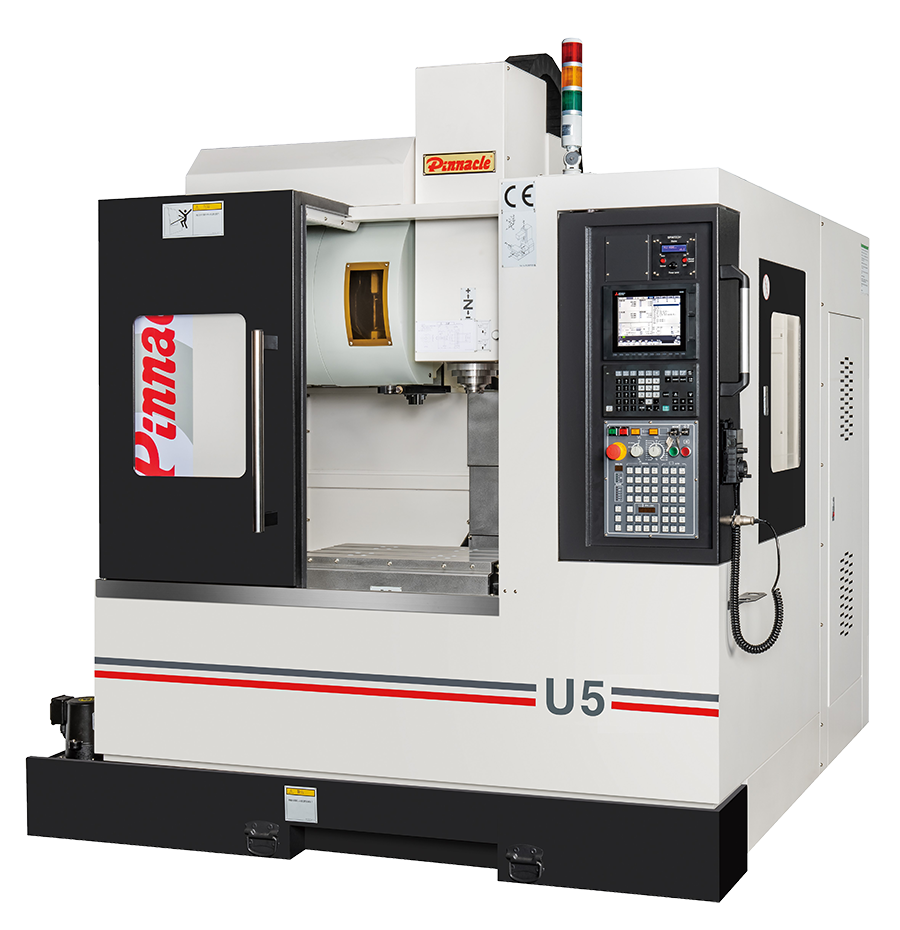

PINNACLE U5 Ultrasonic machining center
540 800,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

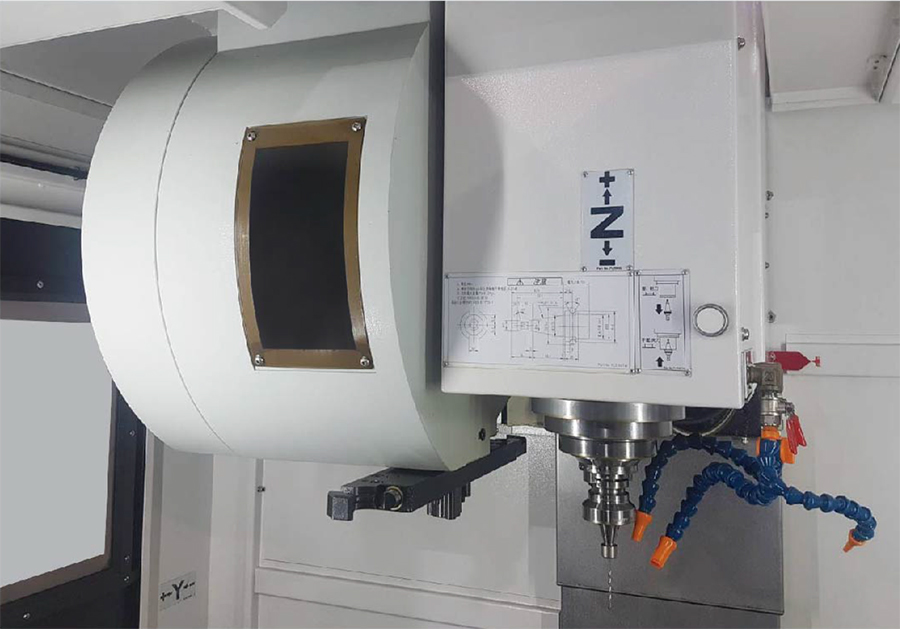

PINNACLE U5 Ultrasonic machining center equipped with an ultrasonic spindle to ensure excellent quality during high-speed machining.
Highly rigid construction.
PINNACLE U5 Ultrasonic machining center equipped with an ultrasonic spindle to ensure excellent quality during high-speed machining.
- All structural members are manufactured from high quality cast iron (FC30) and hardened to a hardness of over HB190, then tempered to reduce internal stresses.
- The three axes are equipped with high-precision class P linear paths with large blocks.
- Sleeve width: 30 mm.
- Rear-mounted exhaust system to save space.
- Precision C3 class ball screws on three axes.
- Ball screw diameter: 32 mm.
- Efficient high performance AC servo motor drive enables 48 m/min rapid traverse speeds. Smooth movement combined with a powerful drive ensuring accurate finishing of the processed surface.
Machine Features:
- Milling
- Drilling
- Reaming
- Threading

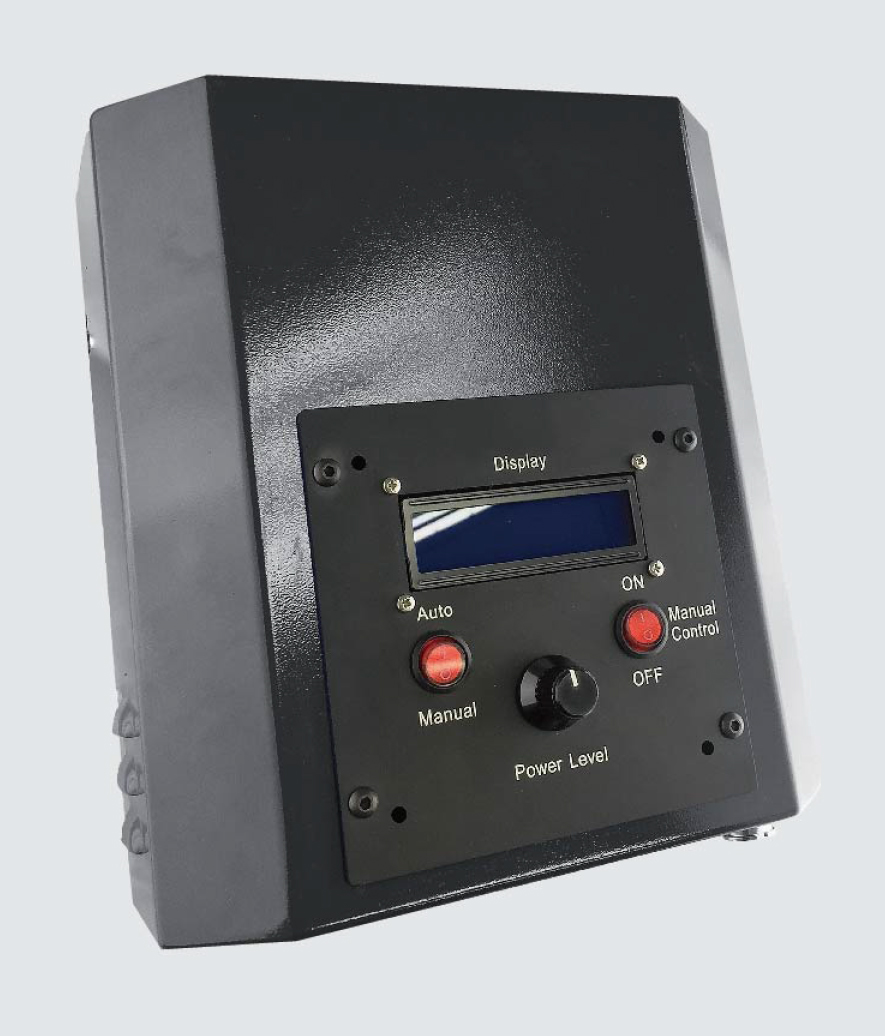

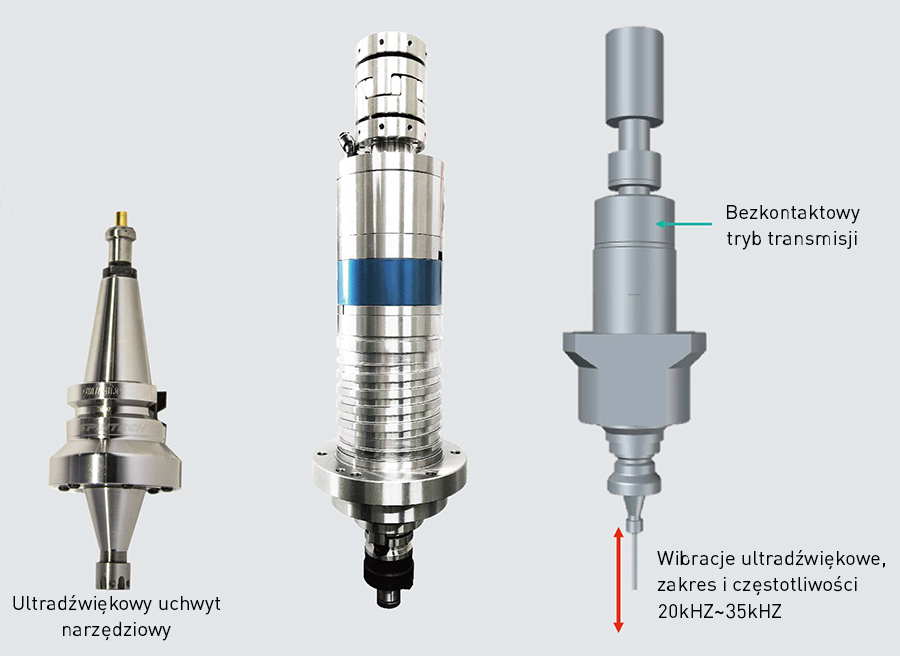

- ULTRASONIC SPINDLE MODULE
- High frequency vibration, high precision
- Contactless (wireless) transfer of electricity. Highly efficient electricity transfer
- Axial tool vibration frequency range: 20-35 KHz
- Amplitude range 1-14 µm
- The accuracy of the tool can reach up to 5 µm
Standard equipment:

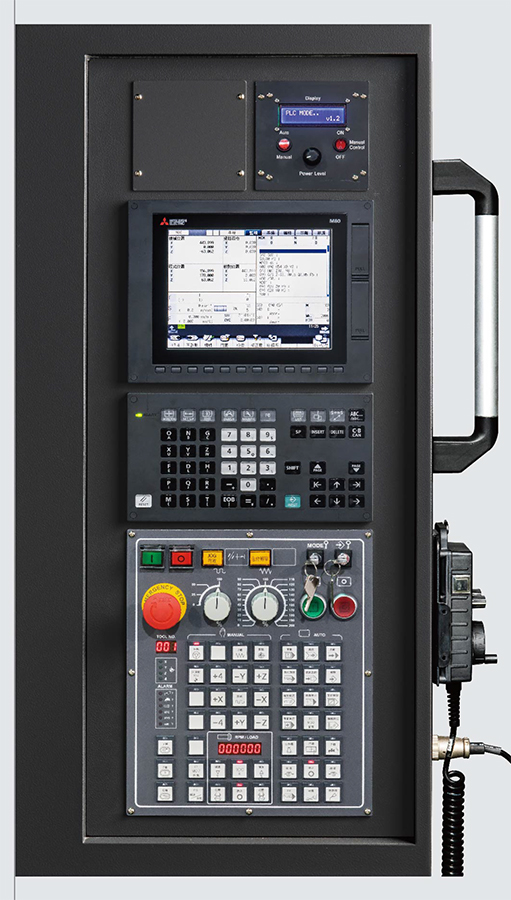

- Mitsubishi M80 control
- BT spindle, 24000 rpm
- Blow out the spindle with air
- Chip flushing system
- 20-position carousel magazine

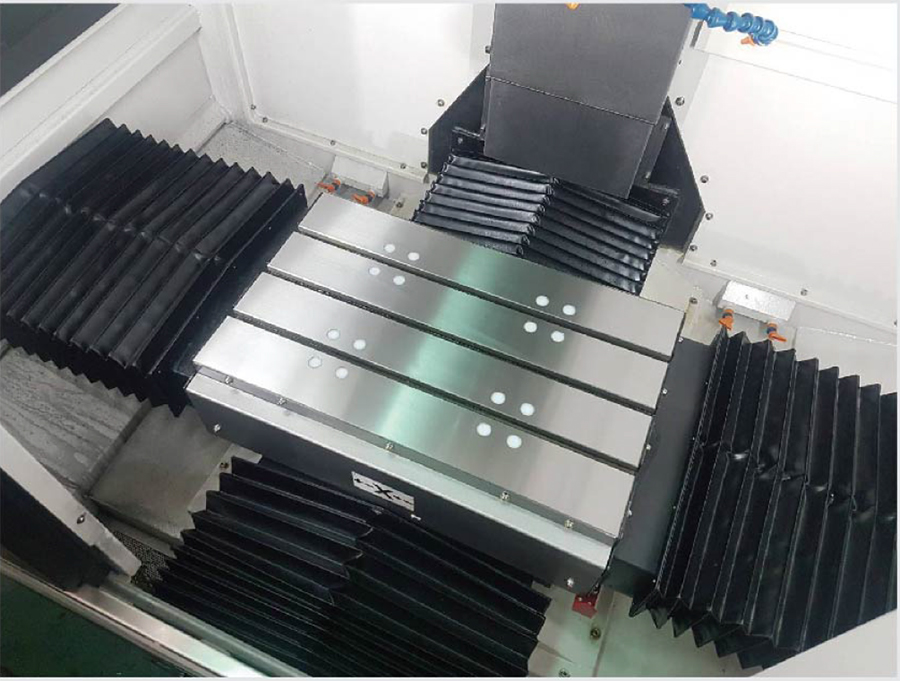

- Telescopic guide covers
- Full coverage of the workspace
- Central lubrication system
- Blow the detail with air
- MPG knob
- Cooling of the electrical cabinet
- Signal mast
- Coolant and compressed air gun
- RS232 port
- Cooling system
- USB port
- Set of maintenance tools
- CE declaration
- User manual in English
| Technical data | Unit | Value |
|---|---|---|
| Table surface (length) | [mm] | 660 |
| Table surface (width) | [mm] | 110 |
| X axis travel | [mm] | 510 |
| Y axis travel | [mm] | 410 |
| Z axis travel | [mm] | 510 |
| Table load | [kg] | 200 |
| T-slots (W x Pitch mm x °) | [-] | 14x125x3 |
| Distance between the spindle and the table | [mm] | 100-610 |
| Spindle taper | [-] | BT30 |
| Spindle speed | [rpm/min] | 0 - 24000 |
| Distance from the spindle axis to the column surface | [mm] | 462 |
| Spindle motor power | [kW] | 3,7/5,5 |
| Rapid feed (X / Y / Z) | [m/min] | 48/48/48 |
| The power of FANUC feed servo motors | [kW] | 1,5/1,5/2,0 |
| Tool magazine type | [-] | karuzelowy |
| Tool magazine capacity | [pcs] | 20 |
| Tool diameter | [mm] | 75 |
| Tool length | [mm] | 150 |
| Tool weight | [kg] | 4 |
| Electrical connection | [kVA] | 15 |
| Coolant tank capacity | [l] | 150 |
| Dimensions (LxWxH) | [mm] | 1900x2200x2400 |
| Weight | [kg] | 3600 |
