CNC machining center

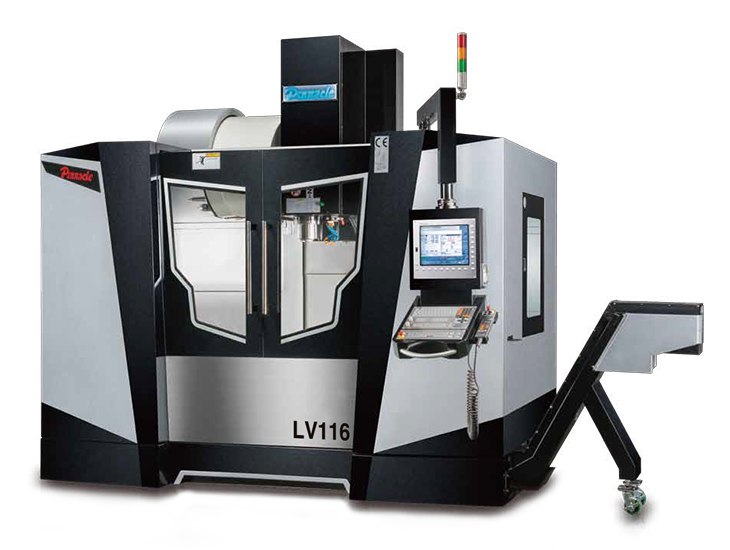

PINNACLE LV126 CNC machining center (linear guides)
381 600,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The machines (PINNACLE LV126 CNC machining center) of the LV series are 3-axis vertical machining centers with a cross table that performs movements in the X/Y axis and a headstock that performs vertical movement in the Z axis. Linear roller guides in all axes ensure high movement dynamics and high accuracy. positioning. LV series vertical machining centers can be equipped with a CNC rotary table, becoming 4- or even 5-axis machines.
Quantity
Add to cart
The machines (PINNACLE LV126 CNC machining center) of the LV series are 3-axis vertical machining centers with a cross table that performs movements in the X/Y axis and a headstock that performs vertical movement in the Z axis. Linear roller guides in all axes ensure high movement dynamics and high accuracy. positioning. LV series vertical machining centers can be equipped with a CNC rotary table, becoming 4- or even 5-axis machines.
High feed rates up to 36 m/min and high rotational speeds up to 15,000 rpm enable high-performance machining. Thanks to a wide range of additional equipment, the machines are used in both mold production and mass production. The X-axis travel of the LV series ranges from 850mm to as much as 1400mm. The machines are available with all the most popular controls available on the market, including: Fanuc, Sinumerik or Heidenhain.
The LV series is similar to the SV series, except that LV machines are equipped with linear guides.
Standard equipment:
- Blow out the spindle with air
- Blow air through the object
- Chip rinsing
- Telescopic guide covers
- Automatic lubrication system
- Work lamp
- Machine status signaling
- Cooling system
- Compressed air and coolant gun
- MPG knob
- Cooling of the electrical cabinet
- Rigid threading
- Chip conveyor
- User manual in English
- CE Declaration of Conformity
Optional equipment (additionally paid):
- Control system: FANUC 0i-MD/ 31i-MB, SIEMENS 828D/ 840D, FAGOR 8055i Plus, -MITSUBISHI M70/ M720/ M730 -HEIDENHAIN iTNC530/ TNC620
- Types of tool magazines: Carousel, Drum, Chain
- Cooling through the spindle
- Coolant tank with paper filter
- Tilt-rotary table (4/5 axis controlled)
- Rotary table (4 axis controlled)
| Technical data | Unit | Value |
|---|---|---|
| Table surface (length) | [mm] | 1440 |
| Table surface (width) | [mm] | 610 |
| X axis travel | [mm] | 1270 |
| Y axis travel | [mm] | 610 |
| Z axis travel | [mm] | 610 |
| Table load | [kg] | 850 |
| T-slots (W x Pitch mm x °) | [-] | 18 x 125 x 5 |
| Distance between the spindle and the table | [mm] | 120-730 |
| Spindle taper | [-] | ISO50 |
| Spindle speed (direct drive) | [rpm/min] | 0 - 15000 |
| Spindle speed (toothed belt drive) | [rpm/min] | 60 - 8000 |
| Spindle speed (gear drive) | [rpm/min] | bieg niski: 40-1500, bieg wysoki: 1501-6000 |
| FANUC servo motor (continuous / 30min KW) | [-] | 11/15 (β12/7000i) |
| Distance from the spindle axis to the column surface | [mm] | 675 |
| Spindle motor power | [kW] | 11 / 15 |
| Rapid feed (X / Y / Z) | [m/min] | 30 / 30 / 24 |
| Working feed (X / Y / Z) | [m/min] | 10000 |
| The power of FANUC feed servo motors | [kW] | β22/3000is 3.0 (α12i/3000i 3.0) |
| Tool magazine type | [-] | karuzelowy/bębnowy/łańcuchowy |
| Tool magazine capacity | [pcs] | 24 |
| Tool diameter | [mm] | 105 |
| Tool length | [mm] | 300 |
| Tool weight | [kg] | 15 |
| Electrical connection | [kVA] | 20 |
| Coolant tank capacity | [l] | 200 |
| Dimensions (LxWxH) | [mm] | 2950 x 3400 x 2230 |
| Weight | [kg] | 6800 |
