PINNACLE DV1417 double-column machining center
782 250,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

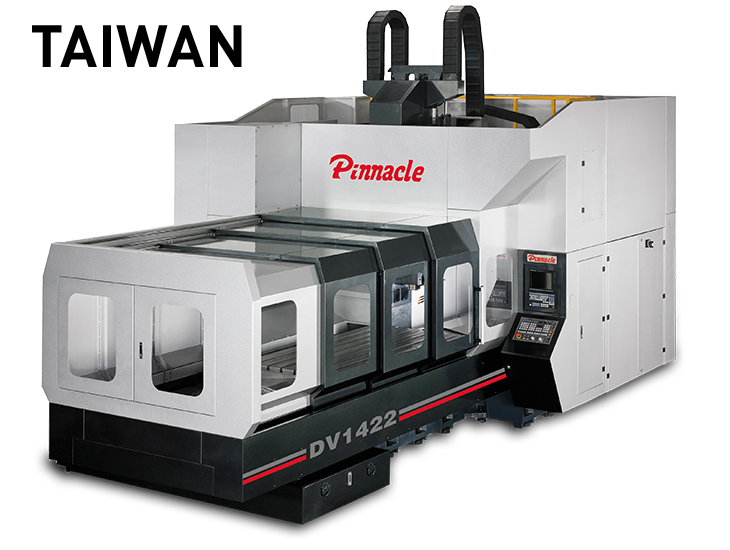

The PINNACLE DV1417 double-column machining center enables heavy machining with high cutting speed. DV machines are designed for precise machining of heavy and large-size details. In order to maintain maximum stability during heavy machining, the five main parts of the machine body are made of Meehanite cast iron.
Quantity
Add to cart
The PINNACLE DV1417 double-column machining center enables heavy machining with high cutting speed. DV machines are designed for precise machining of heavy and large-size details. In order to maintain maximum stability during heavy machining, the five main parts of the machine body are made of Meehanite cast iron. Linear roller guides in the X / Y / Z axes provide high dynamics of movement with high load at the same time. In order to be able to machine at high spindle speeds, the machines are equipped with a direct spindle drive in combination with a gear drive. This solution allows to obtain a high torque of the spindle.
The machines of the DV series, thanks to a wide range of equipment, can be adapted to individual customer requirements. The range of X axis travel from 1700mm to 4200mm and the Z axis up to 1100mm enable the processing of large-size details. The possibility of retrofitting the machine with various angle heads additionally increases its functionality.
Standard equipment:
- Spindle air blow
- Blowing air through the object
- Flushing the shavings
- Telescopic guiding covers
- Automatic lubrication system
- Work lamp
- Machine status signaling
- Cooling system
- Compressed air and coolant gun
- MPG handwheel
- Electrical cabinet cooling
- Rigid tapping
- Chip conveyor
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Control system: FANUC 0i-MC / 18i-MB, SIEMENS 802D SL / 810D / 840D, FAGOR 8055i Plus, MITSUBISHI M70 / M720 / M730, HEIDENHAIN
- Types of tool magazines: drum, chain
- Cooling through the spindle
- Coolant tank with paper filter
- Rotary table (4th steering axis)
- Swivel-tilting table (fourth and fifth steered axis)
- Automatic head magazine
- Manual 90 ° swivel angle head
- Automatic rotating head 90 ° head
- Horizontal semi-automatic 90 ° head, rotatable (indexed every 5 °), manually replaceable
- Automatic 5-axis head
| Technical data | Unit | Value |
|---|---|---|
| Table surface (length) | [mm] | 1700 |
| Table surface (width) | [mm] | 1200 |
| X axis travel | [mm] | 1700 |
| Y axis travel | [mm] | 1400 |
| Z axis travel | [mm] | 900 |
| Table load | [kg] | 5000 |
| T-slots (W x Pitch mm x °) | [-] | 22 x 150 x7 |
| Distance between the spindle and the table | [mm] | 160~1060 |
| Spindle taper | [-] | ISO50 |
| Spindle speed | [rpm/min] | 0 - 8000 |
| FANUC servo motor (continuous / 30min KW) | [-] | 15/18.5 |
| Distance from the spindle axis to the column surface | [mm] | 404 |
| Rapid feed (X / Y / Z) | [m/min] | 20/20/20 |
| Working feed (X / Y / Z) | [mm/min] | 10000 |
| The power of FANUC feed servo motors | [kW] | α 30/3000i 7.0 |
| Tool magazine type | [-] | bębnowy/łańcuchowy |
| Tool magazine capacity | [pcs] | 24/32 |
| Tool diameter | [mm] | 110/ 125(160/ 250) |
| Tool length | [mm] | 350 |
| Tool weight | [kg] | 20 |
| Electrical connection | [kVA] | 50 |
| Coolant tank capacity | [l] | 900 |
| Column spacing | [mm] | 1400 |
| Compressed air pressure | [MPa] | 6 |
| Dimensions (LxWxH) | [mm] | 4500 x 5800 x 4150 |
| Weight | [kg] | 15500 |
