Machines (PINNACLE LV105 cnc machining center) of the LV series are 3-axis vertical machining centers with a cross table, carrying out movements in the X / Y axis and a headstock performing vertical movement in the Z axis. Linear roller guides in all axes ensure high dynamics of movement and high accuracy positioning. LV series vertical machining centers can be equipped with a CNC rotary table, becoming 4 or even 5-axis machines.
Quantity
Add to cart
Machines (PINNACLE LV105 cnc machining center) of the LV series are 3-axis vertical machining centers with a cross table, carrying out movements in the X / Y axis and a headstock performing vertical movement in the Z axis. Linear roller guides in all axes ensure high dynamics of movement and high accuracy positioning. LV series vertical machining centers can be equipped with a CNC rotary table, becoming 4 or even 5-axis machines.
High feed rates of up to 36 m / min and high rotational speeds of up to 15,000 rpm enable high-performance machining. Thanks to the wide range of additional equipment, the machines have been used both in the production of molds and mass production. The X axis travel of the LV series ranges from 850mm to 1400mm. The machines are available with all the most popular controls available on the market, including Fanuc, Sinumerik or Heidenhain.

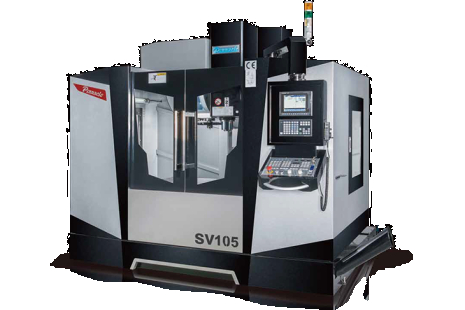

The LV series is identical to the SV series, except that the LV machines are equipped with linear guides.
Standard equipment:
- Spindle air blow
- Blowing air through the object
- Flushing the shavings
- Telescopic guiding covers
- Automatic lubrication system
- Work lamp
- Machine status signaling
- Cooling system
- Compressed air and coolant gun
- MPG handwheel
- Electrical cabinet cooling
- Rigid tapping
- Chip conveyor
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Control system: FANUC 0i-MD / 31i-MB, SIEMENS 828D / 840D, FAGOR 8055i Plus, MITSUBISHI M70 / M720 / M730, HEIDENHAIN iTNC530 / TNC620
- Types of tool magazines: carousel, drum, chain
- Cooling through the spindle
- Coolant tank with paper filter
- Swivel rotary table (4/5 steering axis)
- Rotary table (4th axis steered)
| Technical data | Unit | Value |
|---|---|---|
| Table surface (length) | [mm] | 1200 |
| Table surface (width) | [mm] | 510 |
| X axis travel | [mm] | 1020 |
| Y axis travel | [mm] | 560 |
| Z axis travel | [mm] | 560 |
| Table load | [kg] | 600 |
| T-slots (W x Pitch mm x °) | [-] | 18 x 100 x 5 |
| Distance between the spindle and the table | [mm] | 100-660 |
| Spindle taper | [-] | ISO40 |
| Spindle speed (direct drive) | [rpm/min] | 0 - 12000 |
| Spindle speed (toothed belt drive) | [rpm/min] | 60 - 8000 |
| Spindle speed (gear drive) | [rpm/min] | 40-2000, bieg wysoki: 2001-8000 |
| FANUC servo motor (continuous / 30min KW) | [-] | 11/15 (β12/7000i) |
| Distance from the spindle axis to the column surface | [mm] | 600 |
| Spindle motor power | [kW] | 7,5 / 11 |
| Rapid feed (X / Y / Z) | [m/min] | 36 / 36 / 24 |
| Working feed (X / Y / Z) | [m/min] | 10000 |
| The power of FANUC feed servo motors | [kW] | β22/3000is 3.0 (α12i/3000i 3.0) |
| Tool magazine type | [-] | karuzelowy/bębnowy/łańcuchowy |
| Tool magazine capacity | [pcs] | 24 |
| Tool diameter | [mm] | 90 |
| Tool length | [mm] | 250 |
| Tool weight | [kg] | 8 |
| Electrical connection | [kVA] | 20 |
| Coolant tank capacity | [l] | 200 |
| Dimensions (LxWxH) | [mm] | 2820x2230x2750 |
| Weight | [kg] | 5700 |
