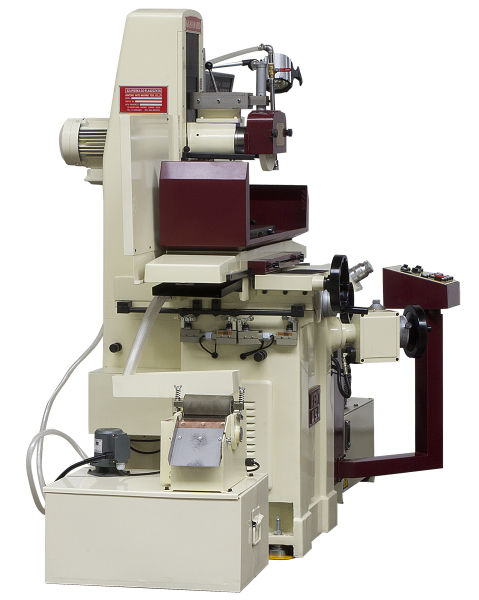

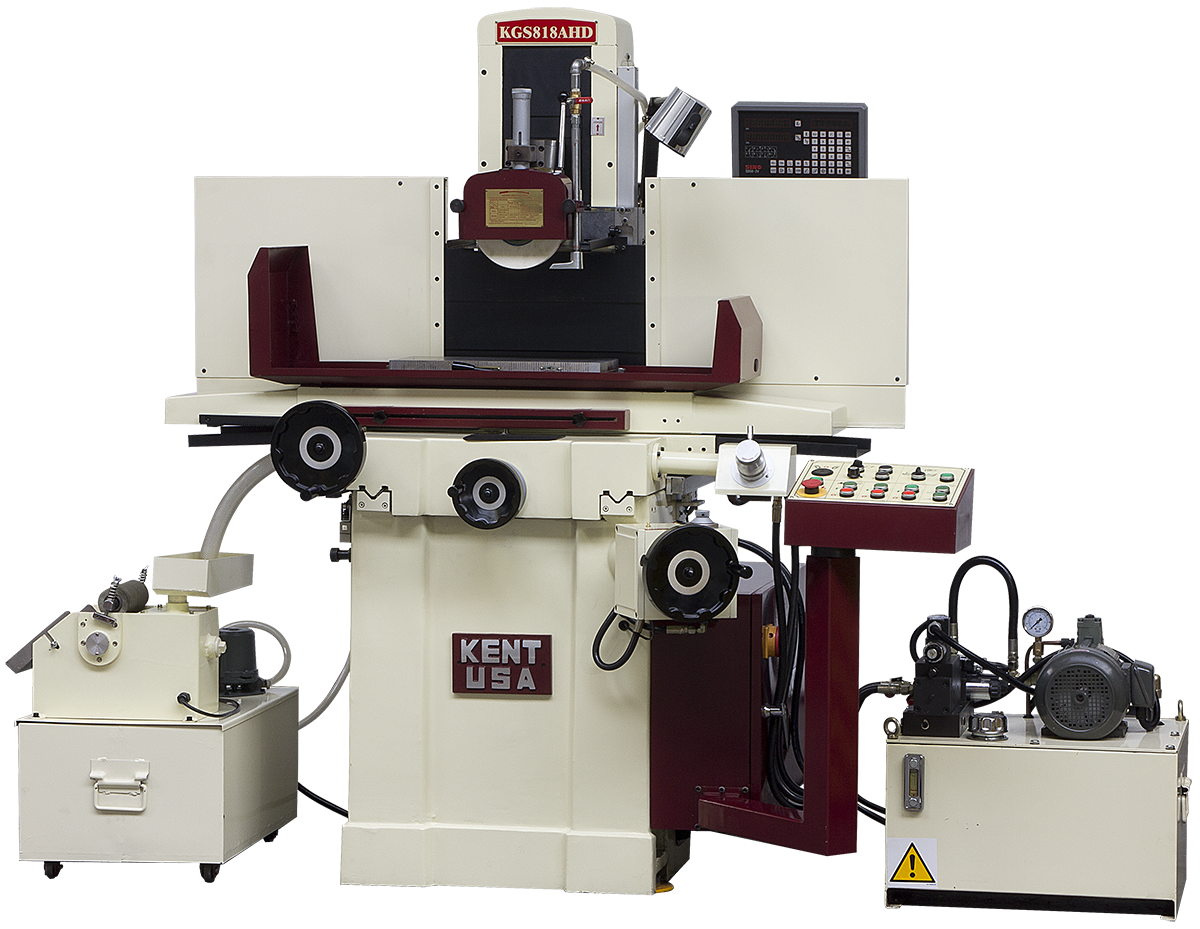

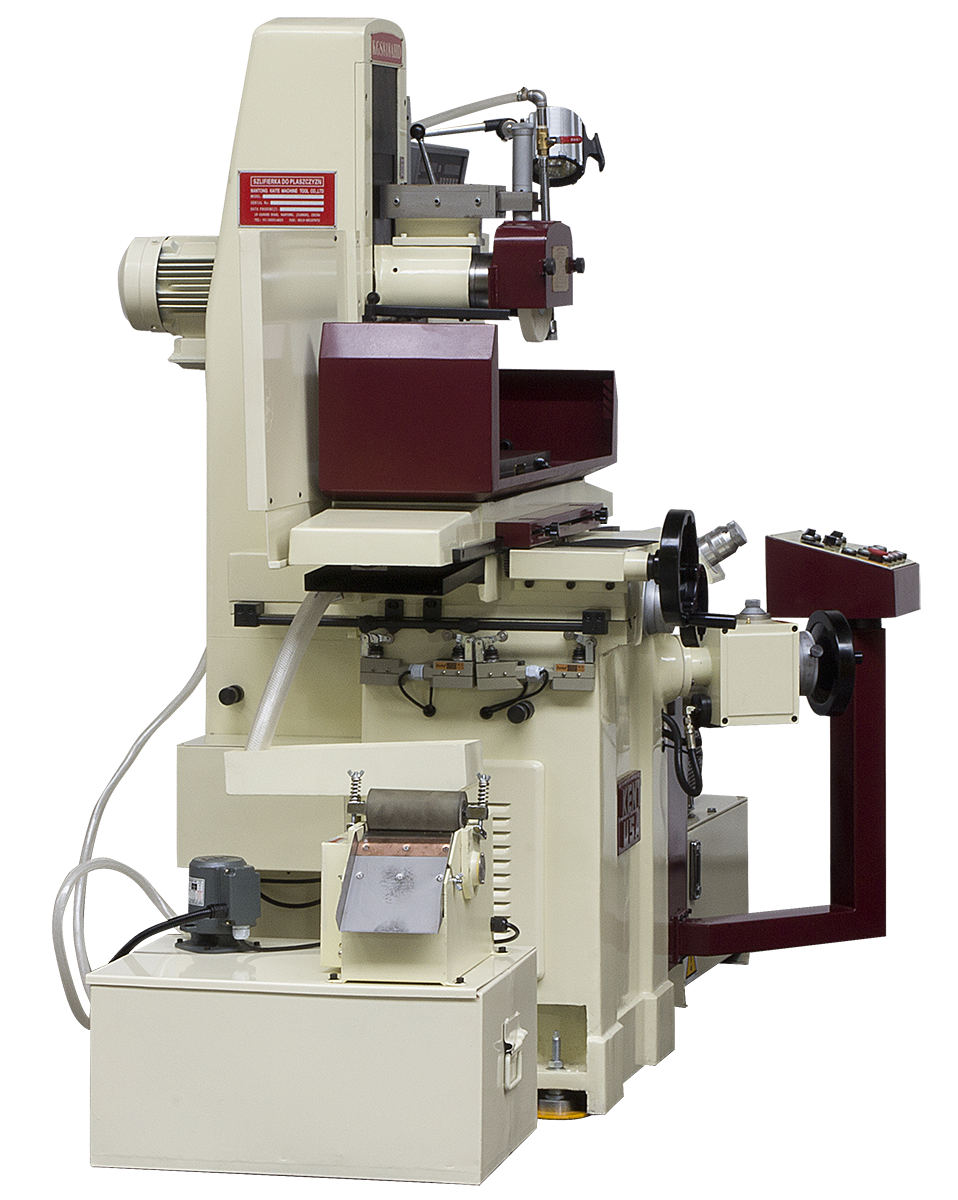

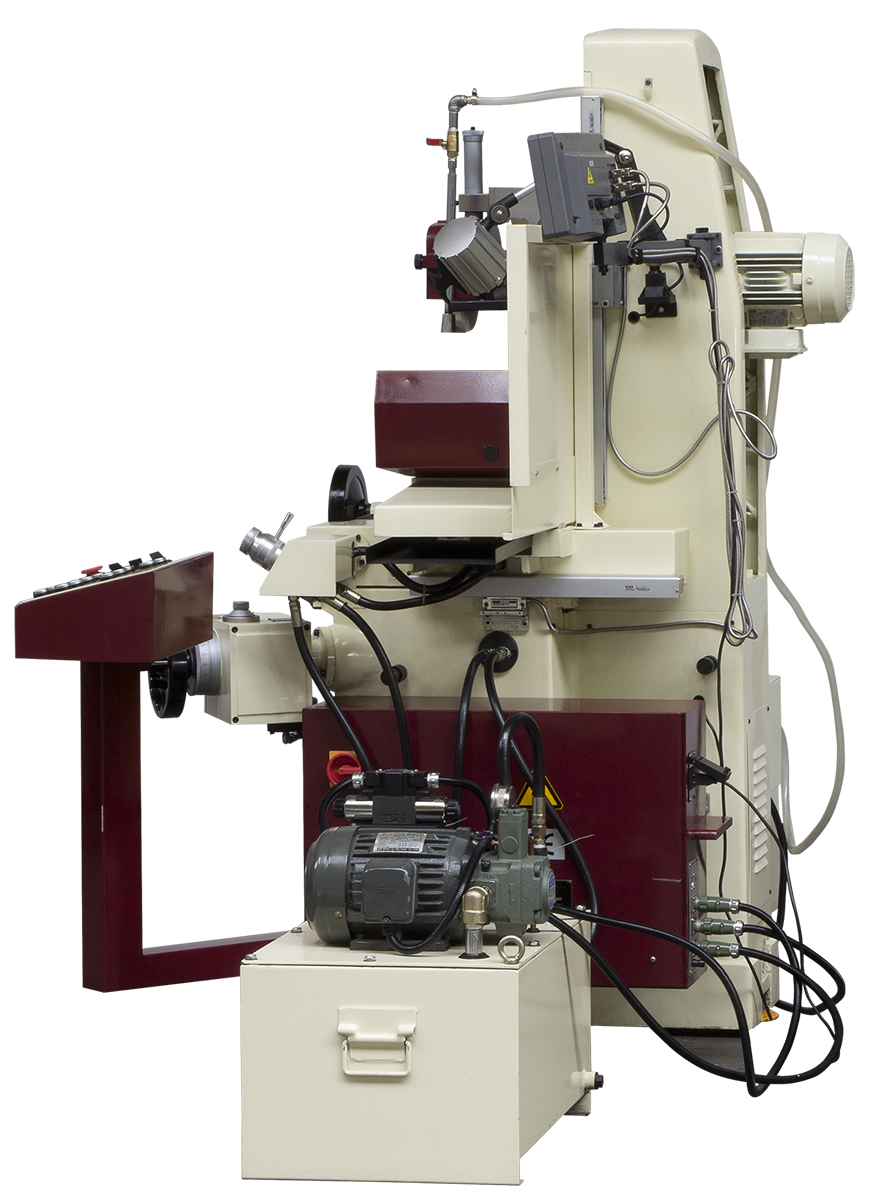

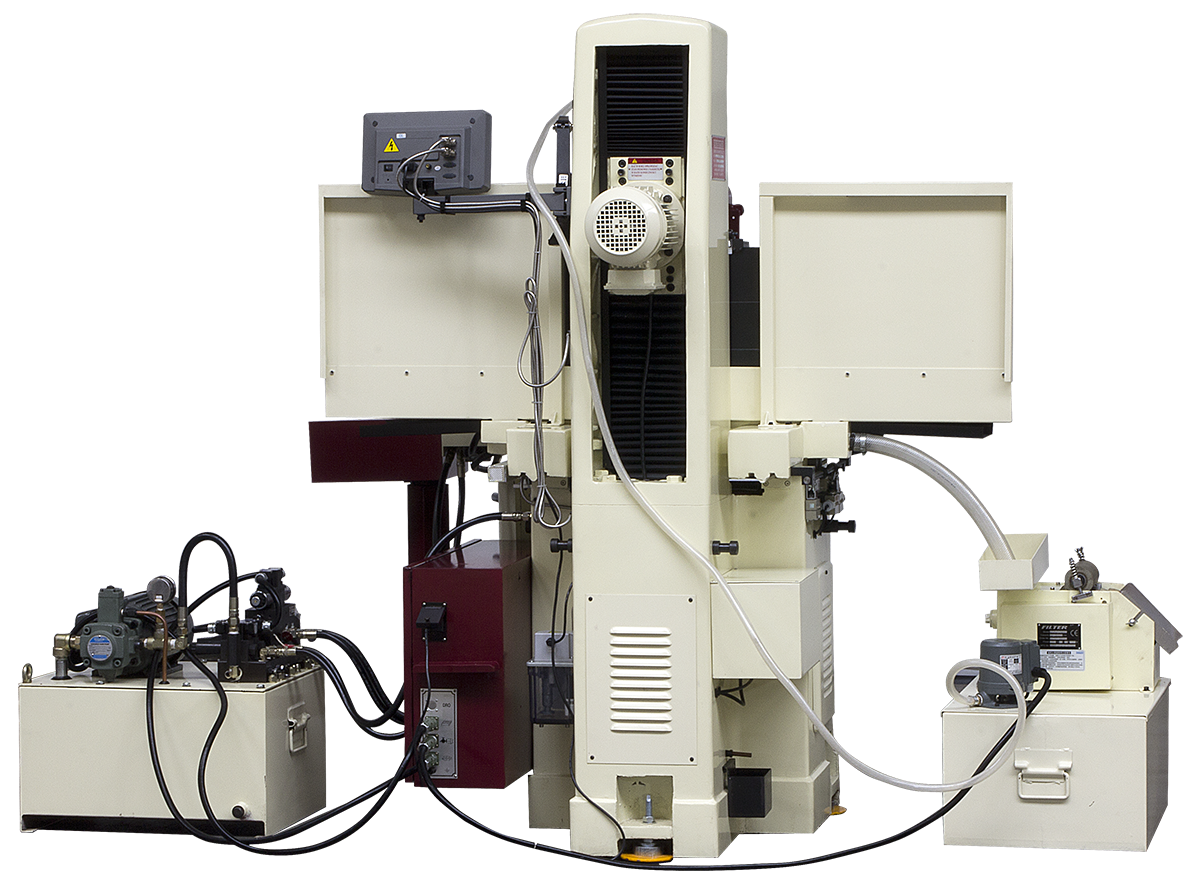

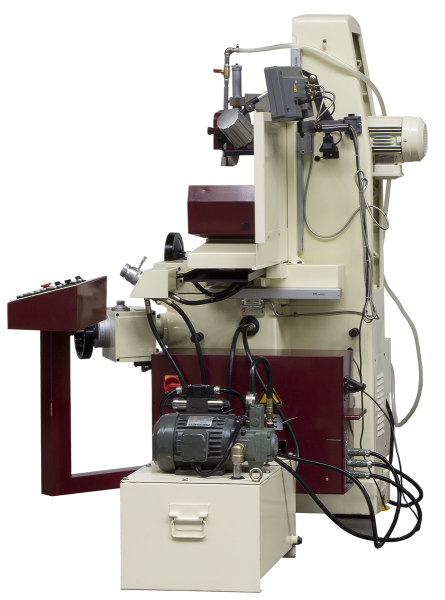

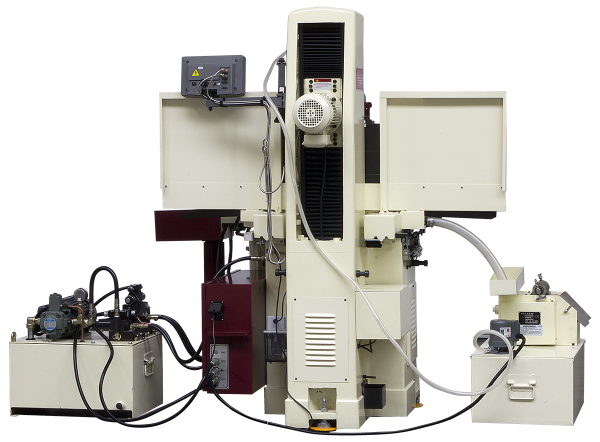

Automatic surface grinding machine KENT KGS 818 SD1 / SD2

Surface grinding machines

Automatic surface grinding machine KENT KGS 818 SD1 / SD2

Priced individually

Add to favorites

12 months of warranty

Contact with a trader:
Edyta Skrzypek
E-mail: edyta.skrzypek@eurometal.com.pl
Telefon: 609504408

KENT USA KGS 818 SD1/SD2 automatic surface grinding machine equipped with a Siemens PLC controller and a Siemens servo motor responsible for controlling the vertical travel of the headstock (Z axis). Automatic vertical feed of 0.001-0.1mm/pass and 0.01 pitch for transverse feed (Y-axis) provide the ability to perform rough grinding, finishing and sparking in one work cycle. Z axis ball screw - Taiwanese production, Y axis ball screw - Chinese production.

Product description
Product parameters (See more)

The KENT USA KGS 818 SD1/SD2 automatic surface grinder uses the Siemens + MPG PLC controller and is a machine with the ability to program a full cycle of detail grinding. Extended versions of KGS AHS grinders, equipped with a touch control panel, are available in two basic versions:

KGS SD1 - Grinding machine equipped with a PLC controller and a servomotor responsible for controlling the vertical travel of the headstock. Automatic vertical feed of 0.001-0.1mm/pass provides the ability to perform rough grinding, finishing and sparking out in one work cycle.

KGS SD2 - Grinding machine equipped with two servo motors that operate the vertical feed of the headstock and the transverse feed of the working table. Thanks to the automatic transverse feed with the possibility of a precise feed of 0.001mm/pass, it is possible to precisely grind the vertical edges of the detail, grooves or grooves.

Each KGS grinder, equipped with a hydraulic drive for longitudinal travel of the working table, can be available in the SD1 or SD2 version.

Small workpieces may be less well held by an electromagnetic table with a standard pitch. In order to ensure proper holding of small workpieces, an electromagnetic table with a smaller pitch (option) should be used.

The clamping force of the electromagnetic table is min. 100N / cm2. Alloy and high-alloy steels, due to the lower iron content, can be less well kept on the electromagnetic table. It should be remembered that materials such as copper, nickel, bronze and their alloys are diamagnets.

Standard equipment:

Grinding wheel
Rear guard
Magnetic table
PLC controller with Siemens touch panel
MPG knob
Vertical and transverse feed ball screw
Vertical feed servo in SD1 machines
Servo motor for vertical and lateral feed in SD2 machines
Static wheel balancer
CE declaration of conformity
User manual in English

Optional equipment (additionally payable):

Sustaining the table's operation in the event of a power failure - UPS
Device for parallel dressing of the grinding wheel
Device for dressing the grinding wheel at an angle
Basic magnetic separator
Magnetic separator with coolant pump and paper filter

Technical data	Unit	Value
The width of the table	[mm]	200
Table length	[mm]	460
Longitudinal feed	[mm]	510
Cross feed	[mm]	250
Distance from the table surface to the spindle axis	[mm]	530
Maximum table load	[kg]	150
T-slot for table clamping	[mm]	1 x 14
Table speed	[m/min]	0 - 25
Transverse travel per 1 division of the vernier scale	[mm]	0,02
Transverse travel per revolution of the wheel	[mm]	5
Transverse automatic feed per cut (SD1)	[mm]	0,5 – 12
Transverse automatic feed per cut (SD2)	[mm]	0,001/0,01/0,1
Accelerated cross feed	[mm/min]	780
Grinding wheel size	[mm]	200 x 25 x 32
Spindle rotation	[rpm/min]	0 - 2850
Feed per revolution of the MGP wheel	[-]	x1, x10, x100
Minimal automatic vertical feed	[mm]	0,001
Main engine power	[kW]	1,5
Hydraulic pump motor power	[kW]	1,5
Coolant pump motor power	[W]	90
Cross feed motor power	[W]	60
Floor area occupied	[mm]	2500 x 1900
Weight	[kg]	1320
