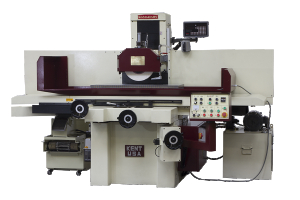

Automatic surface grinder KGS 1020 AHS

103 723,20 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Edyta Skrzypek
E-mail: edyta.skrzypek@eurometal.com.pl
Telefon: 609504408

The automatic surface grinder KGS 1020 AHS is produced by the well-known company KAITE. Grinders are used in all industrial plants, they are designed for continuous operation.

Quantity
Add to cart

The automatic surface grinder KGS 1020 AHS is produced by the well-known company KAITE. Grinders are used in all industrial plants, they are designed for continuous operation. They are characterized by a modern and stable structure. The main bodies are made of precise iron castings. As a result, the structure is suitably heavy and rigid, and damps vibrations. The grinders have a wide range of standard equipment. The longitudinal shift of the table is carried out hydraulically, with smooth speed regulation.
The spindle is based on angular contact bearings. The stress of the bearings ensures a backlash-free operation of the spindle, thanks to which a grinding accuracy of up to 2 microns can be obtained.
The hydraulic system based on specially designed valves ensures a gentle change of the table movement direction, without significant overloads and jerks.
Details of small dimensions may be less well held by an electromagnetic table with a standard scale. In order to ensure the correct holding of small details, an electromagnetic table with a smaller pitch (optional) should be used.

Standard equipment:
  • Grinding wheel
  • Rear guard
  • Magnetic table
  • Automatic feed for 2 axes
  • Microfeed
  • Static wheel balancer
  • CE declaration of conformity
  • User manual in English
Optional equipment (additionally payable):
  • Sustaining the table's operation in the event of a power failure - UPS
  • Device for parallel dressing of the grinding wheel
  • Device for dressing the grinding wheel at an angle
  • Basic magnetic separator
  • Magnetic separator with coolant pump and paper filter
  • Digital readout for 2 axes

Technical data Unit Value
The width of the table [mm] 255
Table length [mm] 510
Longitudinal feed [mm] 575
Cross feed [mm] 280
Distance from the table surface to the spindle axis [mm] 535
Maximum table load [kg] 300
T-slot for table clamping [mm] 1 x 14
Table speed [m/min] 5 - 25
Transverse travel per 1 division of the vernier scale [mm] 0,02
Transverse travel per revolution of the wheel [mm] 5
Transverse automatic feed per cut (SD1) [mm] 2
Transverse automatic feed per cut (SD2) [mm] 0,01
Accelerated cross feed [mm/min] 790
Grinding wheel size [mm] 200 x 25 x 32
Spindle rotation [rpm/min] 0 - 2850
Feed per revolution of the MGP wheel [-] x1, x10, x100
Minimal automatic vertical feed [mm] 0,005/0,1/0,015/0,02/0,025/ 0,03/0,04/0,05
Main engine power [kW] 2,2
Hydraulic pump motor power [kW] 1,5
Coolant pump motor power [W] 90
Cross feed motor power [W] 60
Floor area occupied [mm] 1900 x 2300
Weight [kg] 1680
