Column drilling machines

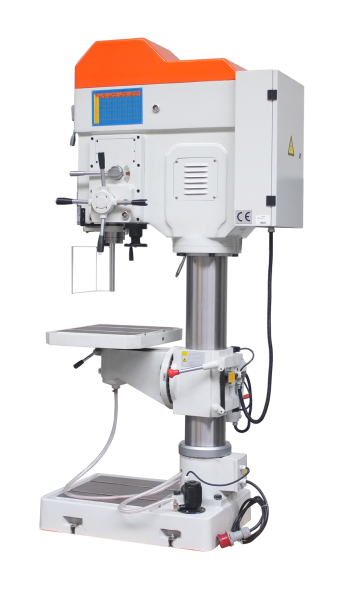

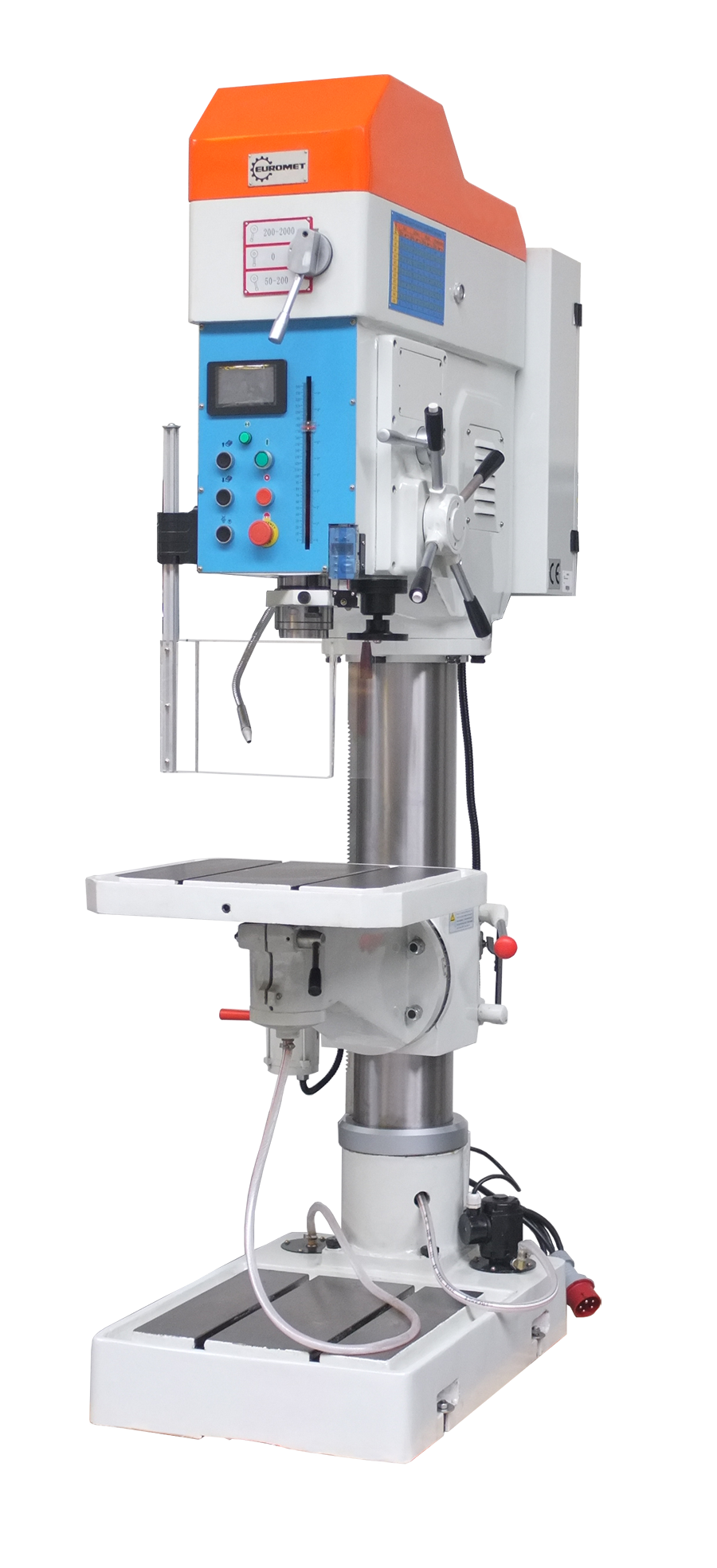

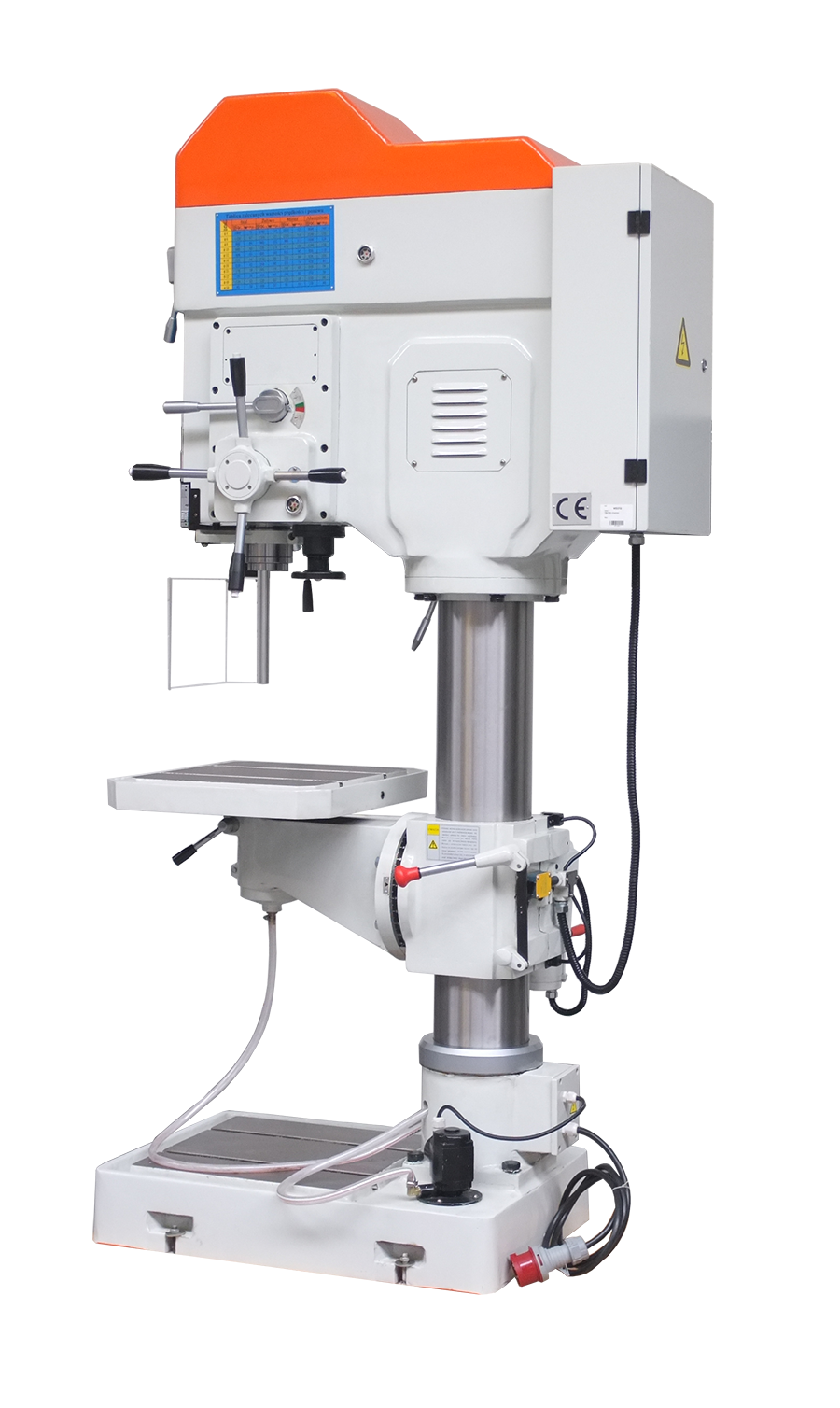

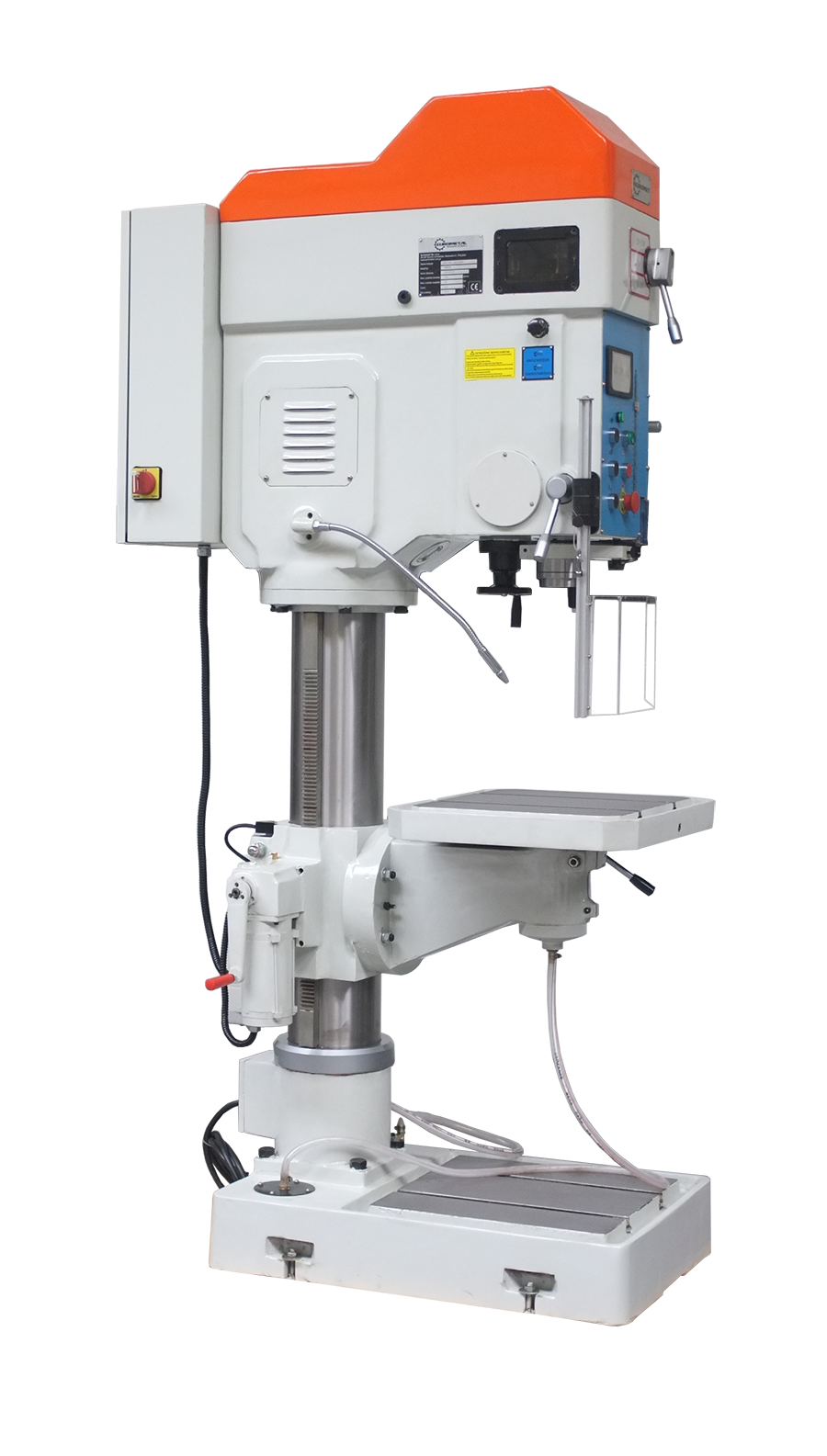

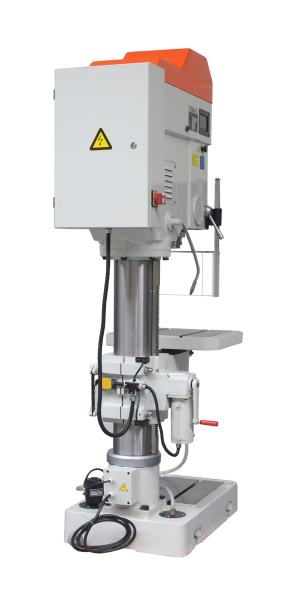

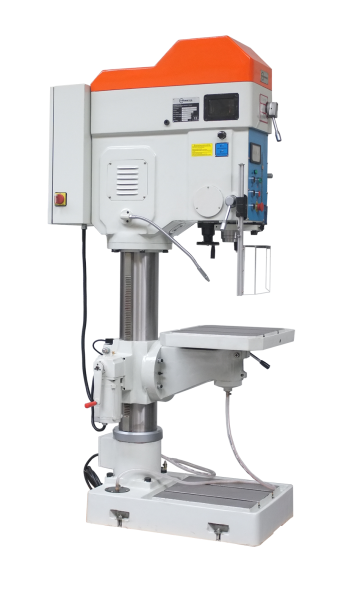

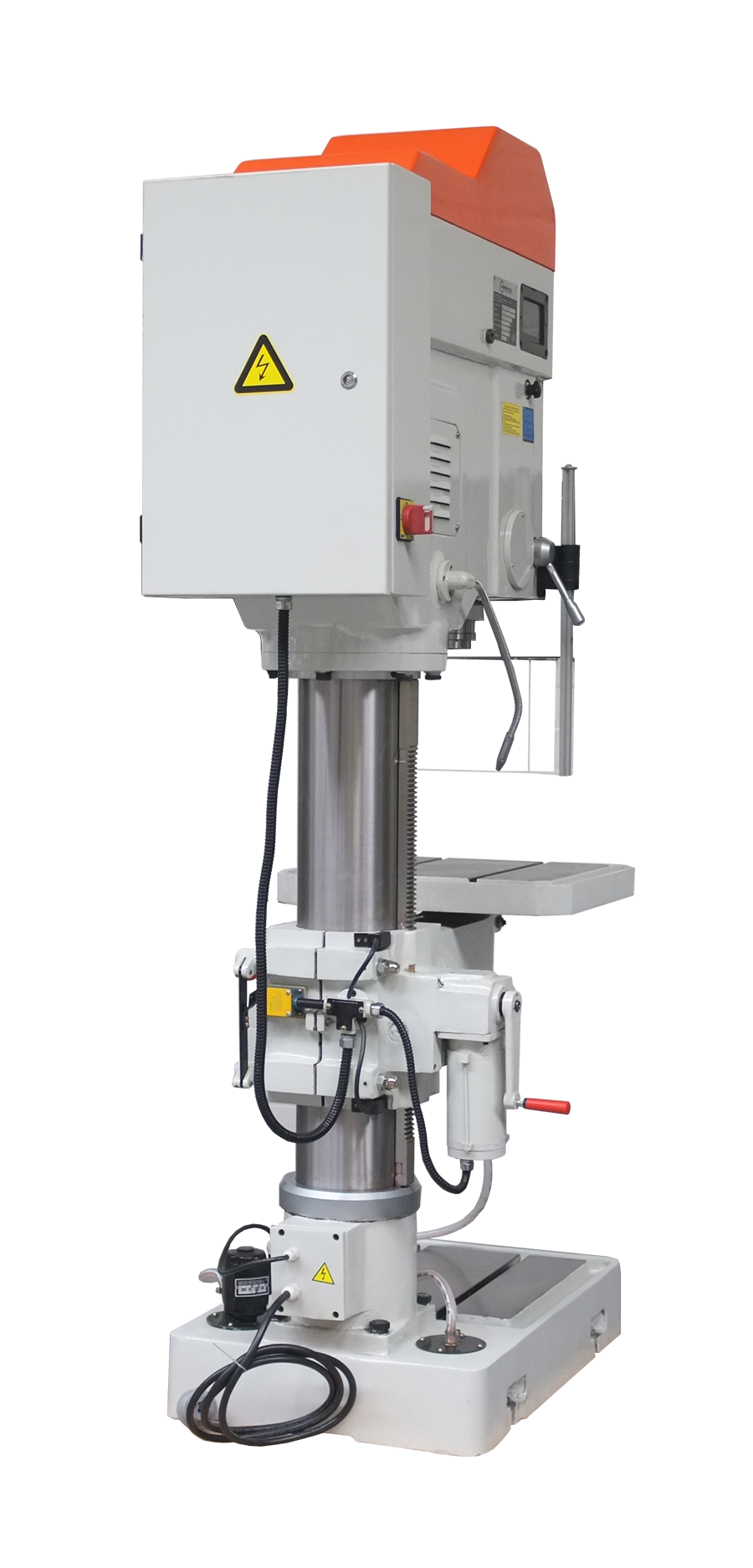

EUROMET W50FG pillar drilling machine

24 900,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The EUROMET W50FG pillar drill is used in production plants or workshops. It is characterized by compact mechanisms and ease of use. It is designed to perform the following operations: drilling, reaming, tapping, rough reaming, threading.

Quantity
Add to cart

The EUROMET W50FG pillar drill is used in production plants or workshops. It is characterized by compact mechanisms and ease of use. It is designed to perform the following operations:
  • drilling
  • reaming
  • drilling
  • rough boring
  • threading
The main features of the device:
  • strong construction
  • electrically lowered and raised table
  • automatic spindle feed
  • threading as standard
  • electromechanical clutch
  • speed change by inverter
  • outdoor halogen lighting
  • coolant pump
  • digital readout of the spindle speed
  • base with T-slots
A special application is drilling at an angle while maintaining high drilling parameters with the possibility of processing parts in a wide range of dimensions, made of various materials.
A solidly made, durable spindle also allows you to perform milling work.
The workbench support moves up and down with the ability to rotate ± 180 ° around the column. The work table can rotate 360 ​​° in the vertical axis and tilt ± 45 ° parallel to the support. This gives the possibility of a wider application with simple operation.

Standard equipment:
  • 45 ° tilting table
  • electrically raised / lowered table
  • coolant pump
  • lighting
  • automatic feed
  • speed change by inverter
  • digital readout of spindle speed
  • digital reading of the drilling depth
  • threading
  • chuck
  • base with T-slots
  • machine manual in English
  • CE declaration of conformity

Technical data Unit Value
Drilling diameter [mm] 50
Threading [-] M30
Spindle sleeve extension [mm] 180
Angular deflection of the working table [°] ± 45
Spindle taper [-] Morse No. 5
Number of spindle feeds [-] 20-204
Column diameter [mm] 180
The dimension of the working surface of the table [mm] 550 x 470
The dimension of the working surface of the base [mm] 450 x 460
T-slot for base and table [mm] 2x14
Electric motor [three-phase (YD90L-6/4-Special type)] [V] 3,3
Dimensions (L × W × H) [mm] 1055 x 810 x 2150
