Column drilling machines

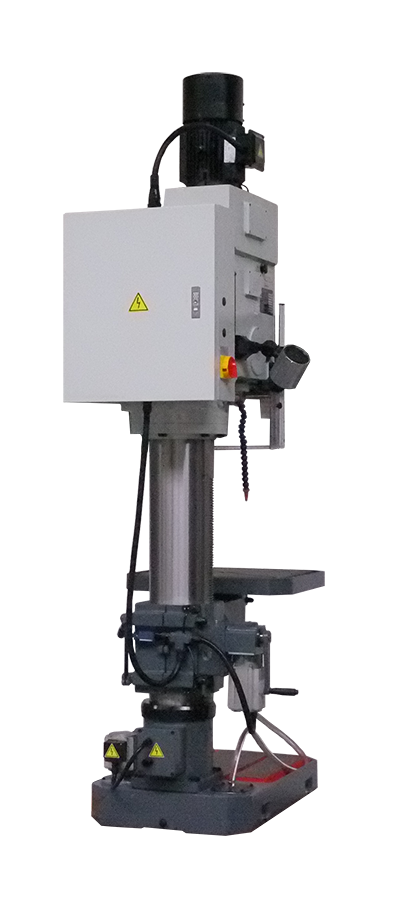

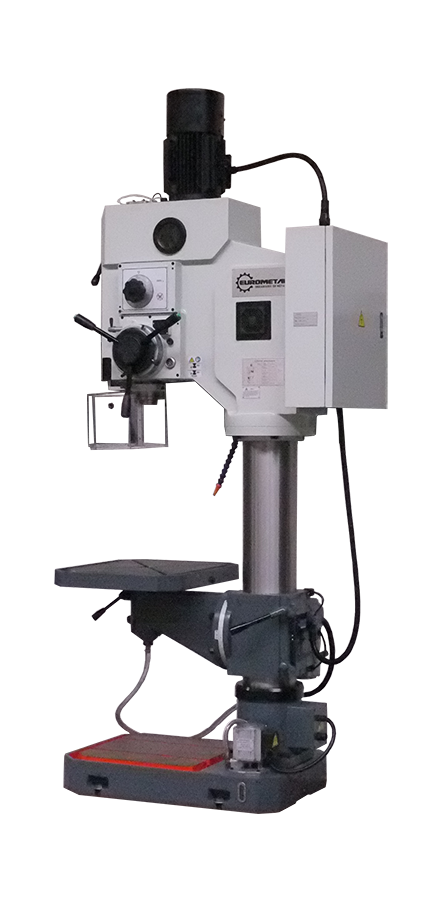

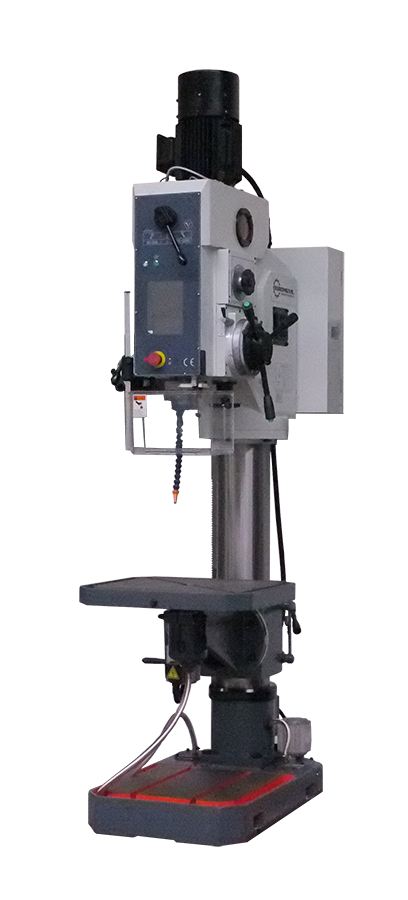

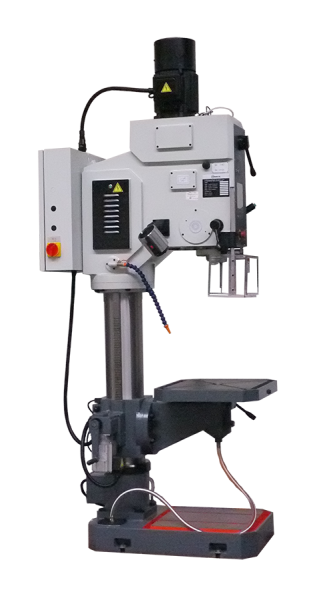

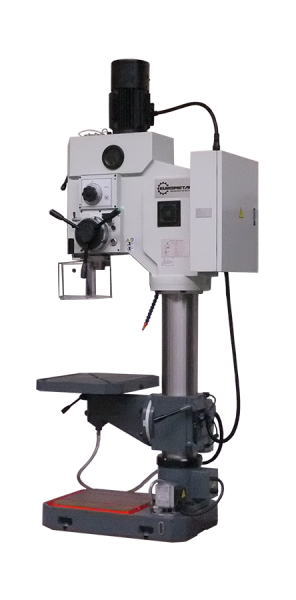

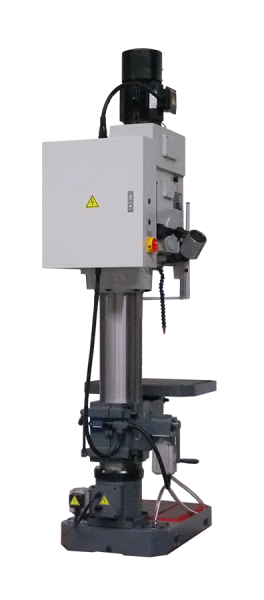

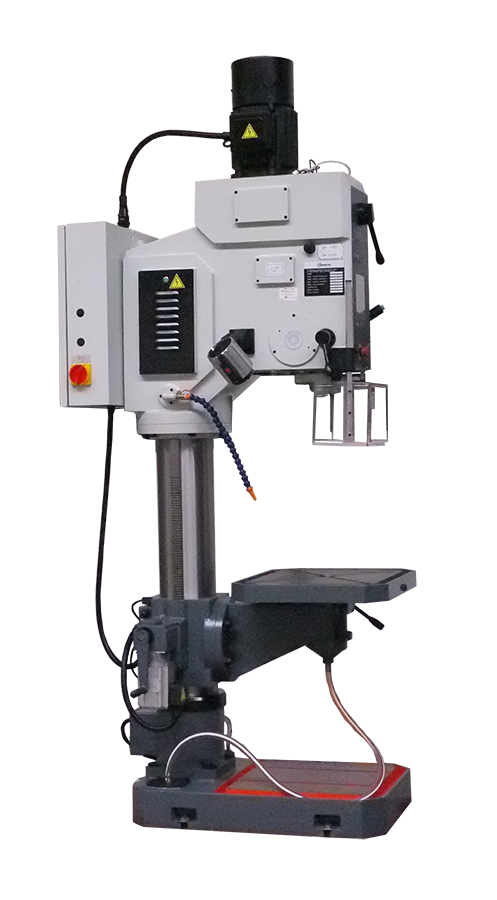

Euromet W50E TS NOVA pillar drill
32 950,00 zł net
No rating
The EUROMET W50E TS Nova pillar drill is perfect for use in production plants and workshops. An extremely durable touch screen ensures ease of use and quick access to the most important information, such as operating parameters or instructions handling. The machine ensures high efficiency and precision, among others: thanks to smooth regulation of rotational speed and automatic feed with automatic threading function.
Quantity
Add to cart
The EUROMET W50E TS Nova pillar drill is perfect for use in production plants and workshops. An extremely durable touch screen ensures ease of use and quick access to the most important information, such as operating parameters or the operating manual. The machine ensures high efficiency and precision, among others: thanks to smooth regulation of rotational speed and automatic feed with automatic threading function.
Machine Features:
- Drilling
- Reaming
- Threading in automatic mode
- Drilling
- Automatic feed
Standard equipment:
- 8” touch screen (allows you to control machine functions and view parameters)
- View the machine's operating instructions from the screen
- Drilling depth limiter
- The table tilts +/- 45 and lowers electrically
- Inverter (stepless speed change)
- Workspace lighting
- Automatic feed
- Instructions in English
- CE declaration
Optional equipment (paid additionally):
- laser drilling point indicator
| Technical data | Unit | Value |
|---|---|---|
| Drilling diameter | [mm] | 50 |
| Threading | [-] | M30 |
| Distance between the spindle axis and the column | [mm] | 360 |
| Distance between the end of the spindle and the worktable | [mm] | 550 |
| Distance between the end of the spindle and the base | [mm] | 1165 |
| Spindle stroke | [mm] | 190 |
| Working table travel | [mm] | 410 |
| Angular deflection of the working table | [°] | ± 45 |
| Spindle taper | [-] | MT4 |
| Spindle speed range | [rpm/min] | 50-2000 |
| Number of spindle feeds | [-] | 6 |
| Column diameter | [mm] | 140 |
| The dimension of the working surface of the table | [mm] | 580 x 460 |
| The dimension of the working surface of the base | [mm] | 445 x 435 |
| Voltage | [V] | 400 |
| Drill feed speeds | [mm/rpm] | 0,08~0,5 |
| Cooling circuit electric pump (three-phase motor) | [l/min] | 6 |
| Coolant pump motor power | [kW] | 0,18 |
| Spindle motor power | [kW] | 3 |
| Weight | [kg] | 730 |
| Dimensions (L × W × H) | [mm] | 970 x 680 x 2340 |
| Touch screen size | [mm] | 121.5 x 162 (8") |
