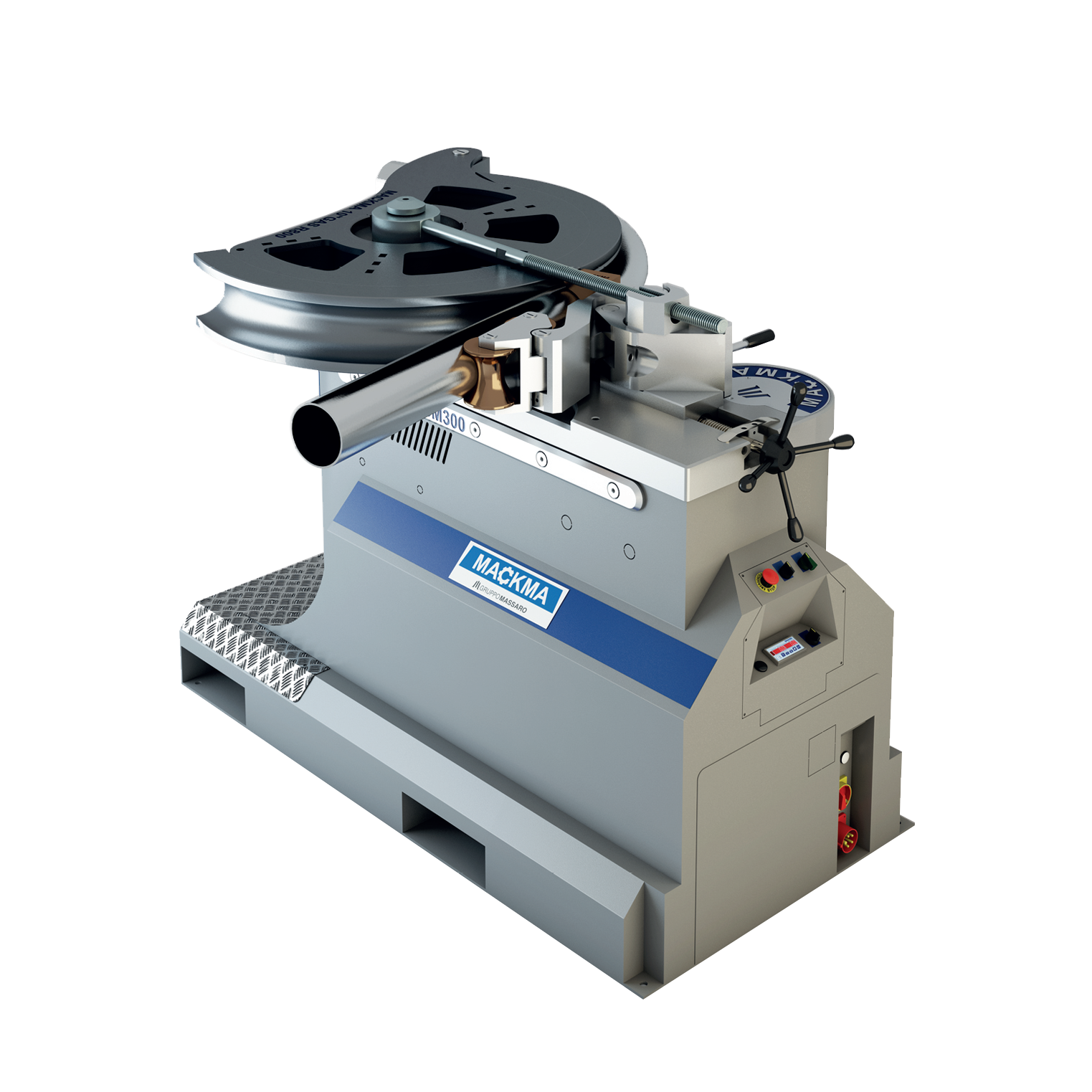

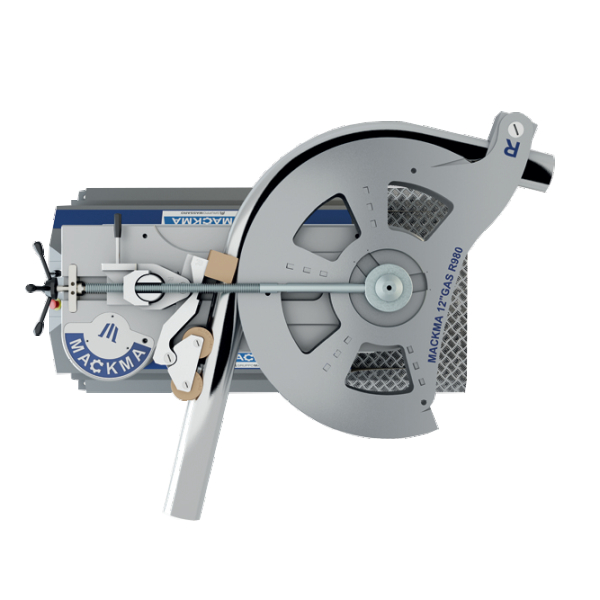

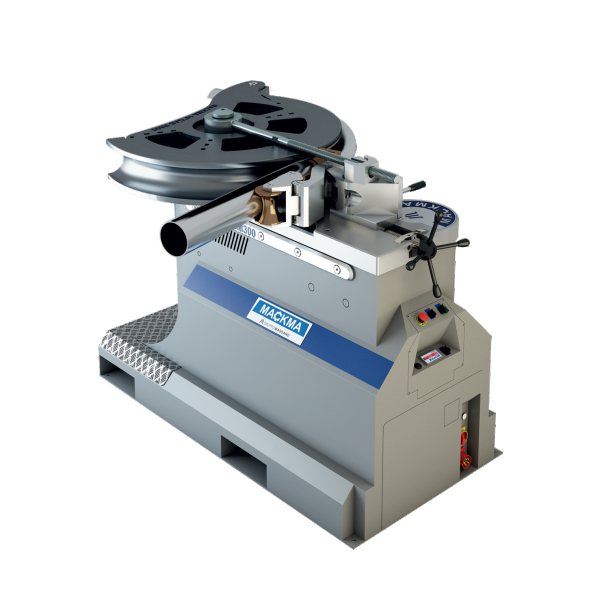

PIPE BENDING MACHINE - MACKMA BM300, MANDRELLESS, BENDING Ø 273 - 323.9MM
Priced individually
No rating
12 months of warranty

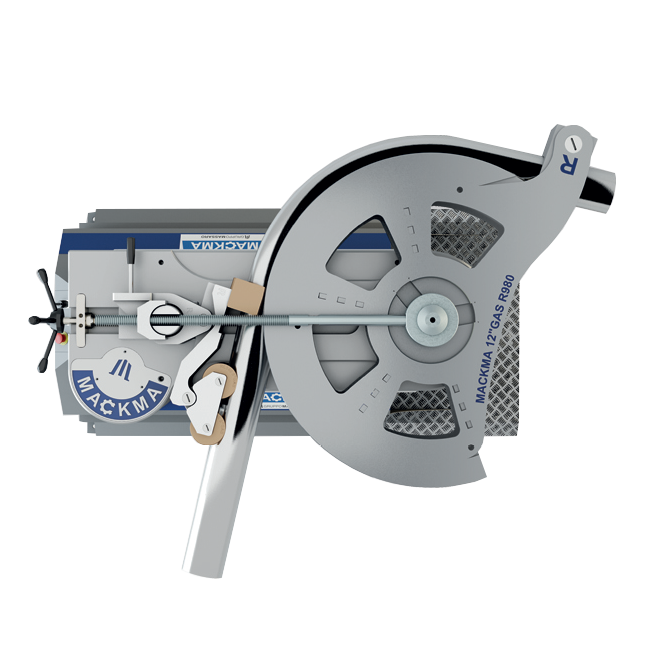

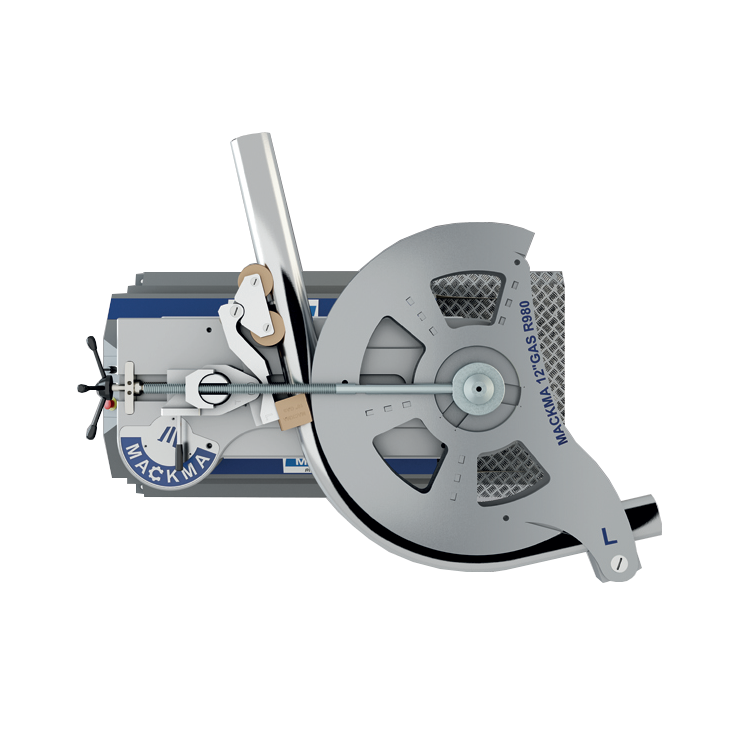

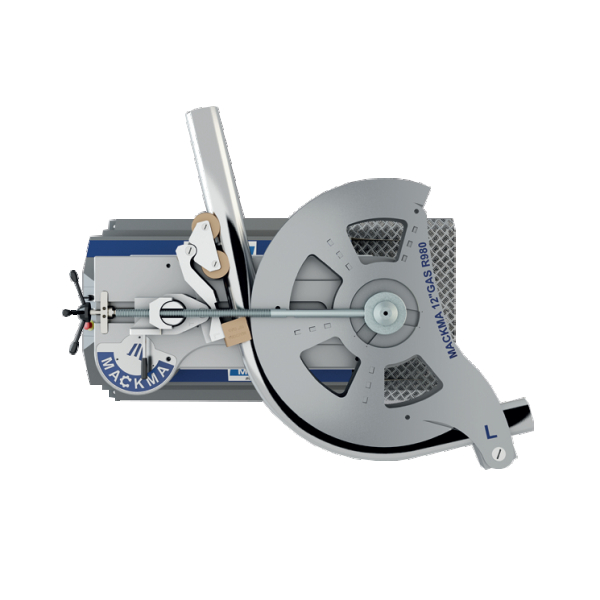

MACKMA BM300 is the only mandrelless pipe bender that allows for right and left bending. Its innovative design allows you to bend pipes with a diameter of up to 273 mm for a wall thickness of 18.26 mm and a maximum radius in the pipe axis of 1,700 mm.
MACKMA BM300 is the only mandrelless pipe bender that allows for right and left bending. Its innovative design allows you to bend pipes with a diameter of up to 273 mm for a wall thickness of 18.26 mm and a maximum radius in the pipe axis of 1,700 mm.
Manual pipe clamping controlled by a knob with a counter - to guarantee the highest possible level of repeatability. Easy-to-use control panel built into the body. Allows you to save up to 99 programs.
A potentiometer cooperating with the inverter regulates the bending speed depending on the pipe diameter and wall thickness. The design of the machine allows you to create complex bends that require the pipe to pass under the work plate. The modular structure of the bending die pin makes it possible to use tools from other companies.
The bending machine is powered only by an electric motor - without hydraulic elements. This results in low noise levels and operating costs.
To ensure long-term reliability, 100% of the components used in production are of Italian origin. The standard 2-year warranty is proof of the high quality of the machines.
Standard equipment:
- easy-to-use control panel built into the body - EXPERT. Allows you to save up to 99 complete bending processes.
- manual pipe clamp controlled by a knob with a counter
- bending speed adjustable with an inverter
- user manual in English
- 24 month warranty
Optional equipment (additionally paid):
- set of left and right bending tools (bending die, pressure die and slides)
- 3 meter long pipe positioner
- 6 meter long pipe positioner
- mechanical deburring device
- holder for tools from other manufacturers
- mobile control panel
- precise wheels for free movement of the machine
| Technical data | Unit | Value |
|---|---|---|
| Outer diameter of the pipe | [mm] | 323,9 |
| Bending radius | [mm] | 1700 |
| Black steel pipe diameter when bent with a tensile force of 42 kg / mm2 | [mm] | 273 |
| Pipe diameter for bending carbon steel with a tensile force of 35 kg / mm2 | [mm] | 323.9 |
| Pipe diameter when bent made of stainless steel with tensile strength (AISI 304/316) 65 kg / mm2 | [mm] | 273 x 12,7 |
| Torque | [N/m] | 500 000 |
| Bending angle | [°] | 180 |
| Head rotation speed | [rpm] | 0,4 |
| Bending direction | [-] | prawy i lewy |
| Supply voltage | [V] | 380/400 |
| Installed power | [kW] | 11 |
| Temperature range during operation | [°] | 0-50 |
| Device dimensions | [mm] | 1700 x 1800 x 3500 |
| Weight | [kg] | 3800 |
