Pipe and section bending machines - without mandrel

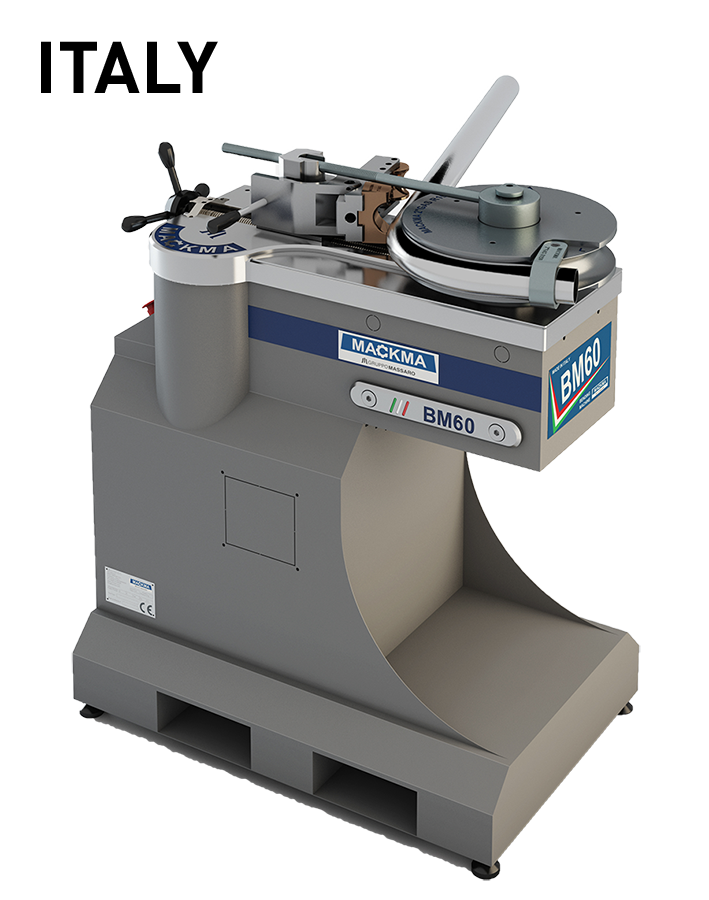

PIPE BENDING MACHINE - MACKMA BM60, MANDRELLESS, BENDING Ø 60 - 64MM

59 734,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

The MACKMA BM60 is the only mandrelless pipe bender that allows for both right and left bending using special tools. Another feature that makes the BM60 unique is its ability to be combined with a deburring machine for the inner and outer edges of pipes. Its innovative design allows you to bend pipes with a diameter of up to 60 mm for a wall thickness of 4 mm with a minimum radius of 3xOD and a maximum radius of 370 mm.

Quantity
Add to cart

The MACKMA BM60 is the only mandrelless pipe bender that allows for both right and left bending using special tools. Another feature that makes the BM60 unique is its ability to be combined with a deburring machine for the inner and outer edges of pipes. Its innovative design allows you to bend pipes with a diameter of up to 60 mm for a wall thickness of 4 mm with a minimum radius of 3xOD and a maximum radius of 370 mm.
Manual pipe clamping controlled by a knob with a counter - to guarantee the highest possible level of repeatability. Easy-to-use control panel built into the body. Allows you to save up to 99 programs.
A potentiometer cooperating with the inverter regulates the bending speed depending on the pipe diameter and wall thickness. The design of the machine allows you to create complex bends that require the pipe to pass under the working plate. The modular structure of the bending die pin makes it possible to use tools from other companies.
The bending machine is powered only by an electric motor - without hydraulic elements. This results in low noise levels and operating costs.
The manufacturer uses high-quality Italian components, which ensure long durability of the machine (2-year warranty).

Standard equipment:
  • easy-to-use control panel built into the body - EXPERT. Allows you to save up to 99 complete bending processes.
  • manual pipe clamp controlled by a knob with a counter
  • bending speed adjustable with an inverter
  • user manual in English
  • 24 month warranty
Optional equipment (additionally paid):
  • set of left and right bending tools (bending die, pressure die and slides)
  • 3 meter long pipe positioner
  • 6 meter long pipe positioner
  • mechanical deburring device
  • holder for tools from other manufacturers
  • mobile control panel
  • precise wheels for free movement of the machine

Technical data Unit Value
Outer diameter of the pipe [mm] 60
Bending radius [mm] 370
Black steel pipe diameter when bent with a tensile force of 42 kg / mm2 [mm] 60
Pipe diameter for bending carbon steel with a tensile force of 35 kg / mm2 [mm] 64
Pipe diameter when bent made of stainless steel with tensile strength (AISI 304/316) 65 kg / mm2 [mm] 64 x 3
Torque [N/m] 8000
Working plate height h1 [mm] 300
Working plate length l1 [mm] 360
Bending angle [°] 180
Head rotation speed [rpm] 2
Bending direction [-] prawy i lewy
Supply voltage [V] 380/400
Installed power [kW] 1,5
Temperature range during operation [°] 0-50
Device dimensions [mm] 620 x 1100 x 940
Weight [kg] 210
