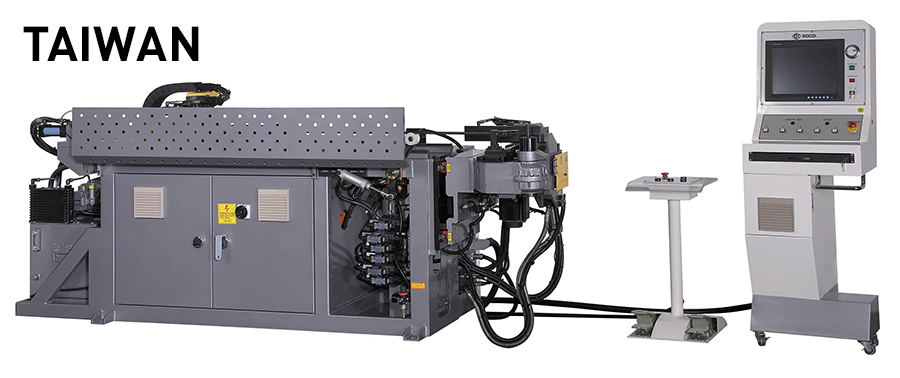

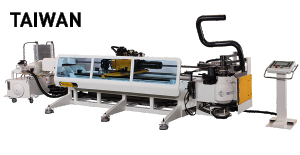

SOCO V SB-20x4A-3SV electric CNC pipe bender

Pipe and section bending machines - with mandrel

SOCO V SB-20x4A-3SV electric CNC pipe bender

292 000,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

SOCO A series hydraulic bending machines equipped with CNC control and servo motor drives for 3-4 axes, with one, two or three stacks of dies. The unique DGT bending head drive system, using a gear transmission and a servo motor drive, ensures even greater bending efficiency and stability. Operation is simple and intuitive, and the bending accuracy is very high.

Quantity

Main features of the device:

Unique head design – DGT system
CNC controller with touch screen
The tube carriage is fed using a toothed rack and a servomotor
Possibility to mount multiple stacks of dies and rolls – for large radii
Programmable force of the supporting device for 1D bending
Programmable arc length for large radii
Material elasticity compensation for roll bending
Compensation for die bending
Entering data in the YBC and XYZ system
Possibility to convert data from XYZ to YBC
The bending arm is equipped with an additional actuator supporting the bending process - booster
Electrical system equipped with a cooling system
Automatic lubrication system for the mandrel increases its life as well as the quality and accuracy of bending
Smoothing die support with lubrication
The control panel is placed on a movable base, enabling the most favorable positioning for the operator

Main control features:

Operating system running under Windows
Mitsubishi servomotors that feed and rotate the pipe
Possibility to save programs on hard disk or FDD
Ability to store 30,000 files (up to 110 bends per pipe)
Possibility of 3D visualization of the bent model
Possibility to convert from YBC to XYZ and vice versa
Possibility of freely rotating the element on the display

Standard equipment:

Early pin retraction system
Automatic pin lubrication system
Central lubrication system
Bending die support system
Portable control panel
User manual in English
CE Declaration of Conformity

Technical data	Unit	Value
Diameter of the bent pipe (steel)	[mm]	1.2 - 20
Diameter of the bent pipe (stainless steel)	[mm]	1.2 - 16
Tube length with mandrel	[mm]	2070
Bending radius	[mm]	80
Bending angle	[°]	190
Bending accuracy	[°]	+/- 0,1
The accuracy of the positioning movements	[°]	+/- 0,1
Accuracy of the feed	[°]	+/- 0,1
Die bending radius - profile	[mm]	2,5D – 4D
Die bending radius - pipe	[mm]	1,5D – 4D
Bending radius on rollers - pipe	[mm]	6D - ∞
Roller bending radius - profile	[mm]	8D - ∞
1D bending	[-]	Tak
Die radius difference	[mm]	80
Dimensions	[mm]	2780x 950x 1120
Weight	[kg]	1500
