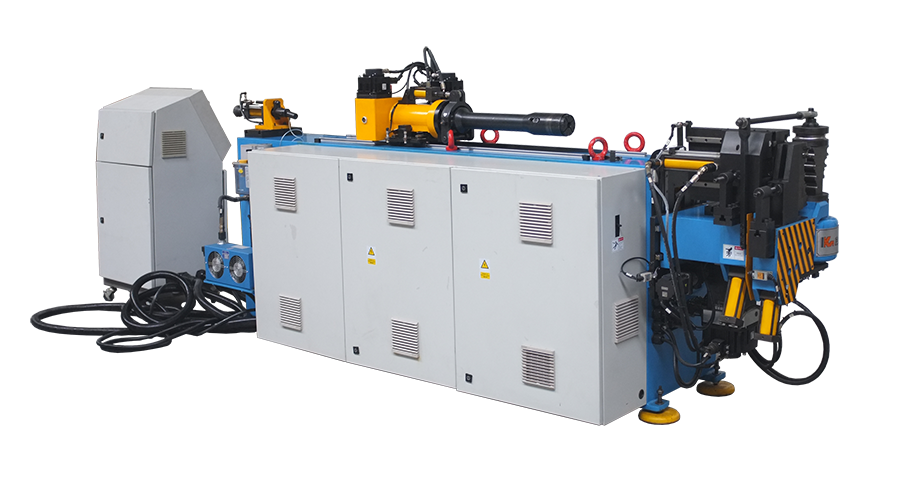

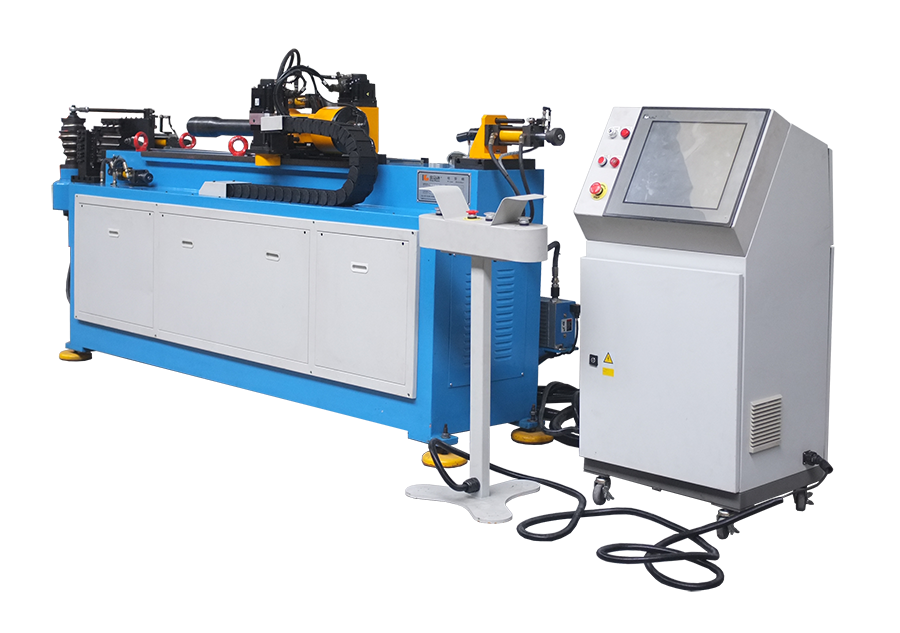

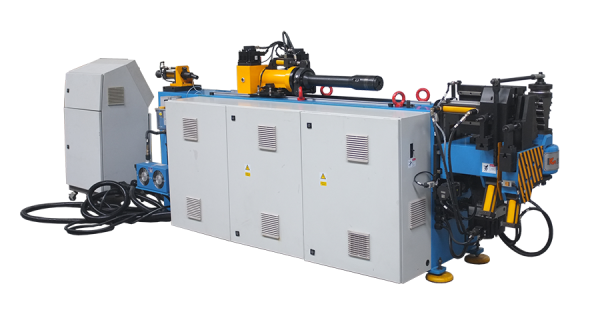

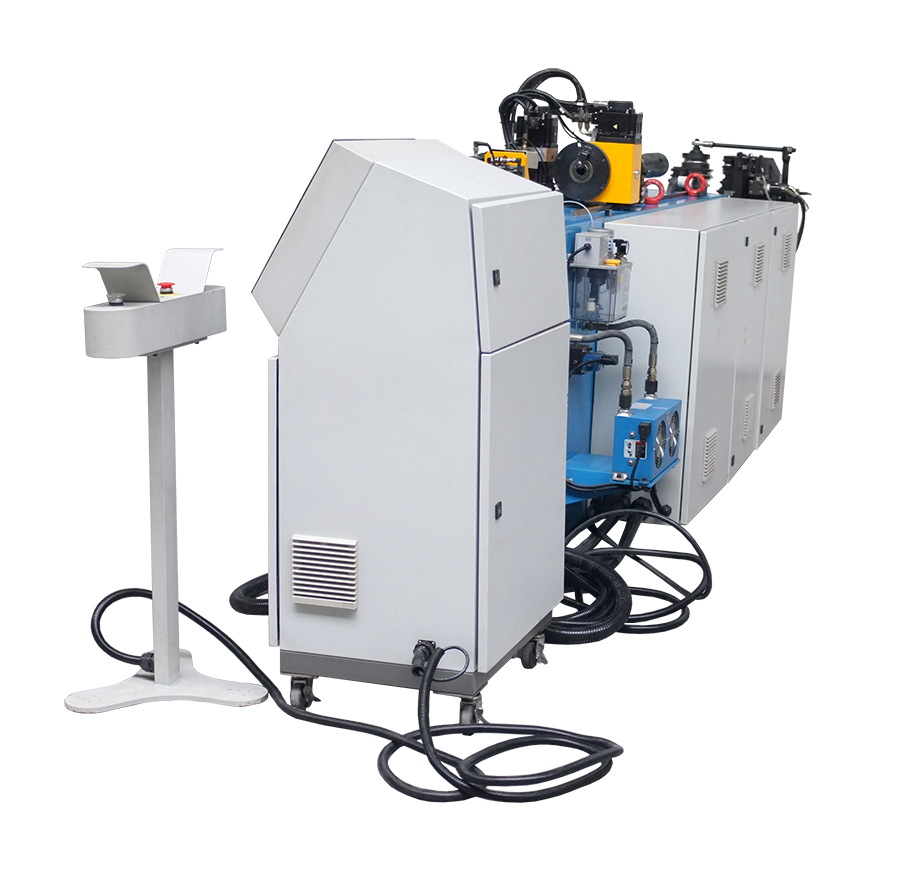

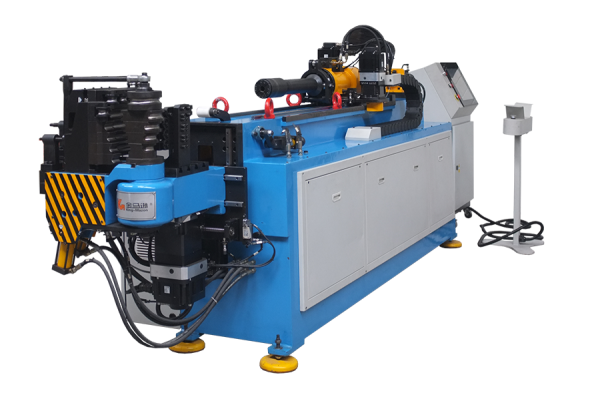

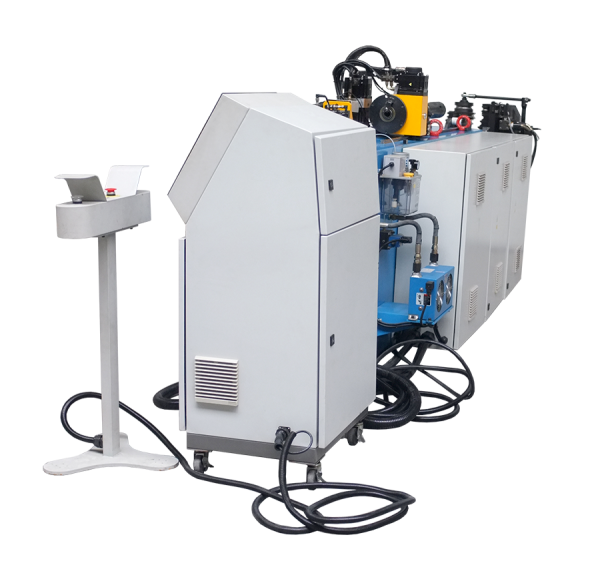

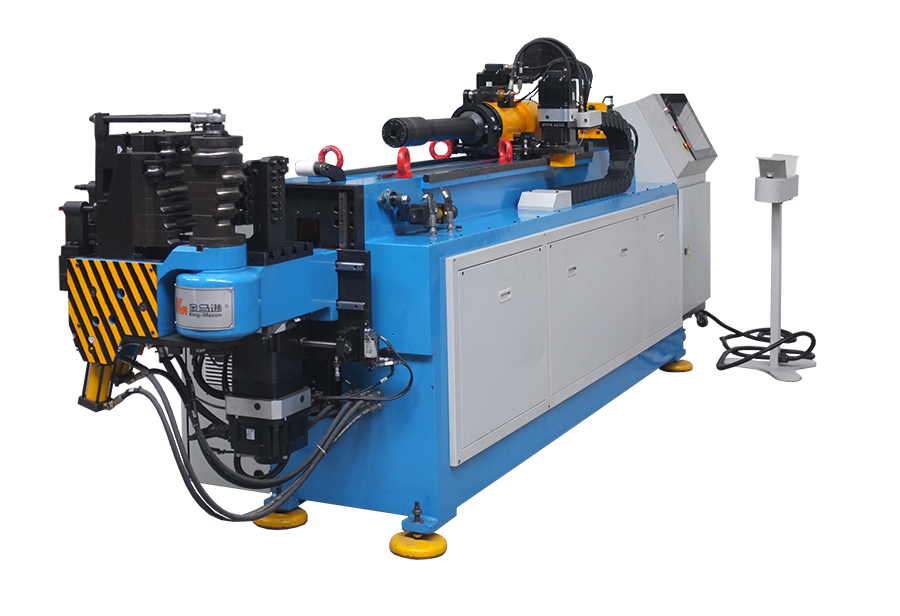

KM-A25-CNC-520 pipe bender

Pipe and section bending machines - with mandrel

137 800,00 zł net

Add to favorites

Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252

King Mazon KM-A25-CNC-520 pipe bender with intelligent CNC control, 5 bending levels, for 25mm diameter pipes with automatic functions.

1. Industrial PC with intelligent CNC control managing 5 axes.

2. 5 axes controlled by servomotors

3. Programming via touch screen,

4. Bending with and without a mandrel

5. Possibility to enter data in the XYZ or YBC system. Possibility to convert XYZ data to YBC along with pipe length calculation.

6. We will use a hard drive to save programs.

7. The program saves the entered data in the event of a sudden power cut

8. Manual, semi-automatic and automatic functions

9. Possibility to simulate bending and observe interference points in order to make corrections and increase efficiency

10. The bending speed, feed and rotation speed can be individually adjusted for each program step

11. The automatic spindle lubrication system can be disabled from the control position

12. 3D graphics

13. Auto CAD files can be read by the control with automatic program creation

14. Automatic change of bending level when bending different radii

15. Elongation compensation and relaxation function

16. Diagnosis system with error alarms displayed

Component equipment

Technical data	Unit	Value
Diameter of the bent pipe (steel)	[mm]	0.01 - 25.4
Diameter of the bent pipe (stainless steel)	[mm]	0.01 - 19.05
Tube length with mandrel	[mm]	1500
Bending radius	[mm]	100
Bending angle	[°]	0-190
Bending speed	[°/sec]	40
Feed speed	[mm/s]	750
Bending accuracy	[°]	±0.1
Accuracy of the feed	[°]	±0,1
Main engine power	[kW]	4
B axis rotation accuracy	[°]	±0,1
C axis bending accuracy	[°]	±0,1
Wall thickness	[mm]	1,5
Die radius difference	[mm]	40
Dimensions	[mm]	3500x800x1350
Weight	[kg]	1000
