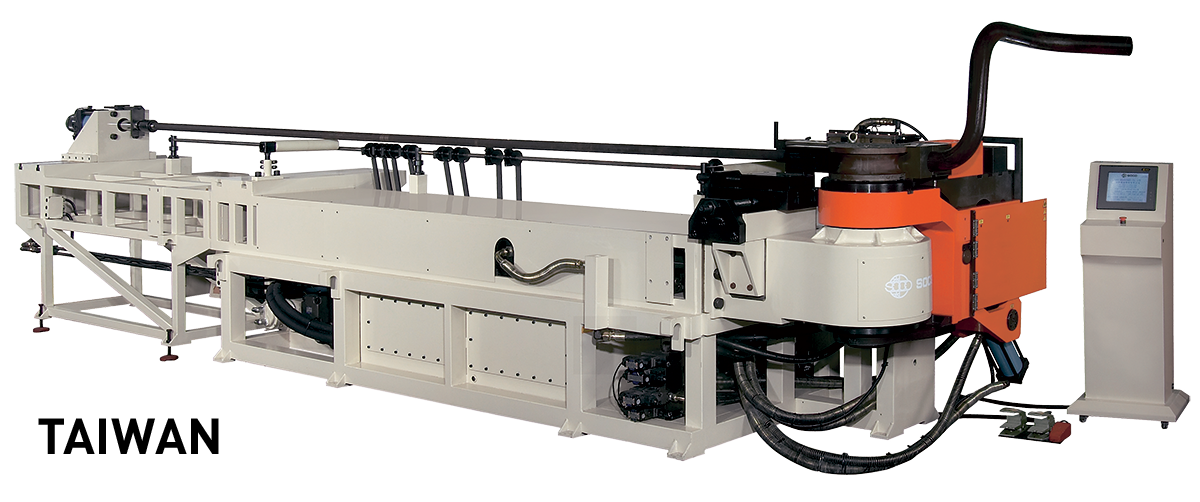

SOCO SB-130 NC hydraulic pipe bender

Pipe and section bending machines - with mandrel

SOCO SB-130 NC hydraulic pipe bender

388 271,10 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The SOCO SB-130 NC hydraulic pipe bender is equipped with an NC controller and a touch screen. Thanks to the use of these components, operation is simple and intuitive, and the bending accuracy is very high. Semi-automatic bending machines are an ideal solution for small and medium-sized enterprises.

Quantity

Main features of the device:

NC controller with touch screen
Possibility to program up to 9 bending angles
Simple operator interface and easy data transmission
Possibility to store up to 500 programs
High bending accuracy – up to +-/0.15°
Self-diagnosis function and display of error messages on the monitor screen
Machines designed for bending steel, stainless steel, aluminum, copper
4 or 8 length stops (option)

Standard equipment:

NC control with touch screen
Hydraulic cylinder supporting the bending process (booster)
Automatic pin lubrication system
System for releasing the bending arm before bending is completed
User manual in English
CE Declaration of Conformity

Optional equipment (additionally paid):

Mechanical length stops
Additional actuator to open the bending die
Arms to support the bending arm
Additional tools for bending pipes and profiles

Technical data	Unit	Value
Diameter of the bent pipe (steel)	[mm]	4 - 127
Diameter of the bent pipe (stainless steel)	[mm]	3 - 120
Tube length with mandrel	[mm]	5200
Bending radius	[mm]	500
Bending angle	[°]	190
Number of bends per pipe	[-]	9
Dimensions	[mm]	7000x2150x1560
Weight	[kg]	10000
