Pipe and section bending machines - with mandrel

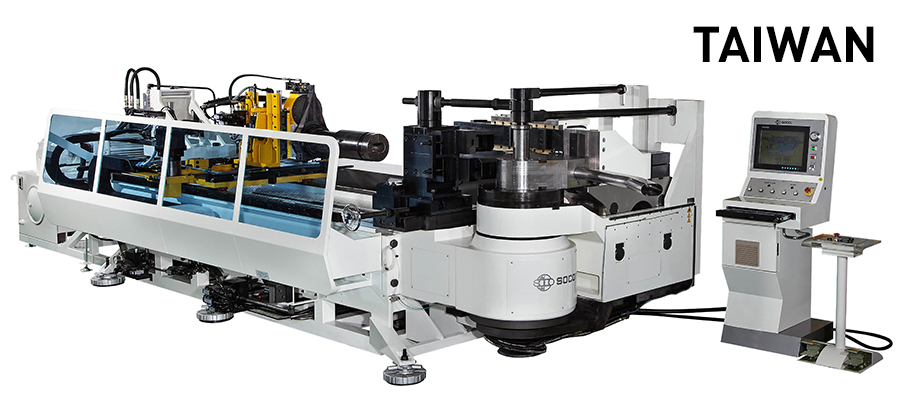

SOCO SB-90x2B-1S CNC pipe bender

623 292,60 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

SOCO 2B series hydraulic bending machines equipped with CNC control and servo motor drives for 2 axes. Operation is simple and intuitive, and the bending accuracy is very high.

Quantity
Add to cart

SOCO 2B series hydraulic bending machines equipped with CNC control and servo motor drives for 2 axes. Operation is simple and intuitive, and the bending accuracy is very high.
Main features of the device
  • CNC controller with touch screen
  • Entering data in the YBC and XYZ system
  • Possibility to convert data from XYZ to YBC
  • Feed and rotation performed using servo motors - this solution is characterized by high reliability, precision and efficiency
  • Hydraulic bending arm equipped with an additional actuator supporting the bending process
  • Electrical system equipped with a cooling system
  • Automatic lubrication system for the mandrel increases its life as well as the quality and accuracy of bending
  • Automatic compensation of material elasticity
  • Smoothing die support
  • Spindle retraction programming function
  • The control panel is placed on a movable base, enabling the most favorable positioning for the operator
Main control features:
  • Operating system running under Windows
  • Mitsubishi servomotors that feed and rotate the pipe
  • Possibility to save programs on hard disk or FDD
  • Ability to store 30,000 files (up to 110 bends per pipe)
  • Possibility of 3D visualization of the bent model
  • Possibility to convert from YBC to XYZ and vice versa
  • Possibility of freely rotating the element on the display
  • Possibility to download monthly production
Optional software:
  • Ability to read AutoCAD files
  • Possibility of connecting to a measuring system and reading current machine parameters

Standard equipment:
  • NC control with touch screen
  • Early pin retraction system
  • Automatic pin lubrication system
  • Central lubrication system
  • Bending die support system
  • Portable control panel
  • User manual in English
  • CE declaration of conformity

Technical data Unit Value
Diameter of the bent pipe (steel) [mm] 2.1 - 88.9
Diameter of the bent pipe (stainless steel) [mm] 1.5 - 88.9
Tube length with mandrel [mm] 4100
Single travel [mm] 2850
Bending radius [mm] 250
Bending angle [°] 190
Bending speed [°/sec] 25
Speed of setting movements [°/s] 160
Feed speed [mm/s] 800
Bending accuracy [°] +/- 0,15
The accuracy of the positioning movements [°] +/- 0,1
Accuracy of the feed [°] +/- 0,1
Hydraulic pump motor power [KM] 30
Actuating actuator power [W] 3500
Power of the feed servo motor [W] 3500
Dimensions [mm] 4950x1850x1550
Weight [kg] 7300
