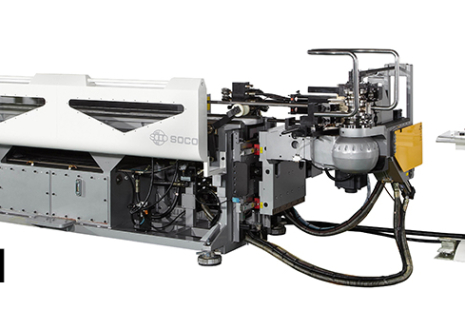

SOCO A SB-30x4A-2S CNC pipe bender

Pipe and section bending machines - with mandrel

SOCO A SB-30x4A-2S CNC pipe bender

293 895,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

SOCO A series hydraulic bending machines equipped with CNC control and servo motor drives for 3-4 axes, with one, two or three stacks of dies. The unique DGT bending head drive system, using a gear transmission and a servo motor drive, ensures even greater bending efficiency and stability. Operation is simple and intuitive, and the bending accuracy is very high.

Quantity

Main features of the device:

Unique head design – DGT system
CNC controller with touch screen
The tube carriage is fed using a toothed rack and a servomotor
Possibility to program two speeds of pin retraction
Central lubrication system for guides
2 speeds of early stem retraction
Entering data in the YBC and XYZ system
Possibility to convert data from XYZ to YBC
bending arm equipped with an additional actuator supporting the bending process - booster
Electrical system equipped with a cooling system
Automatic lubrication system for the mandrel increases its life as well as the quality and accuracy of bending
Smoothing die support with lubrication
The control panel is placed on a movable base, enabling the most favorable positioning for the operator

Main control features:

Operating system running under Windows
Mitsubishi servomotors that feed and rotate the pipe
Possibility to save programs on hard disk or FDD
Ability to store 30,000 files (up to 110 bends per pipe)
Possibility of 3D visualization of the bent model
Possibility to convert from YBC to XYZ and vice versa
Possibility of freely rotating the element on the display
Possibility to download monthly production

Optional software:

Ability to read AutoCAD files
Possibility of connecting to a measuring system and reading current machine parameters

Standard equipment of SOCO A pipe benders:

Early pin retraction system
Automatic pin lubrication system
Central lubrication system
Bending die support system
Portable control panel
User manual

Technical data	Unit	Value
Diameter of the bent pipe (steel)	[mm]	1.5 - 30
Diameter of the bent pipe (stainless steel)	[mm]	1 - 25.4
Tube length with mandrel	[mm]	2670
Bending radius	[mm]	120
Bending accuracy	[°]	+/- 0,1
The accuracy of the positioning movements	[°]	+/- 0,1
Accuracy of the feed	[°]	+/- 0,1
Die radius difference	[mm]	38
Dimensions	[mm]	3380x 950x 1200
Weight	[kg]	1700
