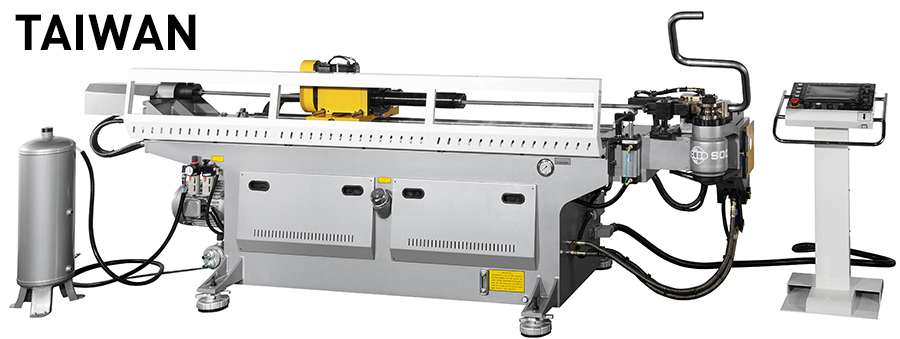

SOCO SB-39 AUTO pipe bender
221 127,90 zł net
No rating
12 months of warranty
SOCO SB-39 AUTO hydraulic pipe bender equipped with a PLC controller with a touch screen. Operation is simple and intuitive, and the bending accuracy is very high.
Quantity
Add to cart
SOCO SB-39 AUTO hydraulic pipe bender equipped with a PLC controller with a touch screen. Operation is simple and intuitive, and the bending accuracy is very high.
Main features of the device:
- PLC controller with touch screen
- Entering data in the YBC and XYZ system
- Possibility to convert data from XYZ to YBC
- The operator can choose from 8 different sequences of simultaneous axes movements
- Possibility to save up to 88 file configurations
- Possibility to program up to 15 bends in one program
- The machine is equipped with one bending level
- Y and B axes (travel, rotation) controlled by servomotors with the possibility of programming the speed of each axis and the C axis controlled hydraulically
- The machine is equipped with die holders: supporting, clamping and smoothing
- The machine has two feed functions: a positive feed function and a multiple feed function
- Central lubrication system for moving components and automatic spindle lubrication system
- The control panel is placed on a movable base, enabling the most favorable positioning for the operator
Standard equipment:
- Standard stem mounting kit
- Hydraulic pin retraction system
- Automatic pin lubrication system
- Hydraulic support matrix system
- PLC controller with touch screen
- SOCO software installed on the machine
- Console
- Instructions in English
- CE Declaration of Conformity
| Technical data | Unit | Value |
|---|---|---|
| Diameter of the bent pipe (steel) | [mm] | 2 - 38.1 |
| Diameter of the bent pipe (stainless steel) | [mm] | 1.4 - 38.1 |
| Single travel | [mm] | 1800 |
| Bending radius | [mm] | 200 |
| The length of the pin | [mm] | 2650 |
| Bending angle | [°] | 190 |
| Bending speed | [°/sec] | 70 |
| Feed speed | [mm/s] | 700 |
| Bending accuracy | [°] | +/- 0,2 |
| The accuracy of the positioning movements | [°] | +/- 0,15 |
| Accuracy of the feed | [°] | +/- 0,25 |
| Main engine power | [kW] | 5 |
| Number of bends per pipe | [-] | 15 |
| Pipe rotation speed | [°/s] | 120 |
| Weight | [kg] | 1370 |
