Pipe and section bending machines - with mandrel

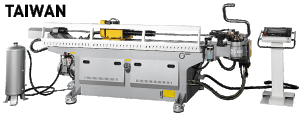

CNC pipe bender SOCO A SB-39x4A-1S (2S)

338 100,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

SOCO A series hydraulic bending machines equipped with CNC control and servo motor drives for 3-4 axes, with one, two or three stacks of dies. The unique DGT bending head drive system, using a gear transmission and a servo motor drive, ensures even greater bending efficiency and stability. Operation is simple and intuitive, and the bending accuracy is very high.

Quantity
Add to cart

SOCO A series hydraulic bending machines equipped with CNC control and servo motor drives for 3-4 axes, with one, two or three stacks of dies. The unique DGT bending head drive system, using a gear transmission and a servo motor drive, ensures even greater bending efficiency and stability. Operation is simple and intuitive, and the bending accuracy is very high.
Main features of the device:
  • Unique head design – DGT system
  • CNC controller with touch screen
  • The tube carriage is fed using a toothed rack and a servomotor
  • Possibility to program two speeds of pin retraction
  • Central lubrication system for guides
  • 2 speeds of early stem retraction
  • Entering data in the YBC and XYZ system
  • Possibility to convert data from XYZ to YBC
  • bending arm equipped with an additional actuator supporting the bending process - booster
  • Electrical system equipped with a cooling system
  • Automatic lubrication system for the mandrel increases its life as well as the quality and accuracy of bending
  • Smoothing die support with lubrication
  • The control panel is placed on a movable base, enabling the most favorable positioning for the operator

Main control features:
  • Operating system running under Windows
  • Mitsubishi servomotors that feed and rotate the pipe
  • Possibility to save programs on hard disk or FDD
  • Ability to store 30,000 files (up to 110 bends per pipe)
  • Possibility of 3D visualization of the bent model
  • Possibility to convert from YBC to XYZ and vice versa
  • Possibility of freely rotating the element on the display
  • Possibility to download monthly production
Optional software:
  • Ability to read AutoCAD files
  • Possibility of connecting to a measuring system and reading current machine parameters
  • Standard equipment of SOCO A pipe benders:
  • Early pin retraction system
  • Automatic pin lubrication system
  • Central lubrication system
  • Bending die support system
  • Portable control panel
  • User manual

Technical data Unit Value
Diameter of the bent pipe (steel) [mm] 3.17 - 38.1
Diameter of the bent pipe (stainless steel) [mm] 2.2 - 38.1
Tube length with mandrel [mm] 3000/3850
Bending radius [mm] 180
Bending accuracy [°] +/- 0,1
The accuracy of the positioning movements [°] +/- 0,1
Accuracy of the feed [°] +/- 0,1
Die radius difference [mm] 50
Dimensions [mm] 4430x 1580x 1270 / 4800x1340x1280
Weight [kg] 2850
