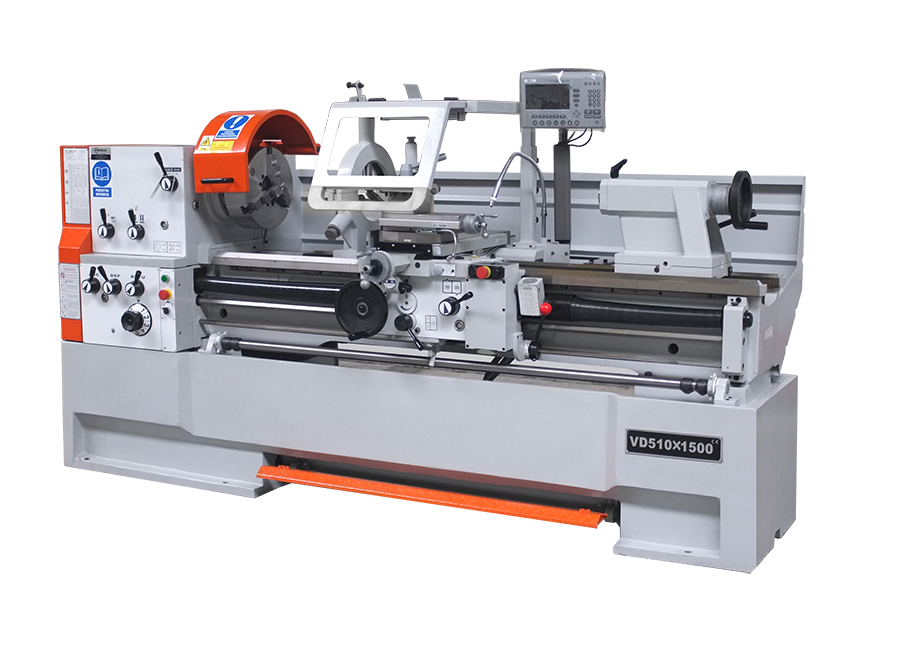

UNIVERSAL LATHE EUROMET VD510X1500
63 000,00 zł net
No rating
12 months of warranty
The EUROMET VD510X1500 universal lathe is designed to work in production plants, tool shops and maintenance departments. The distinguishing features of the construction are: one-element base made of cast iron, hardened bed guides, heat-treated spindle tip.
The EUROMET VD510X1500 universal lathe is designed to work in production plants, tool shops and maintenance departments. The distinguishing features of the construction are: one-element base made of cast iron, hardened bed guides, heat-treated spindle tip.
The lathe enables the processing of a full range of threads, it also has a feed lock: by a screw or shaft, a removable bridge, infinitely adjustable spindle revolutions with the possibility of setting a constant cutting speed.
An innovative solution in the VD series lathes is the use of an inverter for smooth adjustment of the spindle speed (2 ranges; low and high revolutions) cooperating with a controller that allows you to program a constant cutting speed.
Standard equipment:
- 3-jaw 250mm lathe chuck
- 4-jaw 300mm lathe chuck
- driving disc
- steady rest
- follow rest
- thread indicator
- reduction sleeve MT 6/4
- fixed tusk MT 4
- digital readouts for 3 axes
- constant cutting speed controller
- stepless adjustment of the spindle speed
- cooling system
- ruler for cones
- lighting
- User manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- quick-change tool holder
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 510 |
| Turning diameter over cross slide | [mm] | 300 |
| Turning diameter in the bridge | [mm] | 738 |
| Turning length | [mm] | 1500 |
| Bed width | [mm] | 350 |
| Spindle flight | [mm] | 80 |
| Turning length in the bridge | [mm] | 245 |
| Upper sled travel | [mm] | 130 |
| Spindle tip | [-] | D1-8 |
| Spindle seat | [-] | Morse 7 |
| Spindle speed range | [rpm/min] | 25 - 1600 |
| Maximum tool dimensions | [mm] | 25x25 |
| Longitudinal feed range | [mm/rpm] | 0,059 - 1,646 |
| Przesuw poprzeczny | [mm] | 326 |
| Cross travel range | [mm/rpm] | 0,02 - 0,573 |
| Metric thread | [mm] | 0,2 - 14 |
| Inch thread | [-] | 2-112 T.P.I. |
| Modular thread | [-] | 0,1-7 M.P. |
| Thread D.P. | [-] | 4-112 D.P. |
| Tailstock sleeve diameter | [mm] | 75 |
| Extend the tailstock quill | [mm] | 180 |
| Tailstock sleeve tip | [-] | No.5 Morse |
| Engine power | [kW] | 7,5 |
| Coolant pump power | [kW] | 0,1 |
| Top carriage travel | [mm] | 170 |
| Dimensions | [mm] | 2900x1120x1430 |
| Weight | [kg] | 2335 |
